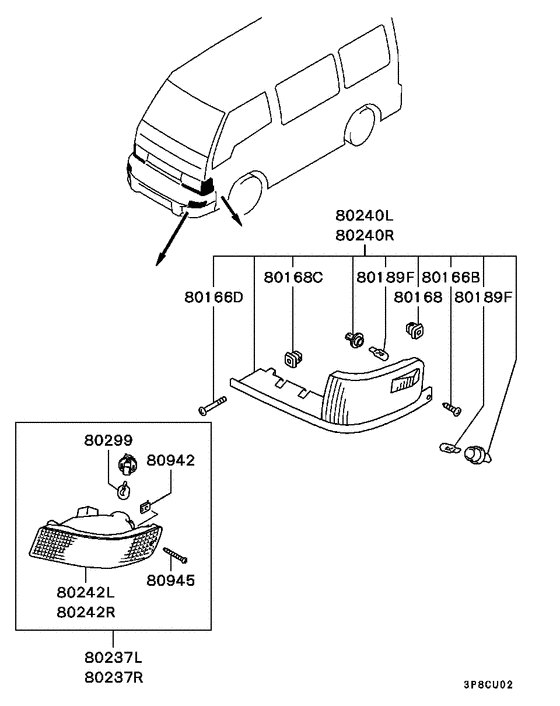

Front exterior lamp (FOR PROJECTOR HEADLAMP..1BULB) Diagram Mitsubishi L300
- Year
- 1997 - 2008
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN),5FM/T TURKEY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80166B
|
80166B
MF456581 SCREW, FR LAMPTapping,4x25 |
MF456581 |
US $2.87 |
||
|
80166B
|
80166B
MF456701
SCREW,FR LAMP
|
MF456701 |
— | ||
|
80166B
|
80166B
MS450943 SCREW, FR BUMPERTapping,4x30 |
MS450943 |
US $2.37 |
||
|
80166D
|
80166D
MB929949 SCREW, FR LAMPTapping |
MB929949 |
US $3.42 |
||
|
80168
|
80168
MB083120 GROMMET, FR END GARNISHScrew,3.7 |
MB083120 |
US $4.38 |
||
|
80168C
|
80168C
MB929948 GROMMET, FR LAMP |
MB929948 |
US $2.52 |
||
|
80189F
|
80189F
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80237L
|
80237L
MB831287
LAMP KIT,TURN SIGNAL,FR LH
|
MB831287 |
— | ||
|
80237L
|
80237L
MR496653
LAMP KIT,TURN SIGNAL,FR LH
|
MR496653 |
— | ||
|
80237R
|
80237R
MB831288
LAMP KIT,TURN SIGNAL,FR RH
|
MB831288 |
— | ||
|
80237R
|
80237R
MR496654 LAMP KIT,TURN SIGNAL,FR RH |
MR496654 |
US $69.63 |
||
|
80240L
|
80240L
8310A001
LAMP KIT,COMBINATION,FR LH
|
8310A001 |
— | ||
|
80240L
|
80240L
8310A019
LAMP KIT,COMBINATION,FR LH
|
8310A019 |
— | ||
|
80240L
|
80240L
MB527299
LAMP KIT,COMBINATION,FR LH
|
MB527299 |
— | ||
|
80240L
|
80240L
MN161801
LAMP KIT,COMBINATION,FR LH
|
MN161801 |
— | ||
|
80240L
|
80240L
MR508353 LAMP KIT,COMBINATION,FR LH |
MR508353 |
US $73.52 |
||
|
80240L
|
80240L
MR508355
LAMP KIT,COMBINATION,FR LH
|
MR508355 |
— | ||
|
80240L
|
80240L
MR508357
LAMP KIT,COMBINATION,FR LH
|
MR508357 |
— | ||
|
80240L
|
80240L
MR508359
LAMP KIT,COMBINATION,FR LH
|
MR508359 |
— | ||
|
80240L
|
80240L
MR508361
LAMP KIT,COMBINATION,FR LH
|
MR508361 |
— | ||
|
80240R
|
80240R
8310A002
LAMP KIT,COMBINATION,FR RH
|
8310A002 |
— | ||
|
80240R
|
80240R
8310A020
LAMP KIT,COMBINATION,FR RH
|
8310A020 |
— | ||
|
80240R
|
80240R
MB527300
LAMP KIT,COMBINATION,FR RH
|
MB527300 |
— | ||
|
80240R
|
80240R
MN161802
LAMP KIT,COMBINATION,FR RH
|
MN161802 |
— | ||
|
80240R
|
80240R
MR508354 LAMP KIT,COMBINATION,FR RH |
MR508354 |
US $73.52 |
||
|
80240R
|
80240R
MR508356
LAMP KIT,COMBINATION,FR RH
|
MR508356 |
— | ||
|
80240R
|
80240R
MR508358
LAMP KIT,COMBINATION,FR RH
|
MR508358 |
— | ||
|
80240R
|
80240R
MR508360
LAMP KIT,COMBINATION,FR RH
|
MR508360 |
— | ||
|
80240R
|
80240R
MR508362
LAMP KIT,COMBINATION,FR RH
|
MR508362 |
— | ||
|
80242L
|
80242L
MB848714
LAMP UNIT,SIDE TURN SIGNAL,FR LH
|
MB848714 |
— | ||
|
80242L
|
80242L
MR482677
LAMP UNIT,SIDE TURN SIGNAL,FR LH
|
MR482677 |
— | ||
|
80242R
|
80242R
MB848715
LAMP UNIT,SIDE TURN SIGNAL,FR RH
|
MB848715 |
— | ||
|
80242R
|
80242R
MR482678
LAMP UNIT,SIDE TURN SIGNAL,FR RH
|
MR482678 |
— | ||
|
80299
|
80299
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80942
|
80942
MB530249 NUT, RR LAMPSpring,4 |
MB530249 |
US $2.07 |
||
|
80942
|
80942
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80945
|
80945
MF453079 SCREW, FR FENDERTapping,4x16 |
MF453079 |
from US $1.52 |
||
|
80945
|
80945
MR388228 SCREW, FR TURN SIGNAL LAMPTapping,4x35 |
MR388228 |
US $1.63 |
