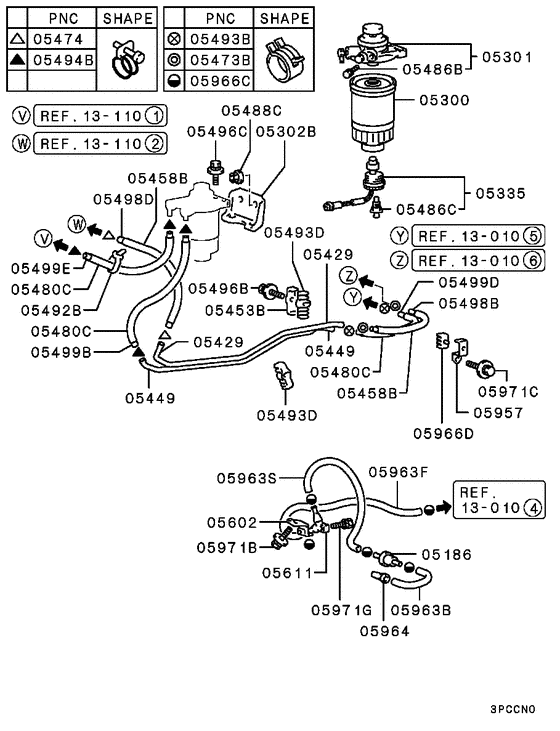

Fuel line & vapor gas control (FUEL FILTER (W/O HEATER)) Diagram Mitsubishi L300
- Year
- 1997 - 2008
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN),5FM/T TURKEY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05186
|
05186
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05300
|
05300
MB220900 FUEL FILTER |
MB220900 |
from US $52.40 |
||
|
05301
|
05301
MB554592 BODY, FUEL FILTER |
MB554592 |
US $114.23 |
||
|
05302B
|
05302B
MB248258 BRACKET, FUEL FILTER |
MB248258 |
US $18.50 |
||
|
05335
|
05335
MB554325 SENSOR, FUEL FILTER |
MB554325 |
US $90.97 |
||
|
05429
|
05429
MB433005 PIPE, FUEL RETURN |
MB433005 |
US $15.54 |
||
|
05429
|
05429
MR431961 PIPE, FUEL RETURN |
MR431961 |
US $11.84 |
||
|
05449
|
05449
MB433021 PIPE, FUEL LINE |
MB433021 |
US $19.24 |
||
|
05449
|
05449
MR431960 PIPE, FUEL LINE |
MR431960 |
US $14.36 |
||
|
05453B
|
05453B
MB554176 SUPPORT, FUEL LINE |
MB554176 |
US $10.40 |
||
|
05458B
|
05458B
MB044005
TUBE, FUEL TANK
|
MB044005 |
— | ||
| replacement | |||||
|
05458B
|
05458B
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05458B
|
05458B
MB044010 TUBE, FUEL RETURN LINESoft vinyl,14.5x320 |
MB044010 |
US $3.85 |
||
|
05473B
|
05473B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05474
|
05474
MS660004 CLAMP, FUEL TANK13 |
MS660004 |
US $2.52 |
||
|
05480C
|
05480C
MB032792
TUBE, FUEL TANK
|
MB032792 |
— | ||
| replacement | |||||
|
05480C
|
05480C
MB220933 TUBE, FUEL LINESoft vinyl,16x560 |
MB220933 |
from US $3.30 |
||
|
05480C
|
05480C
MB181536
TUBE, FUEL RETURN LINE
|
MB181536 |
— | ||
|
05486B
|
05486B
MB247423 PLUG, FUEL LINEBolt |
MB247423 |
US $8.58 |
||
|
05486C
|
05486C
MB248214 PLUG, FUEL LINE |
MB248214 |
US $8.58 |
||
|
05488C
|
05488C
MB288461 NUT, ENG OIL COOLER LINEFlange self locking,8 |
MB288461 |
US $2.37 |
||
|
05492B
|
05492B
MB084080 BAND, HOIST CONTROL LINKL=129.5 |
MB084080 |
US $2.96 |
||
|
05493B
|
05493B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05493D
|
05493D
MB316724 CLIP, SPEEDOMETER CABLE6.2x4.5x4.5x7.8x6.2 |
MB316724 |
US $3.15 |
||
|
05494B
|
05494B
MS661006 CLAMP, ENG SPEED CONTROL EQUIPD=12 |
MS661006 |
US $3.42 |
||
|
05496B
|
05496B
MS240050
BOLT, FUEL LINE
|
MS240050 |
— | ||
|
05496B
|
05496B
MS240113 BOLT, RR SEATWasher assembled,6x40 |
MS240113 |
US $1.92 |
||
|
05496C
|
05496C
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.84 |
||
|
05498B
|
05498B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05498D
|
05498D
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05499B
|
05499B
MS603111 TUBE, FUEL RETURN LINERubber,8x2000 |
MS603111 |
from US $22.76 |
||
|
05499D
|
05499D
MS603111 TUBE, FUEL RETURN LINERubber,8x2000 |
MS603111 |
from US $22.76 |
||
|
05499E
|
05499E
MS603111 TUBE, FUEL RETURN LINERubber,8x2000 |
MS603111 |
from US $22.76 |
||
|
05602
|
05602
MB504930 BRACKET, FUEL CHECK VALVE |
MB504930 |
US $2.96 |
||
|
05611
|
05611
MB400815 CHECK VALVE, FUEL VAPOR CONTROL |
MB400815 |
from US $13.26 |
||
|
05957
|
05957
MB554177 STAY, FUEL VAPOR CONTROL LINE |
MB554177 |
US $8.14 |
||
|
05963B
|
05963B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963F
|
05963F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963S
|
05963S
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05964
|
05964
MB129659 GROMMET, FUEL TANK16 |
MB129659 |
US $3.26 |
||
|
05966C
|
05966C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966D
|
05966D
MB329945 CLIP, FUEL LINE |
MB329945 |
US $2.52 |
||
|
05971B
|
05971B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
05971C
|
05971C
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $0.84 |
||
|
05971C
|
05971C
MS241160 BOLT, CLUTCH M/CYLWasher assembled,6x16 |
MS241160 |
US $1.48 |
||
|
05971G
|
05971G
MS240083 BOLT, FUEL RETURN LINEWasher assembled,6x25 |
MS240083 |
US $2.33 |
||
|
05971G
|
05971G
MS240124 BOLT, FUEL LINEWasher assembled,6x30 |
MS240124 |
US $2.07 |
||
|
