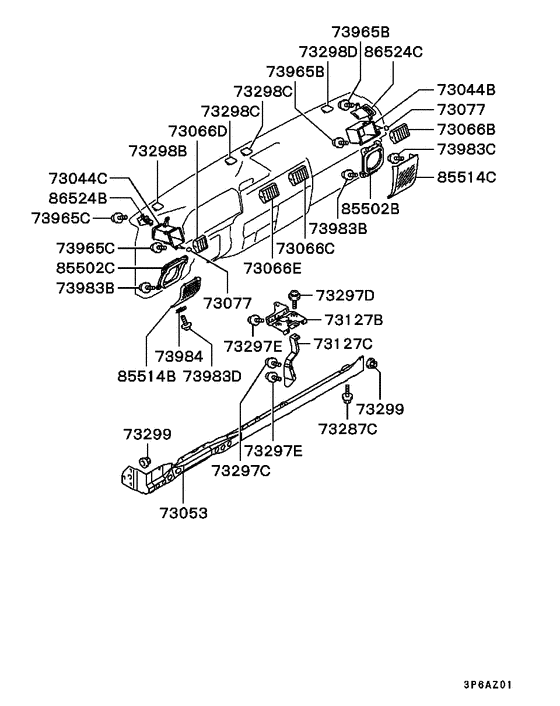

I/panel & related parts (OUTLET,STAY 9909.1-) Diagram Mitsubishi L300
- Year
- 1997 - 2008
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN),5FM/T TURKEY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73044B
|
73044B
MB423343
DUCT,INSTRUMENT PANEL AIR OUTLET SIDE
|
MB423343 |
— | ||
|
73044C
|
73044C
MB423351
DUCT,INSTRUMENT PANEL AIR OUTLET SIDE
|
MB423351 |
— | ||
|
73053
|
73053
MB637176
FRAME,INSTRUMENT PANEL
|
MB637176 |
— | ||
|
73053
|
73053
MR496575
FRAME,INSTRUMENT PANEL
|
MR496575 |
— | ||
|
73066B
|
73066B
MB327768 GRILLE, INSTRUMENT PANEL AIR OUTLET SHUT |
MB327768 |
US $13.68 |
||
|
73066C
|
73066C
MB327767 GRILLE, INSTRUMENT PANEL AIR OUTLET SHUT |
MB327767 |
US $12.88 |
||
|
73066C
|
73066C
MB327768 GRILLE, INSTRUMENT PANEL AIR OUTLET SHUT |
MB327768 |
US $13.68 |
||
|
73066C
|
73066C
MR550713
GRILLE,INSTRUMENT PANEL AIR OUTLET SHUT
|
MR550713 |
— | ||
|
73066D
|
73066D
MB424628
AIR OUTLET,INSTRUMENT PANEL SIDE,RH
|
MB424628 |
— | ||
|
73066D
|
73066D
MR550471
GRILLE,INSTRUMENT PANEL AIR OUTLET SHUT
|
MR550471 |
— | ||
|
73066E
|
73066E
MB327767 GRILLE, INSTRUMENT PANEL AIR OUTLET SHUT |
MB327767 |
US $12.88 |
||
|
73066E
|
73066E
MR550712
GRILLE,INSTRUMENT PANEL AIR OUTLET SHUT
|
MR550712 |
— | ||
|
73077
|
73077
MB424944 KNOB, INSTRUMENT PANEL CTR AIR OUTLET |
MB424944 |
from US $0.92 |
||
|
73127B
|
73127B
MB424963
REINFORCEMENT,INSTRUMENT PANEL,CTR
|
MB424963 |
— | ||
|
73127C
|
73127C
MB424979
REINFORCEMENT,INSTRUMENT PANEL,CTR
|
MB424979 |
— | ||
|
73127C
|
73127C
MR471279
REINFORCEMENT,INSTRUMENT PANEL,CTR
|
MR471279 |
— | ||
|
73287C
|
73287C
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
73287C
|
73287C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
73297C
|
73297C
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73297C
|
73297C
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.16 |
||
|
73297D
|
73297D
MF351490 SCREW, STEERING COLUMNWasher assembled,6x16 |
MF351490 |
US $2.07 |
||
|
73297E
|
73297E
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.16 |
||
|
73298B
|
73298B
MB701629 PLUG, INSTRUMENT PANEL |
MB701629 |
US $3.55 |
||
|
73298B
|
73298B
MB751282 PLUG, INSTRUMENT PANEL |
MB751282 |
US $3.55 |
||
|
73298B
|
73298B
MB768020 PLUG, INSTRUMENT PANEL |
MB768020 |
US $4.79 |
||
|
73298B
|
73298B
MR606607
PLUG,INSTRUMENT PANEL
|
MR606607 |
— | ||
|
73298C
|
73298C
MB701626 PLUG, INSTRUMENT PANEL |
MB701626 |
US $3.55 |
||
|
73298C
|
73298C
MB751281 PLUG, INSTRUMENT PANEL |
MB751281 |
US $3.55 |
||
|
73298C
|
73298C
MB768019 PLUG, INSTRUMENT PANEL |
MB768019 |
US $4.79 |
||
|
73298C
|
73298C
MR606606
PLUG,INSTRUMENT PANEL
|
MR606606 |
— | ||
|
73298D
|
73298D
MB701632 PLUG, INSTRUMENT PANEL |
MB701632 |
US $3.55 |
||
|
73298D
|
73298D
MB751283 PLUG, INSTRUMENT PANEL |
MB751283 |
US $3.55 |
||
|
73298D
|
73298D
MB768021 PLUG, INSTRUMENT PANEL |
MB768021 |
US $4.79 |
||
|
73298D
|
73298D
MR606608
PLUG,INSTRUMENT PANEL
|
MR606608 |
— | ||
|
73299
|
73299
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
73299
|
73299
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
73965B
|
73965B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73965C
|
73965C
MB409436 SCREW, STEERING COLUMN COVERTapping,4x12 |
MB409436 |
US $4.10 |
||
|
73983B
|
73983B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73983C
|
73983C
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.16 |
||
|
73983C
|
73983C
MF453687 SCREW, INSTRUMENT PANELTapping,5x16 |
MF453687 |
US $2.60 |
||
|
73983C
|
73983C
MF453807 SCREW, HEATER DUCTTapping,5x16 |
MF453807 |
US $1.04 |
||
|
73983D
|
73983D
MF453687 SCREW, INSTRUMENT PANELTapping,5x16 |
MF453687 |
US $2.60 |
||
|
73983D
|
73983D
MF453807 SCREW, HEATER DUCTTapping,5x16 |
MF453807 |
US $1.04 |
||
|
73984
|
73984
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.72 |
||
|
85502B
|
85502B
MB423340 BRACKET, FR SPEAKER |
MB423340 |
US $24.42 |
||
|
85502C
|
85502C
MB424890 BRACKET, FR SPEAKER |
MB424890 |
US $45.88 |
||
|
85514B
|
85514B
MR606604
PANEL,INSTRUMENT SPEAKER
|
MR606604 |
— | ||
|
85514C
|
85514C
MR148686
PANEL,INSTRUMENT SPEAKER
|
MR148686 |
— | ||
|
86524B
|
86524B
MB772315
GRILLE,SIDE DEMISTER
|
MB772315 |
— | ||
|
86524B
|
86524B
MR609863
GRILLE,SIDE DEMISTER
|
MR609863 |
— | ||
|
86524C
|
86524C
MB772314
GRILLE,SIDE DEMISTER
|
MB772314 |
— | ||
|
86524C
|
86524C
MR609882
GRILLE,SIDE DEMISTER
|
MR609882 |
— |
