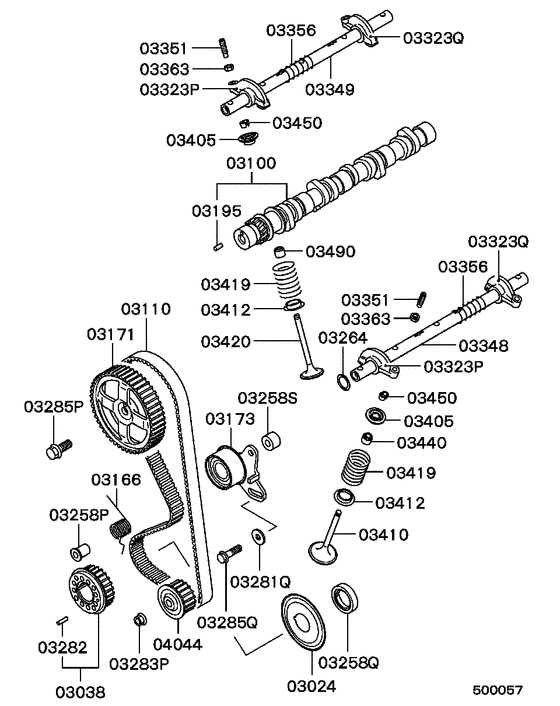

Camshaft & valve (RHD) Diagram Mitsubishi L300
- Year
- 1990 - 1992
- Sales region
- EUR
- Note
- XL(3DOOR),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03024
|
03024
MD040751
FLANGE, CRANKSHAFT SPROCKET
|
MD040751 |
— | ||
|
03024
|
03024
MD189520 FLANGE, CRANKSHAFT SPROCKET |
MD189520 |
from US $10.66 |
||
|
03038
|
03038
MD074433 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE |
MD074433 |
US $80.71 |
||
|
03038
|
03038
MD189517 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE |
MD189517 |
US $81.40 |
||
|
03038
|
03038
MD326852 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE |
MD326852 |
from US $40.37 |
||
|
03100
|
03100
MD040760 CAMSHAFT |
MD040760 |
US $372.74 |
||
|
03100
|
03100
MD073744 CAMSHAFT |
MD073744 |
US $573.66 |
||
|
03100
|
03100
MD193040
CAMSHAFT
|
MD193040 |
— | ||
|
03110
|
03110
MD113790
BELT, VALVE TIMING
|
MD113790 |
— | ||
| replacement | |||||
|
03110
|
03110
MD197136
BELT, VALVE TIMING
|
MD197136 |
— | ||
|
03110
|
03110
MD140228 BELT, VALVE TIMING |
MD140228 |
US $66.90 |
||
| replacement | |||||
|
03110
|
03110
MD197136
BELT, VALVE TIMING
|
MD197136 |
— | ||
|
03110
|
03110
MD182293 BELT, VALVE TIMING |
MD182293 |
US $52.26 |
||
| replacement | |||||
|
03110
|
03110
MD197141 BELT, VALVE TIMING |
MD197141 |
US $101.92 |
||
|
03110
|
03110
MD189521 BELT, VALVE TIMING |
MD189521 |
from US $56.08 |
||
|
03166
|
03166
MD041925 SPRING, TIMING BELT TENSIONER |
MD041925 |
US $4.92 |
||
|
03171
|
03171
MD011482 SPROCKET, CAMSHAFT |
MD011482 |
US $52.54 |
||
|
03171
|
03171
MD189515 SPROCKET, CAMSHAFT |
MD189515 |
US $44.40 |
||
|
03171
|
03171
MD310812 SPROCKET, CAMSHAFT |
MD310812 |
from US $49.45 |
||
|
03173
|
03173
MD011536 TENSIONER, TIMING BELT |
MD011536 |
from US $51.06 |
||
|
03173
|
03173
MD192731 TENSIONER, TIMING BELT |
MD192731 |
from US $126.30 |
||
|
03195
|
03195
MD158443 PIN, CAMSHAFTDowel,6x14 |
MD158443 |
from US $3.57 |
||
|
03195
|
03195
MD194553 PIN, CAMSHAFTDowel,6x14 |
MD194553 |
US $2.81 |
||
|
03195
|
03195
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.42 |
||
|
03258P
|
03258P
MD011535 SPACER, TIMING BELT TRAIN24.5 |
MD011535 |
US $8.29 |
||
|
03258P
|
03258P
MD107366 SPACER, TIMING BELT TRAIN24.5 |
MD107366 |
US $6.57 |
||
|
03258Q
|
03258Q
MD099099
SPACER,TIMING BELT TRAIN
|
MD099099 |
— | ||
|
03258Q
|
03258Q
MD128107 SPACER, TIMING BELT TRAIN9 |
MD128107 |
from US $6.96 |
||
|
03258S
|
03258S
MD011534
SPACER, TIMING BELT TRAIN
|
MD011534 |
— | ||
|
03264
|
03264
MD000964 WASHER, VALVE GEAR TRAINWaved,28 |
MD000964 |
US $4.65 |
||
|
03281Q
|
03281Q
MF450155 WASHER, ENG RR MOUNTINGPlain,10 |
MF450155 |
from US $1.01 |
||
|
03282
|
03282
MF472571 SPRING PIN, TIMING BELT TRAIN5x20 |
MF472571 |
from US $1.15 |
||
|
03283P
|
03283P
MD095237 NUT, TIMING BELT TRAINFlange,10 |
MD095237 |
US $4.38 |
||
|
03285P
|
03285P
MD301352 BOLT, TIMING BELT TRAINFlange,12x30 |
MD301352 |
from US $2.32 |
||
|
03285P
|
03285P
MF140285 BOLT, ENG RR PLATEFlange,12x30 |
MF140285 |
from US $1.01 |
||
|
03285Q
|
03285Q
MD129350 BOLT, TIMING BELT TRAINFlange,8x51 |
MD129350 |
from US $2.48 |
||
|
03285Q
|
03285Q
MF140264 BOLT, ENG RR PLATEFlange,10x35 |
MF140264 |
US $3.28 |
||
|
03323P
|
03323P
MD023226 ROCKER ARM, INLET & EXHAUST VALVE |
MD023226 |
US $34.20 |
||
|
03323P
|
03323P
MD072118 ROCKER ARM, INLET & EXHAUST VALVE |
MD072118 |
US $45.88 |
||
|
03323Q
|
03323Q
MD040781 ROCKER ARM, INLET & EXHAUST VALVE |
MD040781 |
US $30.78 |
||
|
03323Q
|
03323Q
MD072119 ROCKER ARM, INLET & EXHAUST VALVE |
MD072119 |
US $45.88 |
||
|
03348
|
03348
MD015324 SHAFT, INLET VALVE ROCKER ARM |
MD015324 |
US $65.12 |
||
|
03348
|
03348
MD040782
SHAFT, INLET VALVE ROCKER ARM
|
MD040782 |
— | ||
|
03348
|
03348
MD187818 SHAFT, INLET VALVE ROCKER ARM |
MD187818 |
from US $59.20 |
||
|
03349
|
03349
MD015325 SHAFT, EXHAUST VALVE ROCKER ARM |
MD015325 |
US $65.12 |
||
|
03349
|
03349
MD040784
SHAFT, EXHAUST VALVE ROCKER ARM
|
MD040784 |
— | ||
|
03349
|
03349
MD187819 SHAFT, EXHAUST VALVE ROCKER ARM |
MD187819 |
from US $58.05 |
||
|
03351
|
03351
MD065628
ADJUSTING SCREW, ROCKER ARM
|
MD065628 |
— | ||
|
03356
|
03356
MD000962 SPRING, ROCKER SHAFT |
MD000962 |
US $2.37 |
||
|
03356
|
03356
MD166768 SPRING, ROCKER SHAFT |
MD166768 |
from US $4.33 |
||
|
03363
|
03363
MD000961 NUT, ROCKER ARM ADJUSTING SCREW LOCKJam,8 |
MD000961 |
from US $0.80 |
||
|
03405
|
03405
MD066498 RETAINER, VALVE SPRING |
MD066498 |
from US $1.68 |
||
|
03405
|
03405
MD159209 RETAINER, VALVE SPRING |
MD159209 |
from US $4.35 |
||
|
03410
|
03410
MD070691 VALVE, INLET |
MD070691 |
US $31.08 |
||
|
03410
|
03410
MD159502 VALVE, INLET |
MD159502 |
US $25.90 |
||
|
03412
|
03412
MD000507 SEAT, VALVE SPRING |
MD000507 |
from US $1.40 |
||
|
03412
|
03412
MD151527 SEAT, VALVE SPRING |
MD151527 |
from US $1.79 |
||
|
03419
|
03419
MD022591 SPRING, INLET & EXHAUST VALVE |
MD022591 |
US $5.62 |
||
|
03419
|
03419
MD073398 SPRING, INLET & EXHAUST VALVE |
MD073398 |
from US $5.92 |
||
|
03419
|
03419
MD314078 SPRING, INLET & EXHAUST VALVE |
MD314078 |
US $7.40 |
||
|
03419
|
03419
MN137027 SPRING, EXHAUST VALVE |
MN137027 |
US $4.88 |
||
|
03420
|
03420
MD070694 Valve,exhaust35.0 |
MD070694 |
from US $39.96 |
||
|
03420
|
03420
MD199193 Valve,exhaust29.0 |
MD199193 |
US $35.52 |
||
|
03440
|
03440
MD000508 SEAL, VALVE STEMRubber |
MD000508 |
from US $6.14 |
||
|
03440
|
03440
MD197467 SEAL, VALVE STEMRubber |
MD197467 |
from US $4.78 |
||
|
03450
|
03450
MD061895 LOCK, VALVE SPRING RETAINER |
MD061895 |
from US $2.24 |
||
|
03450
|
03450
MD151369 LOCK, VALVE SPRING RETAINER |
MD151369 |
from US $0.82 |
||
|
03490
|
03490
MD070695 SEAL, VALVE STEMRubber |
MD070695 |
from US $7.27 |
||
|
03490
|
03490
MD184303 SEAL, VALVE STEMRubber |
MD184303 |
from US $4.95 |
||
|
04044
|
04044
MD096389
SPROCKET, ENG OIL PUMP
|
MD096389 |
— | ||
|
04044
|
04044
MD122692
SPROCKET, ENG OIL PUMP
|
MD122692 |
— | ||
|
04044
|
04044
MD135005 SPROCKET, ENG OIL PUMP |
MD135005 |
from US $49.94 |
||
|
04044
|
04044
MD189519 SPROCKET, ENG OIL PUMP |
MD189519 |
US $62.16 |
||
