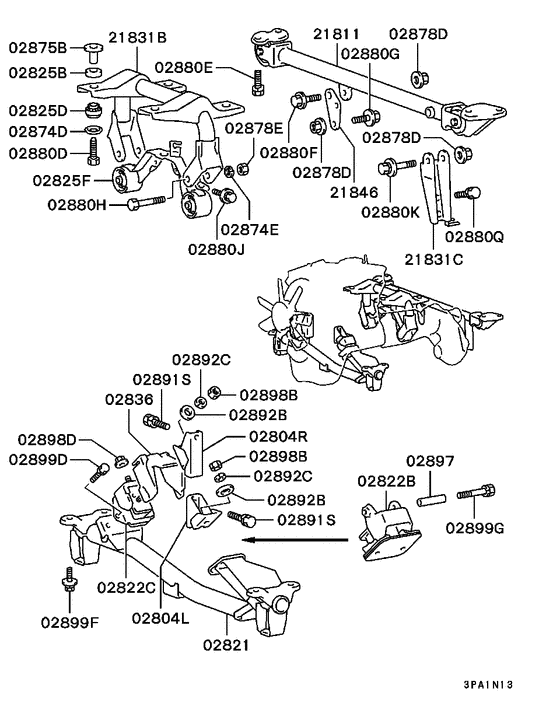

Engine mounting & support (-8711.3) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD113047 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD113047 |
US $64.38 |
||
|
02804L
|
02804L
MD188362 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD188362 |
US $62.16 |
||
|
02804R
|
02804R
MD113046 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD113046 |
US $49.58 |
||
|
02821
|
02821
MB436060
CROSSMEMBER, ENG MOUNTING
|
MB436060 |
— | ||
|
02822B
|
02822B
MB436789 CUSHION, CROSSMEMBER ENG MOUNTING |
MB436789 |
from US $96.20 |
||
|
02822C
|
02822C
MB436584 CUSHION, CROSSMEMBER ENG MOUNTING |
MB436584 |
from US $99.18 |
||
|
02825B
|
02825B
MB436344 CUSHION, ENG RR MOUNTING |
MB436344 |
US $3.40 |
||
|
02825B
|
02825B
MB581094 CUSHION, ENG RR MOUNTING |
MB581094 |
US $2.07 |
||
|
02825D
|
02825D
MB436653 CUSHION, ENG RR MOUNTING |
MB436653 |
US $5.33 |
||
|
02825F
|
02825F
MB436458
CUSHION, ENG RR MOUNTING
|
MB436458 |
— | ||
|
02836
|
02836
MB436790 PROTECTOR, ENG FR MOUNTING HEAT |
MB436790 |
US $8.14 |
||
|
02874D
|
02874D
MB436654 WASHER, ENG RR MOUNTINGCup,10.4 |
MB436654 |
US $6.81 |
||
|
02874E
|
02874E
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02875B
|
02875B
MB436450 SPACER, ENG RR MOUNTING10.4x28 |
MB436450 |
US $8.14 |
||
|
02875B
|
02875B
MB581093 SPACER, ENG RR MOUNTING10.4x28 |
MB581093 |
US $3.70 |
||
|
02878D
|
02878D
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
02878E
|
02878E
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
02880D
|
02880D
MS240183 BOLT, ENG RR MOUNTINGWasher assembled,10x55 |
MS240183 |
US $2.81 |
||
|
02880E
|
02880E
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02880F
|
02880F
MF140260 BOLT, ROCKER COVERFlange,10x25 |
MF140260 |
from US $1.23 |
||
|
02880G
|
02880G
MS240249 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MS240249 |
US $2.37 |
||
|
02880H
|
02880H
MU101007 BOLT, ENG RR MOUNTINGCone point,12x100 |
MU101007 |
US $6.16 |
||
|
02880J
|
02880J
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
02880K
|
02880K
MF140272 BOLT, ENG RR MOUNTINGFlange,10x70 |
MF140272 |
from US $3.82 |
||
|
02880Q
|
02880Q
MF240078 BOLT, ENG RR MOUNTINGWasher assembled,10x16 |
MF240078 |
from US $0.96 |
||
|
02891S
|
02891S
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02891S
|
02891S
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02892B
|
02892B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
02892C
|
02892C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02897
|
02897
MB436792 PIPE, ENG FR MOUNTING |
MB436792 |
US $7.10 |
||
|
02898B
|
02898B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
02898D
|
02898D
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
02899D
|
02899D
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02899D
|
02899D
MF244881 BOLT, EXHAUST PIPEWasher assembled,10x28 |
MF244881 |
US $1.50 |
||
|
02899F
|
02899F
MU240013 BOLT, ENG FR MOUNTINGWasher assembled,10x34 |
MU240013 |
US $3.85 |
||
|
02899G
|
02899G
MF241324
BOLT, ENG FR MOUNTING
|
MF241324 |
— | ||
|
21811
|
21811
MB436655
CROSSMEMBER, T/M MOUNTING
|
MB436655 |
— | ||
|
21811
|
21811
MB581119 CROSSMEMBER, T/M MOUNTING |
MB581119 |
US $301.50 |
||
|
21831B
|
21831B
MB436630 BRACKET, T/M MOUNTING BODY SIDE |
MB436630 |
US $291.56 |
||
|
21831C
|
21831C
MB436647 BRACKET, T/M MOUNTING BODY SIDE |
MB436647 |
US $59.20 |
||
|
21846
|
21846
MB436649 PLATE, T/M MOUNTING CUSHION SUPPORT |
MB436649 |
US $10.36 |
