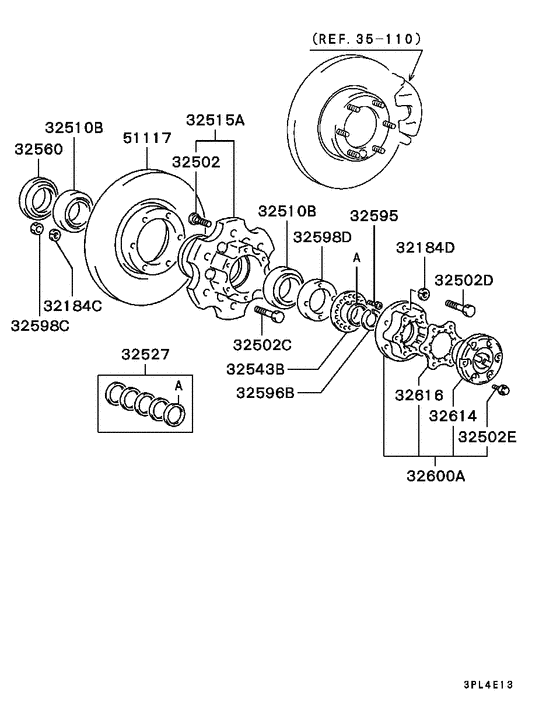

Front axle hub & drum (MANUAL FREE WHEEL HUB) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32184C
|
32184C
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
32184C
|
32184C
MS451113 WASHER, FR AXLE |
MS451113 |
US $2.19 |
||
|
32184D
|
32184D
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
32502
|
32502
MB301509 BOLT, FR WHEEL HUB |
MB301509 |
from US $1.79 |
||
|
32502C
|
32502C
MB151353 BOLT, FR WHEEL HUB10x55 |
MB151353 |
from US $1.93 |
||
|
32502D
|
32502D
MB290269 BOLT, FR WHEEL HUB10x42 |
MB290269 |
US $4.65 |
||
|
32502E
|
32502E
MB160712 BOLT, FR WHEEL HUB |
MB160712 |
US $7.80 |
||
|
32510B
|
32510B
MB092749 BEARING, FR WHEEL HUBTaper roller,73.43x19.55-45.24 |
MB092749 |
from US $32.78 |
||
|
32515A
|
32515A
MB290822
HUB ASSY, FR WHEEL
|
MB290822 |
— | ||
|
32527
|
32527
MB241229 SHIM SET, FR WHEEL HUB |
MB241229 |
from US $19.29 |
||
|
32543B
|
32543B
MB297071 WASHER, FR WHEEL HUBPlain,45 |
MB297071 |
US $18.50 |
||
|
32560
|
32560
MB526395 OIL SEAL, FR WHEEL HUB |
MB526395 |
from US $9.15 |
||
|
32595
|
32595
MB297073 SCREW, FR WHEEL HUB5x10 |
MB297073 |
US $5.34 |
||
|
32596B
|
32596B
MB092882 SNAP RING, FR WHEEL HUB28.2 |
MB092882 |
from US $2.67 |
||
|
32598C
|
32598C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
32598D
|
32598D
MB297072 NUT, FR WHEEL HUBLock,45 |
MB297072 |
from US $54.72 |
||
|
32600A
|
32600A
MB160940 HUB ASSY, FREEWHEEL |
MB160940 |
US $433.89 |
||
|
32600A
|
32600A
MB886389 HUB ASSY, FREEWHEEL |
MB886389 |
from US $238.28 |
||
|
32614
|
32614
MB160711 COVER, FREEWHEEL HUB |
MB160711 |
US $164.28 |
||
|
32614
|
32614
MB886523 COVER, FREEWHEEL HUB |
MB886523 |
US $147.74 |
||
|
32616
|
32616
MB160713 GASKET, FREEWHEEL HUB COVER |
MB160713 |
US $7.25 |
||
|
51117
|
51117
MB407038 DISC, FR BRAKE15; |
MB407038 |
from US $180.58 |
||
|
35 110
|
Front wheel brake
35 110
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
