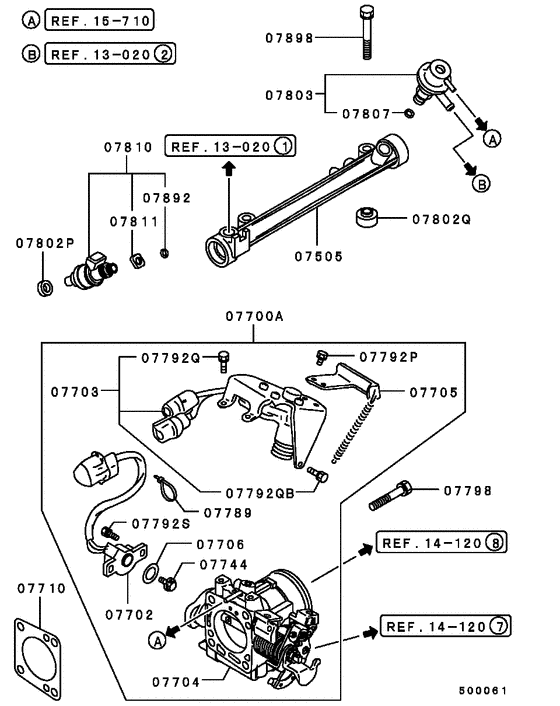

Injector & throttle body (-8910.3) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD110561
PIPE, FUEL DELIVERY
|
MD110561 |
— | ||
| replacement | |||||
|
07505
|
07505
MD300328
PIPE, FUEL DELIVERY
|
MD300328 |
— | ||
|
07505
|
07505
MD300328
PIPE, FUEL DELIVERY
|
MD300328 |
— | ||
|
07700A
|
07700A
MD103646
Throttle Body Assy
|
MD103646 |
— | ||
|
07700A
|
07700A
MD131037
Throttle Body Assy
|
MD131037 |
— | ||
|
07700A
|
07700A
MD146245
Throttle Body Assy
|
MD146245 |
— | ||
|
07700A
|
07700A
MD179434
Throttle Body Assy
|
MD179434 |
— | ||
|
07702
|
07702
MD614095
SENSOR, THROTTLE BODY THROTTLE
|
MD614095 |
— | ||
|
07702
|
07702
MD614278
SENSOR,THROTTLE BODY THROTTLE
|
MD614278 |
— | ||
|
07702
|
07702
MD614327 SENSOR, THROTTLE BODY THROTTLE |
MD614327 |
US $264.92 |
||
|
07702
|
07702
MD614510 SENSOR, THROTTLE BODY THROTTLE |
MD614510 |
US $270.86 |
||
|
07703
|
07703
MD614097 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD614097 |
US $562.43 |
||
|
07703
|
07703
MD614351
SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL
|
MD614351 |
— | ||
|
07704
|
07704
MD614122
BODY,THROTTLE BODY MIXING
|
MD614122 |
— | ||
|
07704
|
07704
MD614279
BODY,THROTTLE BODY MIXING
|
MD614279 |
— | ||
|
07704
|
07704
MD614387
BODY,THROTTLE BODY MIXING
|
MD614387 |
— | ||
|
07705
|
07705
MD614178
BRACKET KIT,THROTTLE BODY RETURN SPRING
|
MD614178 |
— | ||
|
07706
|
07706
MD614137 GASKET, THROTTLE BODY THROTTLE SENSOR |
MD614137 |
US $10.06 |
||
|
07706
|
07706
MD614219 GASKET, THROTTLE BODY THROTTLE SENSOR |
MD614219 |
US $7.55 |
||
|
07710
|
07710
MD095398
GASKET, THROTTLE BODY
|
MD095398 |
— | ||
| replacement | |||||
|
07710
|
07710
MD164884
GASKET, THROTTLE BODY
|
MD164884 |
— | ||
|
07710
|
07710
MD146401 GASKET, THROTTLE BODY |
MD146401 |
US $5.18 |
||
|
07710
|
07710
MD164881 GASKET, THROTTLE BODY |
MD164881 |
US $5.92 |
||
|
07710
|
07710
MD184045 GASKET, THROTTLE BODY |
MD184045 |
US $5.48 |
||
|
07744
|
07744
MD608978
JOINT, INJECTION MIXER INR
|
MD608978 |
— | ||
|
07789
|
07789
MD608632 CLIP, CARB INR |
MD608632 |
US $6.96 |
||
|
07792P
|
07792P
MD614181
SCREW,THROTTLE BODY INR
|
MD614181 |
— | ||
|
07792Q
|
07792Q
MD614066 SCREW, INJECTION MIXER INRWasher assembled,5x12 |
MD614066 |
US $5.92 |
||
|
07792Q
|
07792Q
MD614352 SCREW, THROTTLE BODY INR |
MD614352 |
US $3.26 |
||
|
07792QB
|
07792QB
MD614119 SCREW, THROTTLE BODY INR |
MD614119 |
US $7.70 |
||
|
07792S
|
07792S
MD614065 SCREW, INJECTION MIXER INRWasher assembled,4x12 |
MD614065 |
US $7.84 |
||
|
07792S
|
07792S
MD614199 SCREW, THROTTLE BODY INR |
MD614199 |
US $5.34 |
||
|
07798
|
07798
MF240062 BOLT, THROTTLE BODYWasher assembled,8x45 |
MF240062 |
US $2.37 |
||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07803
|
07803
MD111219
REGULATOR, INJECTION MIXER FUEL PRESSURE
|
MD111219 |
— | ||
|
07803
|
07803
MD116396 REGULATOR, MPI DELIVERY PIPE PRESSURE |
MD116396 |
US $126.54 |
||
|
07807
|
07807
MD604671 O-RING, FUEL REGULATOR |
MD604671 |
US $3.40 |
||
|
07810
|
07810
MD094717
INJECTOR KIT,FUEL
|
MD094717 |
— | ||
|
07810
|
07810
MD111422 INJECTOR KIT, FUEL |
MD111422 |
US $238.03 |
||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07892
|
07892
MD614803 O-RING, FUEL INJECTOR |
MD614803 |
US $8.29 |
||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07898
|
07898
MF240064 BOLT, OIL FILTERWasher assembled,8x55 |
MF240064 |
US $4.51 |
||
|
