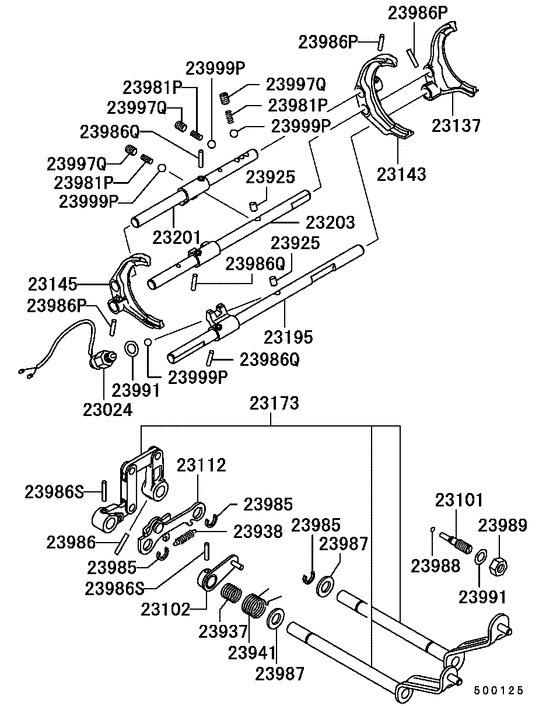

M/t gearshift control (FLOOR SHIFT) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23024
|
23024
MD700714
SWITCH, M/T GEARSHIFT BACKUP LAMP
|
MD700714 |
— | ||
|
23024
|
23024
MD729332
SWITCH, M/T GEARSHIFT BACKUP LAMP
|
MD729332 |
— | ||
| replacement | |||||
|
23024
|
23024
MD730711 SWITCH, M/T GEARSHIFT BACKUP LAMP |
MD730711 |
US $41.04 |
||
|
23024
|
23024
MD730711 SWITCH, M/T GEARSHIFT BACKUP LAMP |
MD730711 |
US $41.04 |
||
|
23101
|
23101
MD705610 ADJUSTER, M/T SELECT |
MD705610 |
US $12.28 |
||
|
23102
|
23102
MD705614 ARM, M/T SELECT ADJUSTING |
MD705614 |
US $22.94 |
||
|
23112
|
23112
MD711810 BRACKET, M/T GEARSHIFT LEVER STOPPER |
MD711810 |
US $25.90 |
||
|
23137
|
23137
MD720613
FORK, M/T GEARSHIFT O/D & REV
|
MD720613 |
— | ||
|
23143
|
23143
MD705571
FORK, M/T GEARSHIFT 1ST & 2ND
|
MD705571 |
— | ||
|
23145
|
23145
MD705574
FORK, M/T GEARSHIFT 3RD & 4TH
|
MD705574 |
— | ||
|
23173
|
23173
MD725166 LINK KIT, M/T GEARSHIFT |
MD725166 |
US $288.60 |
||
|
23195
|
23195
MD720640 RAIL, M/T GEARSHIFT O/D & REV |
MD720640 |
US $97.68 |
||
|
23201
|
23201
MD718635 RAIL, M/T GEARSHIFT 1ST & 2ND |
MD718635 |
US $60.68 |
||
|
23203
|
23203
MD718636 RAIL, M/T GEARSHIFT 3RD & 4TH |
MD718636 |
US $48.84 |
||
|
23925
|
23925
MD701550 PLUNGER, M/T GEARSHIFT RAIL INTERLOCK |
MD701550 |
US $4.51 |
||
|
23937
|
23937
MD705613 SPRING, M/T GEARSHIFT ADJUSTING ARM DISTANCE |
MD705613 |
US $2.52 |
||
|
23938
|
23938
MD717617 SPRING, M/T GEARSHIFT REV RESISTANCE PLATE |
MD717617 |
US $2.07 |
||
|
23941
|
23941
MD722884 SPRING, M/T GEARSHIFT ADJUSTING ARM RETURN |
MD722884 |
US $3.70 |
||
|
23981P
|
23981P
MD701549 SPRING, M/T GEARSHIFT EQUIP |
MD701549 |
US $3.56 |
||
|
23985
|
23985
MD724540 SNAP RING, M/T GEARSHIFT EQUIP1.2 |
MD724540 |
US $4.51 |
||
|
23985
|
23985
MD724541 SNAP RING, M/T GEARSHIFT EQUIP1.4 |
MD724541 |
US $5.92 |
||
|
23985
|
23985
MD724542 SNAP RING, M/T GEARSHIFT EQUIP1.6 |
MD724542 |
US $5.92 |
||
|
23985
|
23985
MD724543 SNAP RING, M/T GEARSHIFT EQUIP1.8 |
MD724543 |
US $5.92 |
||
|
23985
|
23985
MD724544 SNAP RING, M/T GEARSHIFT EQUIP2.0 |
MD724544 |
US $5.92 |
||
|
23986
|
23986
MD705855 PIN, M/T GEARSHIFT EQUIPDowel,5x28 |
MD705855 |
US $2.37 |
||
|
23986P
|
23986P
MF472572 SPRING PIN, M/T CLUTCH CONTROL EQUIP5x22 |
MF472572 |
US $2.60 |
||
|
23986Q
|
23986Q
MD701722 SPRING PIN, M/T CLUTCH CONTROL EQUIP5.2x26 |
MD701722 |
from US $1.31 |
||
|
23986S
|
23986S
MF472575 SPRING PIN, M/T UPR GEARSHIFT EQUIP5x32 |
MF472575 |
from US $1.46 |
||
|
23987
|
23987
MD705849 SPACER, M/T GEARSHIFT EQUIP2.0 |
MD705849 |
US $3.55 |
||
|
23988
|
23988
MF520001 O-RING, OIL FILTER INRD=6 |
MF520001 |
US $2.07 |
||
|
23989
|
23989
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
23991
|
23991
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.25 |
||
|
23997Q
|
23997Q
MD724183 PLUG, M/T GEARSHIFT EQUIP |
MD724183 |
US $3.40 |
||
|
23999P
|
23999P
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
||
