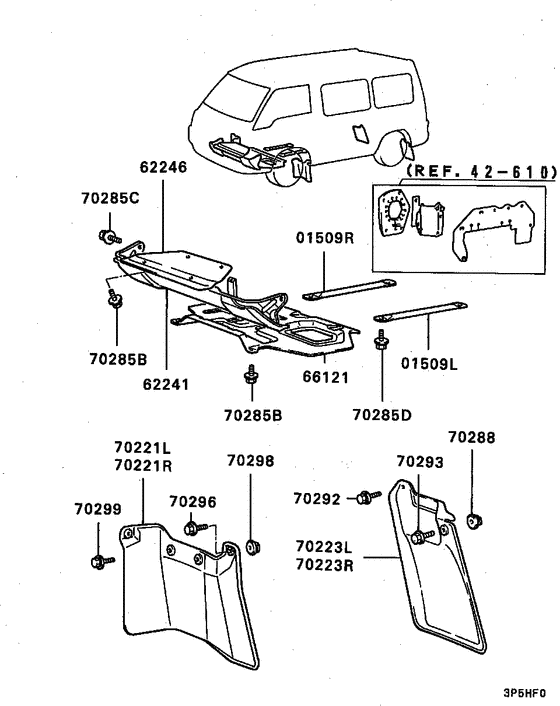

Mud guard,shield & stone guard (ALL) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01509L
|
01509L
MB485407 PIPE, ENG OIL PAN GUARD, LH |
MB485407 |
US $10.36 |
||
|
01509R
|
01509R
MB485408 PIPE, ENG OIL PAN GUARD, RH |
MB485408 |
US $10.36 |
||
|
62241
|
62241
MB485125
PLATE, UNDER SKID
|
MB485125 |
— | ||
|
62246
|
62246
MB485131
DEFLECTOR, UNDER SKID PLATE
|
MB485131 |
— | ||
|
66121
|
66121
MB485130 COVER, ENG ROOM UNDER... |
MB485130 |
US $106.02 |
||
|
70221L
|
70221L
MB417037 MUD GUARD, FR LH |
MB417037 |
US $54.04 |
||
|
70221R
|
70221R
MB417038 MUD GUARD, FR RH |
MB417038 |
US $62.24 |
||
|
70223L
|
70223L
MB417045
MUD GUARD, RR LH
|
MB417045 |
— | ||
|
70223R
|
70223R
MB417046
MUD GUARD, RR RH
|
MB417046 |
— | ||
|
70285B
|
70285B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
70285C
|
70285C
MF243678
BOLT, ENG SUPPORT ROD
|
MF243678 |
— | ||
| replacement | |||||
|
70285C
|
70285C
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
70285D
|
70285D
MF243650 BOLT, VACUUM PUMPWasher assembled,8x18 |
MF243650 |
US $2.60 |
||
|
70285D
|
70285D
MF243653 BOLT, ENG OIL COOLER LINEWasher assembled,8x25 |
MF243653 |
from US $1.07 |
||
|
70288
|
70288
MB223246 GROMMET, FR DOOR LOCKINGScrew,6 |
MB223246 |
US $3.28 |
||
|
70292
|
70292
MU001190 BOLT, RR MUD GUARDWasher,6x20 |
MU001190 |
US $3.56 |
||
|
70292
|
70292
MU240011 BOLT, RR MUD GUARDWasher assembled,6x20 |
MU240011 |
from US $0.84 |
||
|
70293
|
70293
MS452398 SCREW, SPLASH SHIELDTapping washer assembled,6x25 |
MS452398 |
from US $3.51 |
||
|
70296
|
70296
MS452398 SCREW, SPLASH SHIELDTapping washer assembled,6x25 |
MS452398 |
from US $3.51 |
||
|
70298
|
70298
MB223246 GROMMET, FR DOOR LOCKINGScrew,6 |
MB223246 |
US $3.28 |
||
|
70299
|
70299
MU001190 BOLT, RR MUD GUARDWasher,6x20 |
MU001190 |
US $3.56 |
||
|
70299
|
70299
MU240011 BOLT, RR MUD GUARDWasher assembled,6x20 |
MU240011 |
from US $0.84 |
||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
