	Description	OEM Part #	Price
30110	30110 3201A027 CASE, T/F CHAIN	3201A027	US $1,348.26
30110	30110 MD716559 CASE, T/F CHAIN	MD716559	US $1,785.60
30117	30117 MD724080 COVER, T/F CHAIN CASE	MD724080	US $419.33
30121	30121 MD704133 COVER, T/F CHAIN CASE SIDE	MD704133	from US $20.36
30122	30122 MD704106 COVER, T/F FR OUTPUT SHAFT RR BEARING	MD704106	US $27.38
30127	30127 MD704136 GASKET, T/F CHAIN CASE COVER	MD704136	—
	replacement
30127	30127 MD736299 GASKET, T/F CHAIN CASE COVER	MD736299	US $21.89
30127	30127 MD736299 GASKET, T/F CHAIN CASE COVER	MD736299	US $21.89
30131	30131 MD704139 GASKET, T/F CHAIN CASE SIDE COVER	MD704139	from US $3.53
30133	30133 MD704138 GASKET, T/F FR OUTPUT SHAFT BEARING COVER	MD704138	—
30142	30142 MD704135 OIL GUIDE, T/F CASE	MD704135	US $16.28
30174	30174 MD704137 GASKET, T/F CASE RR COVER	MD704137	—
30175	30175 MD704238 COVER, T/F CASE, RR	MD704238	—
30175	30175 MD731868 COVER, T/F CASE, RR	MD731868	—
	replacement
30175	30175 3201A044 COVER, T/F CASE, RR	3201A044	US $521.87
30268	30268 MD704168 PLUG, M/T CASE	MD704168	—
	replacement
30268	30268 MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
30269	30269 MB001294 GASKET, DRAIN PLUG D=18.2	MB001294	from US $1.15
30269	30269 MD000312 GASKET, PLUG D=18.2	MD000312	from US $1.31
30272	30272 MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
30273	30273 MB001294 GASKET, DRAIN PLUG D=18.2	MB001294	from US $1.15
30273	30273 MD000312 GASKET, PLUG D=18.2	MD000312	from US $1.31
30283	30283 MF450406 WASHER Spring,10	MF450406	from US $0.43
30284	30284 MB896202 STUD, T/F CASE 10x28	MB896202	US $3.70
30284	30284 MS401451 STUD, CYLINDER BLOCK 10x28	MS401451	US $3.69
30287	30287 MB001293 PLUG, M/T CASE	MB001293	—
	replacement
30287	30287 MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
30288PB	30288PB MF472403 PIN, CYLINDER BLOCK Dowel,6x14	MF472403	from US $2.40
30288PC	30288PC MF472405 PIN, CYLINDER BLOCK Dowel,10x20	MF472405	from US $1.31
30291	30291 MF430122 NUT, ENG RR MOUNTING 10	MF430122	from US $0.72
30293TB	30293TB MD723274 CLAMP, T/M CONNECTING	MD723274	US $2.37
30293TC	30293TC MD723275 CLAMP, T/M CONNECTING	MD723275	US $2.66
30293TD	30293TD MD701798 CLAMP, M/T CASE	MD701798	US $2.96
30293TD	30293TD MD723275 CLAMP, T/M CONNECTING	MD723275	US $2.66
30296	30296 MF665534 CAP, CYLINDER HEAD 16	MF665534	from US $1.92
30299Q	30299Q MD726987 BOLT, T/F CASE Washer assembled,8x30	MD726987	US $3.11
30299Y	30299Y MB886892 BOLT, T/F CASE Washer assembled,10x30	MB886892	US $3.28
30299Y	30299Y MD726987 BOLT, T/F CASE Washer assembled,8x30	MD726987	US $3.11
30299YC	30299YC MF240051 BOLT, ROCKER COVER Washer assembled,8x16	MF240051	from US $0.96
30299ZB	30299ZB MF241286 BOLT, COOLING FAN Washer assembled,10x35	MF241286	from US $1.07
30299ZC	30299ZC MF241293 BOLT, T/F CASE Washer assembled,10x65	MF241293	from US $2.28
30299ZD	30299ZD MF241288 BOLT, COOLING FAN Washer assembled,10x40	MF241288	US $3.69
30364	30364 MD704210 GUARD, T/F FR OUTPUT SHAFT DUST SEAL	MD704210	from US $6.57
30365	30365 MD700154 GUARD, T/F RR OUTPUT SHAFT DUST SEAL	MD700154	from US $15.56
30382	30382 MD704164 OIL SEAL, T/F INPUT GEAR SHAFT	MD704164	—
	replacement
30382	30382 MR145502 OIL SEAL, T/F INPUT GEAR SHAFT	MR145502	from US $11.95
30382	30382 MR145502 OIL SEAL, T/F INPUT GEAR SHAFT	MR145502	from US $11.95
30384	30384 MD731708 OIL SEAL, T/F RR OUTPUT SHAFT	MD731708	from US $6.92
30386	30386 MD712012 OIL SEAL, T/F FR OUTPUT SHAFT	MD712012	from US $5.28
30392	30392 MD704128 PLATE, T/F CASE OIL SEAL BAFFLE	MD704128	from US $2.89

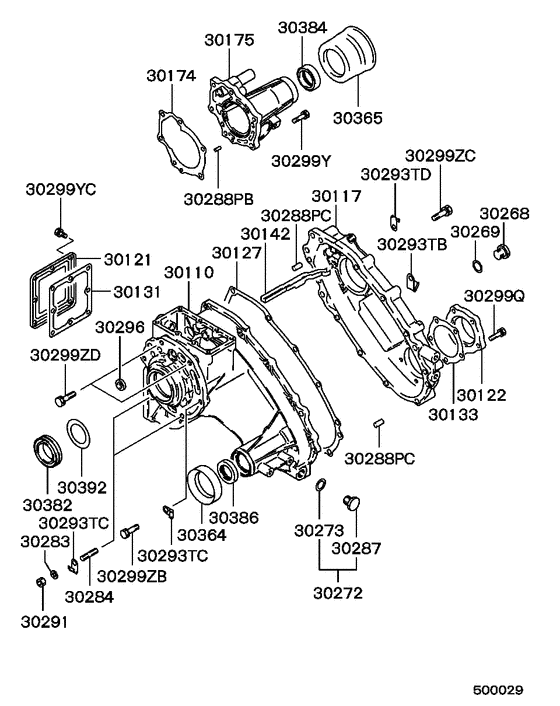

Transfer case (ALL) Diagram Mitsubishi L300 EUR 1879304-164658

Transfer case (ALL) Diagram Mitsubishi L300 EUR 1879304-164658
