Component List L300
Transfer floor shift control (ALL (SHIFT CONTROL))

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
30600A	30600A MD723994 LEVER ASSY, T/F GEARSHIFT	MD723994	US $70.30
30605	30605 MD700945 BREATHER, M/T CASE	MD700945	—
	replacement
30605	30605 MD727784 BREATHER, M/T CASE	MD727784	from US $14.36
30607	30607 MD704161 CABLE, T/F GEARSHIFT 4WD LAMP SWITCH	MD704161	—
30607	30607 MD729341 CABLE, T/F GEARSHIFT 4WD LAMP SWITCH	MD729341	US $7.84
30625SB	30625SB MD704144 FORK, T/F GEARSHIFT 2WD & 4WD	MD704144	US $124.32
30625SC	30625SC MD700702 FORK, T/F GEARSHIFT 2WD & 4WD	MD700702	US $152.44
30626	30626 MD716587 GASKET, T/F GEARSHIFT HOUSING	MD716587	from US $4.47
30629	30629 MD723258 LUG, T/F 2WD & 4WD GEARSHIFT RAIL	MD723258	US $82.88
30631	30631 MD724006 HOUSING, T/F GEARSHIFT LEVER	MD724006	US $59.20
30633	30633 MD721440 LEVER, T/F GEARSHIFT SELECT SHAFT	MD721440	US $14.65
30634	30634 MD700696 LEVER, T/F GEARSHIFT SHAFT CHANGE	MD700696	US $44.40
30636	30636 MD704165 PIECE, T/F GEARSHIFT 2WD & 4WD RAIL DISTANCE	MD704165	US $7.25
30644	30644 MD700700 PLATE, T/F GEARSHIFT SELECT LEVER BAFFLE	MD700700	US $3.26
30646	30646 MD704147 PLUNGER, T/F GEARSHIFT RAIL INTERLOCK	MD704147	US $7.10
30651SB	30651SB MD704143 RAIL, T/F H-L GEARSHIFT	MD704143	US $79.18
30651SC	30651SC MD704141 RAIL, T/F H-L GEARSHIFT	MD704141	US $79.18
30653	30653 MD704222 RETAINER, T/F GEARSHIFT RAIL SPRING	MD704222	US $5.34
30665	30665 MD700697 SHAFT, T/F GEARSHIFT SELECT	MD700697	US $31.08
30667	30667 MD704167 SPRING, T/F GEARSHIFT POPPET	MD704167	US $2.07
30673	30673 MD704146 SPRING, T/F 2WD & 4WD SHIFT FORK RETURN	MD704146	—
30676	30676 MD704162 SWITCH, T/F GEARSHIFT 4WD LAMP	MD704162	from US $62.93
30677	30677 MD704163 SWITCH, T/F H-L GEARSHIFT LAMP	MD704163	US $62.93
30698	30698 MD724007 OIL SEAL, T/F GEARSHIFT LEVER	MD724007	US $10.66
30775WB	30775WB MF450407 WASHER Spring,12	MF450407	from US $0.84
30775WC	30775WC MF450405 WASHER, CYLINDER HEAD Spring,8	MF450405	from US $0.43
30775WD	30775WD MD701785 WASHER, M/T GEARSHIFT EQUIP 8	MD701785	US $2.37
30785	30785 MD710210 SPACER, T/F GEARSHIFT LINK 2.5	MD710210	US $3.11
30785	30785 MD728089 SPACER, T/F GEARSHIFT LINK 1.6	MD728089	US $3.55
30786	30786 MD701616 SCREW, M/T GEARSHIFT EQUIP 8x18	MD701616	US $3.70
30787SB	30787SB MD701615 SNAP RING, M/T GEARSHIFT EQUIP 9	MD701615	US $2.66
30787SC	30787SC MF522409 SNAP RING, CLUTCH CONTROL EQUIP 12	MF522409	US $2.60
30788PB	30788PB MB837102 PLUG, T/F GEARSHIFT LINK	MB837102	US $7.25
30788PB	30788PB MD704168 PLUG, M/T CASE	MD704168	—
	replacement
30788PB	30788PB MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
30788PB	30788PB MD737131 PLUG, T/F GEARSHIFT LINK	MD737131	US $9.92
30788PC	30788PC MD704218 PLUG, M/T GEARSHIFT EQUIP Screw	MD704218	US $5.77
30791Q	30791Q MD701722 SPRING PIN, M/T CLUTCH CONTROL EQUIP 5.2x26	MD701722	from US $1.31
30792	30792 MF520004 O-RING, ROCKER COVER 9	MF520004	from US $1.19
30793	30793 MF430007 NUT 12	MF430007	from US $1.46
30794PB	30794PB MD000312 GASKET, PLUG D=18.2	MD000312	from US $1.31
30794PC	30794PC MF660034 GASKET, CYLINDER BLOCK D=12	MF660034	from US $0.25
30795	30795 MF665533 CAP, CYLINDER HEAD 14	MF665533	from US $1.54
30796	30796 MB542527 CABLE, T/F EARTH T/m	MB542527	US $10.51
30796	30796 MB542528 CABLE, M/T EXTENSION HOUSING T/m	MB542528	US $4.74
30798YB	30798YB MD726984 BOLT, T/F GEARSHIFT LINK Reamer,8x25	MD726984	US $2.66
30798YC	30798YC MF241255 BOLT, CYLINDER HEAD Washer assembled,8x25	MF241255	from US $1.11
30798YD	30798YD MD726990 BOLT, T/F GEARSHIFT LINK Washer assembled,8x25	MD726990	US $2.74
30799	30799 MF540010 BALL, CAMSHAFT 5/16	MF540010	from US $1.31

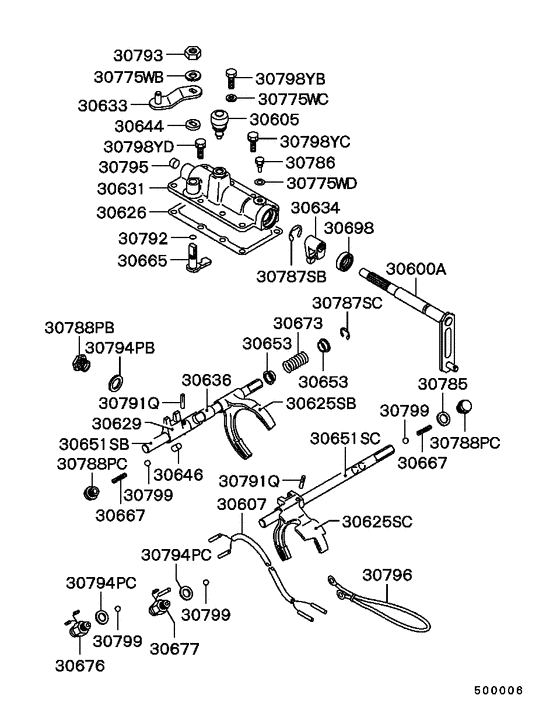

Transfer floor shift control (ALL (SHIFT CONTROL)) Diagram Mitsubishi L300 EUR 1879308-164658

Transfer floor shift control (ALL (SHIFT CONTROL)) Diagram Mitsubishi L300 EUR 1879308-164658
