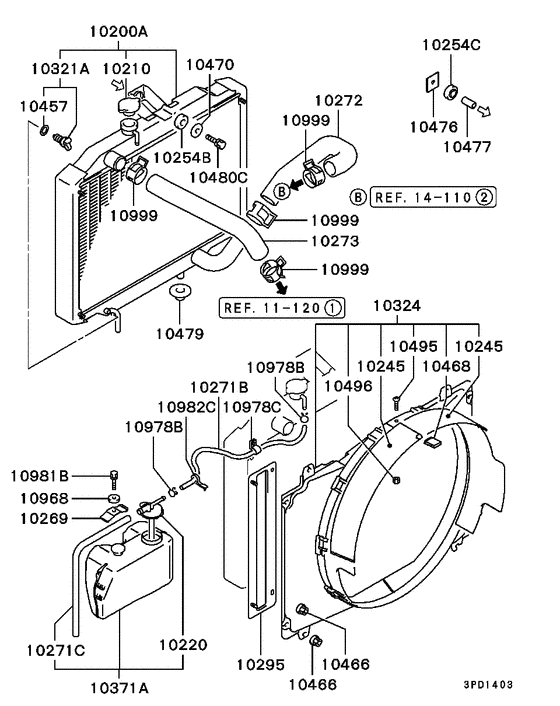

Radiator,hose & condenser tank ('95M-) Diagram Mitsubishi L300
- Year
- 1988 - 1997
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN/TURBO),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MB356343
RADIATOR ASSY
|
MB356343 |
— | ||
|
10200A
|
10200A
MR160746
RADIATOR ASSY
|
MR160746 |
— | ||
|
10210
|
10210
MB222336 CAP, RADIATOR |
MB222336 |
US $16.38 |
||
| replacement | |||||
|
10210
|
10210
MR481218 CAP, RADIATOR |
MR481218 |
US $22.09 |
||
|
10210
|
10210
MB660171
CAP, RADIATOR
|
MB660171 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481218 CAP, RADIATOR |
MR481218 |
US $22.09 |
||
|
10210
|
10210
MB957124
CAP, RADIATOR
|
MB957124 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481218 CAP, RADIATOR |
MR481218 |
US $22.09 |
||
|
10220
|
10220
MB283428
CAP, RADIATOR CONDENSER TANK
|
MB283428 |
— | ||
| replacement | |||||
|
10220
|
10220
MN161265 CAP, RADIATOR CONDENSER TANK |
MN161265 |
from US $7.70 |
||
|
10245
|
10245
MB538853 COVER, RADIATOR, UPR |
MB538853 |
US $27.36 |
||
|
10245
|
10245
MB538854 COVER, RADIATOR, UPR |
MB538854 |
US $27.36 |
||
|
10254B
|
10254B
MB356560 CUSHION, RADIATOR SUPPORT |
MB356560 |
US $3.01 |
||
|
10254C
|
10254C
MB356561 CUSHION, RADIATOR SUPPORT |
MB356561 |
US $3.01 |
||
|
10269
|
10269
MB356816 HOLDER, RADIATOR CONDENSER TANK |
MB356816 |
US $8.73 |
||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10271C
|
10271C
MS610718 TUBE, FUEL TANKSoft vinyl,12x2000 |
MS610718 |
US $84.82 |
||
|
10272
|
10272
MB356383 HOSE, RADIATOR, LWRRubber,34 |
MB356383 |
from US $22.56 |
||
|
10273
|
10273
MB356382 HOSE, RADIATOR, UPR |
MB356382 |
from US $22.35 |
||
|
10295
|
10295
MR127777
PLATE,RADIATOR BAFFLE SIDE
|
MR127777 |
— | ||
|
10321A
|
10321A
MB221817 PLUG ASSY, RADIATOR |
MB221817 |
US $6.96 |
||
|
10324
|
10324
MB356923 SHROUD, COOLING FAN |
MB356923 |
US $155.95 |
||
|
10324
|
10324
MR188008
SHROUD,COOLING FAN
|
MR188008 |
— | ||
|
10371A
|
10371A
MB356334 TANK ASSY, RADIATOR CONDENSER |
MB356334 |
from US $40.23 |
||
|
10457
|
10457
MB221819 O-RING, RADIATOR6.8 |
MB221819 |
US $3.69 |
||
|
10466
|
10466
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
10468
|
10468
MB538849 CLIP, RADIATOR SHROUD |
MB538849 |
US $9.71 |
||
|
10470
|
10470
MB221688 WASHER, RADIATOR SUPPORTPlain,8.5 |
MB221688 |
from US $2.57 |
||
|
10476
|
10476
MB356604 NUT, RADIATOR SUPPORT9 |
MB356604 |
US $6.07 |
||
|
10477
|
10477
MB356559 COLLAR, RADIATOR SUPPORT |
MB356559 |
US $3.40 |
||
|
10479
|
10479
MB221921 BUSHING, RADIATOR20x17.5 |
MB221921 |
US $4.24 |
||
|
10480C
|
10480C
MF240059 BOLT, CYLINDER HEADWasher assembled,8x35 |
MF240059 |
from US $1.29 |
||
|
10495
|
10495
MF350724 SCREW, STEERING WHEELWasher assembled,4t,3x12 |
MF350724 |
US $2.07 |
||
|
10496
|
10496
MB851020 NUT, RADIATOR COVER |
MB851020 |
US $2.37 |
||
|
10968
|
10968
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10978C
|
10978C
MC395349
CLIP, RADIATOR CONDENSER TANK
|
MC395349 |
— | ||
|
10981B
|
10981B
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
10981B
|
10981B
MS240037 BOLT, FUEL RETURN LINEWasher assembled,6x12 |
MS240037 |
US $2.60 |
||
|
10982C
|
10982C
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
|
10999
|
10999
MA609112 CLAMP, RADIATOR PIPINGD=44 |
MA609112 |
from US $4.13 |
||
|
10999
|
10999
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10999
|
10999
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
