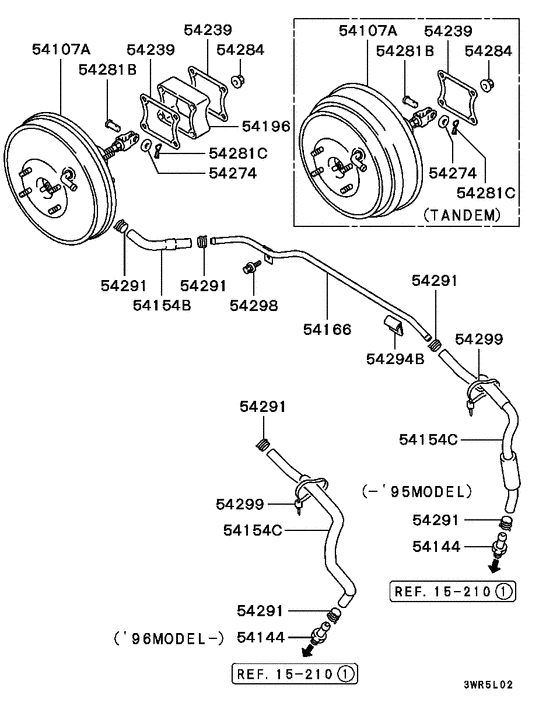

Power brake booster (RHD) Diagram Mitsubishi L400 VAN
- Year
- 1994 - 1998
- Sales region
- EUR
- Note
- GL(ROOT VAN/MPI),5CM/T RHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- GL
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54107A
|
54107A
MB841010 BOOSTER ASSY, BRAKE9; |
MB841010 |
US $665.39 |
||
|
54107A
|
54107A
MB841012
BOOSTER ASSY,BRAKE
|
MB841012 |
— | ||
|
54144
|
54144
MA140192
FITTING, BRAKE BOOSTER VACUUM HOSE
|
MA140192 |
— | ||
| replacement | |||||
|
54144
|
54144
MR493617 FITTING, INLET MANIFOLD VACUUM HOSE |
MR493617 |
US $5.06 |
||
|
54154B
|
54154B
MB950862
HOSE,BRAKE BOOSTER VACUUM
|
MB950862 |
— | ||
|
54154B
|
54154B
MB950871 HOSE, BRAKE BOOSTER VACUUMRubber |
MB950871 |
US $22.94 |
||
|
54154C
|
54154C
MB950516 HOSE, BRAKE BOOSTER VACUUMRubber |
MB950516 |
US $18.50 |
||
|
54154C
|
54154C
MR249202 HOSE, BRAKE BOOSTER VACUUMRubber |
MR249202 |
US $22.94 |
||
|
54166
|
54166
MB895752 PIPE, BRAKE BOOSTER VACUUM |
MB895752 |
US $79.18 |
||
|
54196
|
54196
MB895755 SPACER, BRAKE BOOSTER |
MB895755 |
US $28.12 |
||
|
54239
|
54239
MB238089
SEAL, BRAKE BOOSTER BODY
|
MB238089 |
— | ||
| replacement | |||||
|
54239
|
54239
MB928711 SEAL, BRAKE BOOSTER BODY |
MB928711 |
from US $3.26 |
||
|
54274
|
54274
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
54281B
|
54281B
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
54281C
|
54281C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
54284
|
54284
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54291
|
54291
MB058859 CLIP, BRAKE BOOSTER15 |
MB058859 |
US $3.83 |
||
|
54294B
|
54294B
MB864130 CLAMP, CLUTCH VACUUM LINE10 |
MB864130 |
US $2.96 |
||
|
54298
|
54298
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
54299
|
54299
MB084081 BAND, WATER HEATERL=169.5 |
MB084081 |
US $2.96 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
