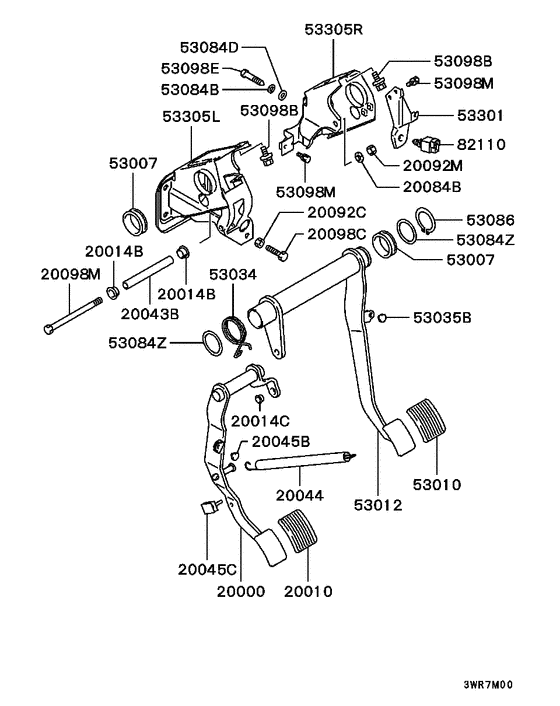

Brake & clutch pedal (LHD..M/T) Diagram Mitsubishi L400 VAN
- Year
- 1997 - 2001
- Sales region
- EUR
- Note
- GLX(MPI),5FM/T GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR112546
PEDAL,CLUTCH
|
MR112546 |
— | ||
|
20010
|
20010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
20014B
|
20014B
MB003682 BUSHING, CLUTCH PEDAL14x10 |
MB003682 |
from US $2.40 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20043B
|
20043B
MR150359
SPACER,CLUTCH PEDAL
|
MR150359 |
— | ||
|
20044
|
20044
MR151833 SPRING,CLUTCH PEDAL RETURN |
MR151833 |
US $11.25 |
||
|
20045B
|
20045B
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MB599166 STOPPER, CLUTCH PEDAL |
MB599166 |
US $2.37 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092C
|
20092C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
20092M
|
20092M
MF430726 NUT, FLYWHEEL HOUSINGJam,10 |
MF430726 |
from US $1.01 |
||
|
20098C
|
20098C
MS100122 BOLT, BRAKE PEDAL8x30 |
MS100122 |
US $2.52 |
||
|
20098M
|
20098M
MB193280 BOLT,CLUTCH PEDAL |
MB193280 |
US $7.10 |
||
|
53007
|
53007
MB193583 BUSHING, BRAKE PEDAL47.5x14 |
MB193583 |
US $3.11 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53012
|
53012
MR112550
PEDAL,BRAKE
|
MR112550 |
— | ||
|
53034
|
53034
MR151766
SPRING,BRAKE PEDAL RETURN
|
MR151766 |
— | ||
|
53035B
|
53035B
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
53035B
|
53035B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53084B
|
53084B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
53084D
|
53084D
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
53084Z
|
53084Z
MB193836 WASHER, BRAKE PEDALPlain,38 |
MB193836 |
US $3.11 |
||
|
53086
|
53086
MF522024 SNAP RING, FR BRAKE38 |
MF522024 |
from US $3.55 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53098E
|
53098E
MF195056 BOLT,BRAKE PEDAL |
MF195056 |
US $3.55 |
||
|
53098M
|
53098M
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
53301
|
53301
MR151959
BRACKET,PEDAL SUPPORT MEMBER
|
MR151959 |
— | ||
|
53305L
|
53305L
MR151955
MEMBER,PEDAL SUPPORT,LH
|
MR151955 |
— | ||
|
53305R
|
53305R
MR151958
MEMBER,PEDAL SUPPORT,RH
|
MR151958 |
— | ||
|
82110
|
82110
MR329967 SWITCH, STOP LAMP |
MR329967 |
from US $10.26 |
