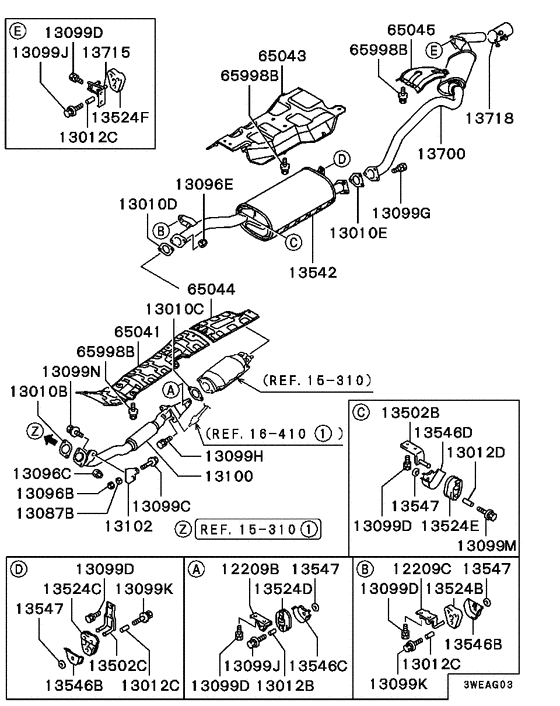

Exhaust pipe & muffler (ALL) Diagram Mitsubishi L400 VAN
- Year
- 1997 - 2001
- Sales region
- EUR
- Note
- GLX(MPI),5FM/T GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209B
|
12209B
MB957416 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB957416 |
US $11.99 |
||
|
12209C
|
12209C
MB957568 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB957568 |
US $11.99 |
||
|
13010B
|
13010B
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010D
|
13010D
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB549178 COLLAR, EXHAUST PIPE |
MB549178 |
US $3.01 |
||
|
13012D
|
13012D
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.79 |
||
|
13087B
|
13087B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
13096B
|
13096B
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096E
|
13096E
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096E
|
13096E
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099C
|
13099C
MF140236 BOLT, ROCKER COVERFlange,8x55 |
MF140236 |
from US $1.33 |
||
|
13099D
|
13099D
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099G
|
13099G
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099H
|
13099H
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099J
|
13099J
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099K
|
13099K
MF243661 BOLT, EXHAUST PIPEWasher assembled,8x50 |
MF243661 |
from US $1.50 |
||
|
13099M
|
13099M
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099N
|
13099N
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13100
|
13100
MR187128
PIPE,EXHAUST,FR
|
MR187128 |
— | ||
|
13102
|
13102
MB957413 BRACKET, EXHAUST PIPE HANGER |
MB957413 |
from US $9.79 |
||
|
13502B
|
13502B
MB957418 BRACKET, EXHAUST MUFFLER HANGER |
MB957418 |
US $10.51 |
||
|
13502C
|
13502C
MB957420 BRACKET, EXHAUST MUFFLER HANGER |
MB957420 |
US $17.76 |
||
|
13524B
|
13524B
MB431175
HANGER, EXHAUST MUFFLER
|
MB431175 |
— | ||
| replacement | |||||
|
13524B
|
13524B
MB548707 HANGER, EXHAUST MUFFLER |
MB548707 |
from US $8.07 |
||
|
13524C
|
13524C
MB548707 HANGER, EXHAUST MUFFLER |
MB548707 |
from US $8.07 |
||
|
13524D
|
13524D
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524E
|
13524E
MB924316 HANGER, EXHAUST MUFFLER |
MB924316 |
from US $14.06 |
||
|
13524E
|
13524E
MR266173 HANGER, EXHAUST MUFFLER |
MR266173 |
US $19.84 |
||
|
13524F
|
13524F
MB845683 HANGER, EXHAUST MUFFLER |
MB845683 |
from US $7.31 |
||
|
13542
|
13542
MR187056 MUFFLER,EXHAUST MAIN |
MR187056 |
US $157.93 |
||
|
13542
|
13542
MR299075
MUFFLER,EXHAUST MAIN
|
MR299075 |
— | ||
|
13542
|
13542
MR323484
MUFFLER,EXHAUST MAIN
|
MR323484 |
— | ||
|
13546B
|
13546B
MB431942 PROTECTOR, EXHAUST MUFFLER HANGER |
MB431942 |
US $4.59 |
||
|
13546C
|
13546C
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
13546D
|
13546D
MR161670 PROTECTOR, EXHAUST MUFFLER HANGER |
MR161670 |
US $12.58 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13700
|
13700
MR187071 PIPE, EXHAUST TAIL |
MR187071 |
US $615.89 |
||
|
13700
|
13700
MR299077
PIPE,EXHAUST TAIL
|
MR299077 |
— | ||
|
13700
|
13700
MR373601
PIPE,EXHAUST TAIL
|
MR373601 |
— | ||
|
13715
|
13715
MB957421 HANGER, EXHAUST TAIL PIPE |
MB957421 |
US $13.02 |
||
|
65041
|
65041
MR104701 PROTECTOR, UNDER FR FLOOR HEAT, FR |
MR104701 |
US $22.94 |
||
|
65043
|
65043
MR104723 PROTECTOR, UNDER FLOOR HEAT, CTR |
MR104723 |
US $38.48 |
||
|
65044
|
65044
MR104722 PROTECTOR, UNDER FLOOR HEAT, FR |
MR104722 |
US $11.84 |
||
|
65045
|
65045
MR104727 PROTECTOR, UNDER FLOOR HEAT, RR |
MR104727 |
US $12.58 |
||
|
65998B
|
65998B
MF247224 BOLT, FUEL TANKWasher assembled,6x16 |
MF247224 |
from US $1.40 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
