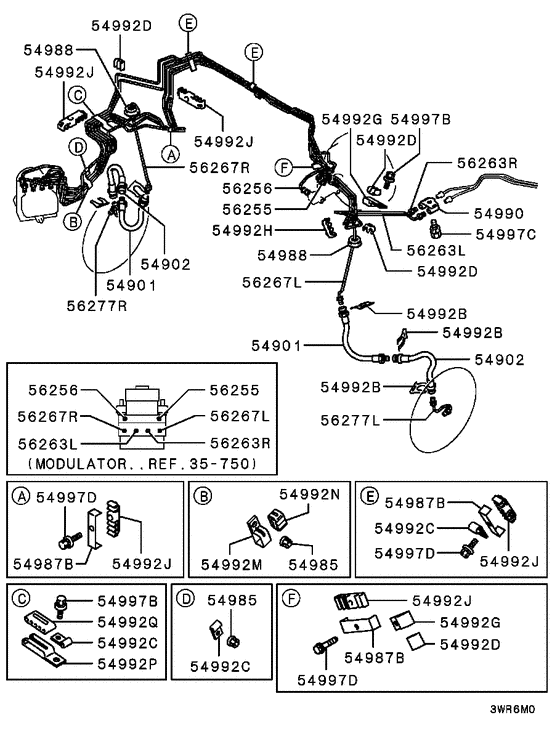

Brake line (FRONT..ABS) Diagram Mitsubishi L400 VAN
- Year
- 1994 - 2001
- Sales region
- EUR
- Note
- GLX(MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54901
|
54901
MR129757 HOSE, FR BRAKE WHEEL SIDE200 |
MR129757 |
from US $19.15 |
||
|
54902
|
54902
MR129771 HOSE, FR BRAKE WHEEL SIDE210 |
MR129771 |
from US $13.30 |
||
|
54985
|
54985
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
54987B
|
54987B
MB668276 HOLDER, BRAKE FLUID LINE |
MB668276 |
US $4.59 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54990
|
54990
MB277518 JOINT, BRAKE FLUID LINE |
MB277518 |
US $20.72 |
||
|
54992B
|
54992B
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992C
|
54992C
MB044570 CLIP, ACCEL CONTROL EQUIP15 |
MB044570 |
US $6.07 |
||
|
54992D
|
54992D
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54992G
|
54992G
MB151280 CLIP, FUEL RETURN LINE8,10 |
MB151280 |
US $2.74 |
||
|
54992H
|
54992H
MB344693 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MB344693 |
from US $2.63 |
||
|
54992J
|
54992J
MB668275 CLIP, BRAKE FLUID LINE4.7-4.7-4.7-4.7-4.7 |
MB668275 |
US $11.84 |
||
|
54992M
|
54992M
MB668011 CLIP, BRAKE FLUID LINE |
MB668011 |
US $7.55 |
||
|
54992N
|
54992N
MB668010 CLIP, BRAKE FLUID LINE4.6-4.6-4.6-4.6-4.6-4.6 |
MB668010 |
US $4.44 |
||
|
54992P
|
54992P
MB699862 CLIP, BRAKE FLUID LINE |
MB699862 |
US $4.59 |
||
|
54992Q
|
54992Q
MB699861 CLIP, BRAKE FLUID LINE4.6-4.6-4.6-4.6-4.6 |
MB699861 |
US $4 |
||
|
54997B
|
54997B
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
54997C
|
54997C
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
54997D
|
54997D
MS240124 BOLT, FUEL LINEWasher assembled,6x30 |
MS240124 |
US $2.07 |
||
|
56255
|
56255
MB950524
TUBE,BRAKE M/CYL PRIMARY
|
MB950524 |
— | ||
|
56255
|
56255
MB950532
TUBE,BRAKE M/CYL PRIMARY
|
MB950532 |
— | ||
|
56255
|
56255
MR510834
TUBE,BRAKE M/CYL PRIMARY
|
MR510834 |
— | ||
|
56256
|
56256
MB950525
TUBE,BRAKE M/CYL SECONDARY
|
MB950525 |
— | ||
|
56256
|
56256
MB950533
TUBE,BRAKE M/CYL SECONDARY
|
MB950533 |
— | ||
|
56256
|
56256
MR510835
TUBE,BRAKE M/CYL SECONDARY
|
MR510835 |
— | ||
|
56263L
|
56263L
MR205673
TUBE,BRAKE MAIN,FR LH
|
MR205673 |
— | ||
|
56263L
|
56263L
MR510838
TUBE,BRAKE MAIN,FR LH
|
MR510838 |
— | ||
|
56263R
|
56263R
MR205674
TUBE,BRAKE MAIN,FR RH
|
MR205674 |
— | ||
|
56263R
|
56263R
MR510839
TUBE,BRAKE MAIN,FR LH
|
MR510839 |
— | ||
|
56267L
|
56267L
MB950528
TUBE,FR BRAKE,LH
|
MB950528 |
— | ||
|
56267L
|
56267L
MR205676
TUBE,FR BRAKE,LH
|
MR205676 |
— | ||
|
56267L
|
56267L
MR510837
TUBE,FR BRAKE,LH
|
MR510837 |
— | ||
|
56267R
|
56267R
MB895777 TUBE, FR BRAKE, RH |
MB895777 |
US $22.20 |
||
|
56267R
|
56267R
MB950529
TUBE,FR BRAKE,RH
|
MB950529 |
— | ||
|
56267R
|
56267R
MR510830 TUBE, FR BRAKE, RH |
MR510830 |
US $16.28 |
||
|
56277L
|
56277L
MR128554 TUBE, FR BRAKE WHEEL SIDE, LH |
MR128554 |
US $6.36 |
||
|
56277R
|
56277R
MR128555 TUBE, FR BRAKE WHEEL SIDE, RH |
MR128555 |
US $6.36 |
||
|
35 750
|
Modulator
35 750
|
||||
|
35 750
|
Modulator
35 750
|
||||
