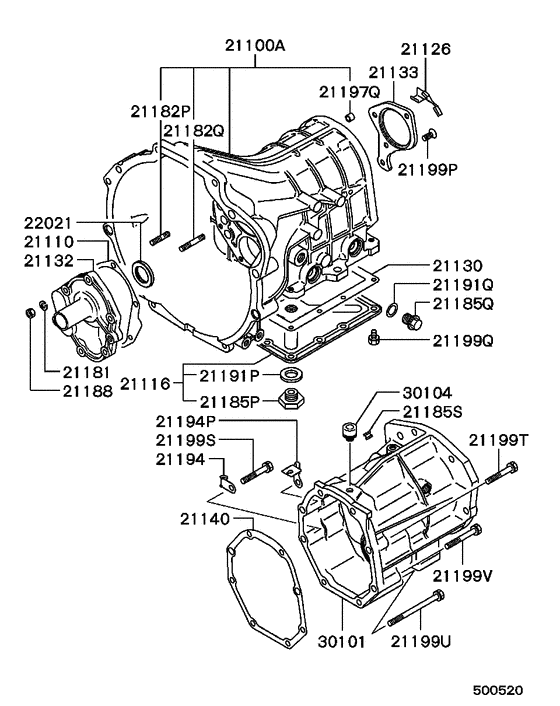

M/t case (ALL (T/M CASE)) Diagram Mitsubishi L400 VAN
- Year
- 1994 - 2001
- Sales region
- EUR
- Note
- GLX(MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100A
|
21100A
MR196102 CASE ASSY, M/T |
MR196102 |
US $841.57 |
||
|
21110
|
21110
MD736300 GASKET, M/T CASE FR BEARING RETAINER |
MD736300 |
from US $5.01 |
||
|
21116
|
21116
MR222220 COVER, M/T CASE UNDER |
MR222220 |
US $36.26 |
||
|
21126
|
21126
MD721934 PLATE, M/T CASE RR BEARING BAFFLE |
MD721934 |
US $7.55 |
||
|
21130
|
21130
MD703796 GASKET, M/T CASE UNDER COVER |
MD703796 |
from US $2.18 |
||
|
21132
|
21132
MD725129 RETAINER, M/T CASE FR BEARING |
MD725129 |
US $72.50 |
||
|
21133
|
21133
MD734707 RETAINER, M/T CASE RR BEARING |
MD734707 |
from US $17.02 |
||
|
21140
|
21140
MD703812 GASKET, M/T CASE, RR |
MD703812 |
from US $2.40 |
||
|
21181
|
21181
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
21182P
|
21182P
MS401327 STUD, CYLINDER HEAD8x25 |
MS401327 |
from US $1.52 |
||
|
21182Q
|
21182Q
MS401332 STUD, INLET MANIFOLD8x38 |
MS401332 |
US $2.52 |
||
|
21185P
|
21185P
MB001293
PLUG, M/T CASE
|
MB001293 |
— | ||
| replacement | |||||
|
21185P
|
21185P
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
21185Q
|
21185Q
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21185S
|
21185S
MD704223 PLUG, M/T CASE16 |
MD704223 |
from US $3.51 |
||
|
21188
|
21188
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
21191P
|
21191P
MD016339 GASKET, M/T CASE18 |
MD016339 |
from US $1.01 |
||
|
21191Q
|
21191Q
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21194
|
21194
MD701798 CLAMP, M/T CASE |
MD701798 |
US $2.96 |
||
|
21194P
|
21194P
MR111010 CLAMP, M/T EXTENSION HOUSING |
MR111010 |
US $2.96 |
||
|
21197Q
|
21197Q
MS471104 BUSHING, CYLINDER HEAD8x9 |
MS471104 |
from US $1.79 |
||
|
21199P
|
21199P
MD734702
BOLT, A/T CASE
|
MD734702 |
— | ||
|
21199Q
|
21199Q
MF240651 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x16 |
MF240651 |
US $3.15 |
||
|
21199S
|
21199S
MD726988 BOLT, M/T CASEWasher assembled,8x55 |
MD726988 |
from US $1.95 |
||
|
21199T
|
21199T
MD700763 BOLT, M/T CASEWasher assembled,8x55 |
MD700763 |
US $2.37 |
||
|
21199U
|
21199U
MD726989 BOLT, M/T CASEWasher assembled,8x110 |
MD726989 |
US $3.55 |
||
|
21199V
|
21199V
MD700764 BOLT, M/T CASEWasher assembled,8x65 |
MD700764 |
US $2.81 |
||
|
22021
|
22021
MD723202 OIL SEAL, M/T MAIN DRIVE PINION |
MD723202 |
from US $3.72 |
||
|
30101
|
30101
MB937246
ADAPTER,T/F CASE
|
MB937246 |
— | ||
|
30104
|
30104
MD715206 BREATHER, M/T CASE |
MD715206 |
US $5.61 |
||
