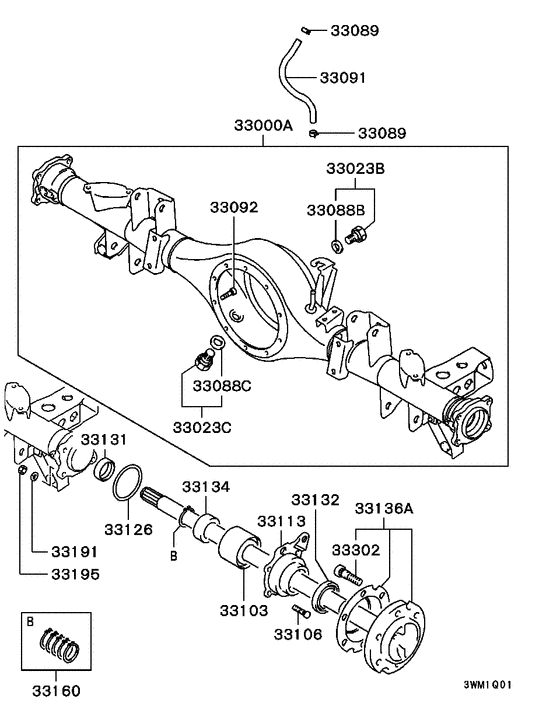

Rear axle housing & shaft (EXC.ABS) Diagram Mitsubishi L400 VAN
- Year
- 1994 - 2001
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33000A
|
33000A
MR162733 HOUSING ASSY,RR AXLE |
MR162733 |
US $1,102.19 |
||
|
33000A
|
33000A
MR162758 HOUSING ASSY,RR AXLE |
MR162758 |
US $1,102.19 |
||
|
33023B
|
33023B
MB001261 PLUG KIT, FR AXLE HOUSING |
MB001261 |
from US $3.08 |
||
|
33023C
|
33023C
MB569390 PLUG KIT, FR DIFF |
MB569390 |
from US $6.14 |
||
|
33088B
|
33088B
MF660066 GASKET, PLUGD=16 |
MF660066 |
from US $1.01 |
||
|
33088C
|
33088C
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.15 |
||
|
33089
|
33089
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
33091
|
33091
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
33092
|
33092
MB092376 BOLT, RR AXLE HOUSINGPress fit,8x35.5 |
MB092376 |
from US $1.29 |
||
|
33103
|
33103
MB664611 BEARING, RR AXLE SHAFTTaper roller,80x45-40 |
MB664611 |
from US $47.25 |
||
|
33106
|
33106
MB092443 BOLT, RR AXLE SHAFTPress fit,10x43 |
MB092443 |
from US $1.66 |
||
|
33113
|
33113
MB664615 CASE, RR AXLE SHAFT BEARING |
MB664615 |
US $161.42 |
||
|
33113
|
33113
MB664616 CASE, RR AXLE SHAFT BEARING |
MB664616 |
US $161.42 |
||
|
33126
|
33126
MB092440 O-RING, RR AXLE SHAFT79.5 |
MB092440 |
from US $1.91 |
||
|
33131
|
33131
MB837719 OIL SEAL, RR AXLE SHAFT, INR |
MB837719 |
from US $4.26 |
||
|
33132
|
33132
MB664612 OIL SEAL, RR AXLE SHAFT, OTR |
MB664612 |
from US $5.25 |
||
|
33134
|
33134
MB664448 RETAINER, RR AXLE SHAFT BEARING, INR |
MB664448 |
from US $18.06 |
||
|
33134
|
33134
MR111877 RETAINER, RR AXLE SHAFT BEARING, INR |
MR111877 |
from US $35.98 |
||
|
33134
|
33134
MR145999
RETAINER, RR AXLE SHAFT BEARING, OTR
|
MR145999 |
— | ||
| replacement | |||||
|
33134
|
33134
3716A016 RETAINER, RR AXLE SHAFT BEARING, INR |
3716A016 |
from US $18.90 |
||
|
33136A
|
33136A
MR196251 SHAFT ASSY, RR AXLE |
MR196251 |
US $538.10 |
||
|
33136A
|
33136A
MR377495 SHAFT ASSY, RR AXLE |
MR377495 |
from US $223.63 |
||
|
33160
|
33160
MR162662 SNAP RING SET, RR AXLE SHAFT |
MR162662 |
from US $16.30 |
||
|
33191
|
33191
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
33195
|
33195
MF430152 NUT, RR AXLE10 |
MF430152 |
from US $1.11 |
||
|
33302
|
33302
MB584750 BOLT, WHEEL HUB12x43 |
MB584750 |
from US $1.85 |
||
