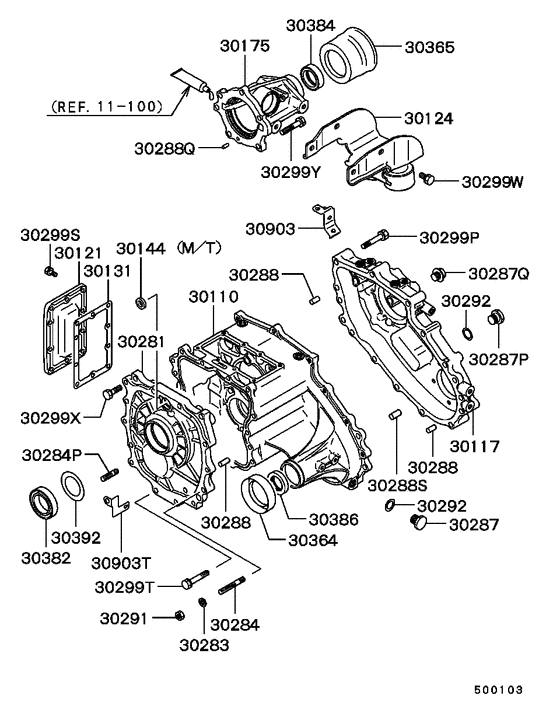

Transfer case (ALL) Diagram Mitsubishi L400 VAN
- Year
- 1994 - 2001
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30110
|
30110
MB936100 CASE, T/F CHAIN |
MB936100 |
US $1,345.34 |
||
| replacement | |||||
|
30110
|
30110
3201A037 CASE, T/F CHAIN |
3201A037 |
US $1,224.50 |
||
|
30117
|
30117
MB886894 COVER, T/F CHAIN CASE |
MB886894 |
US $604.24 |
||
|
30117
|
30117
MR165651 COVER, T/F CHAIN CASE |
MR165651 |
US $400.40 |
||
|
30121
|
30121
MB896696 COVER, T/F CHAIN CASE SIDE |
MB896696 |
US $21.46 |
||
|
30124
|
30124
MR196944
DAMPER,T/F DYNAMIC
|
MR196944 |
— | ||
|
30131
|
30131
MB896697 GASKET, T/F CHAIN CASE SIDE COVER |
MB896697 |
from US $10.12 |
||
|
30144
|
30144
MB896698 OIL SEAL, T/F CASE GEARSHIFT SHAFT |
MB896698 |
from US $4.78 |
||
|
30175
|
30175
MR145763
COVER, T/F CASE, RR
|
MR145763 |
— | ||
| replacement | |||||
|
30175
|
30175
3201A050 COVER, T/F CASE, RR |
3201A050 |
from US $377.21 |
||
|
30281
|
30281
MB896849 PLATE, T/F CASE |
MB896849 |
US $371.28 |
||
|
30283
|
30283
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
30284
|
30284
MS401460 STUD, CYLINDER BLOCK10x55 |
MS401460 |
US $3.15 |
||
|
30284P
|
30284P
MS401451 STUD, CYLINDER BLOCK10x28 |
MS401451 |
US $3.69 |
||
|
30287
|
30287
MB001293
PLUG, M/T CASE
|
MB001293 |
— | ||
| replacement | |||||
|
30287
|
30287
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
30287P
|
30287P
MD704168
PLUG, M/T CASE
|
MD704168 |
— | ||
| replacement | |||||
|
30287P
|
30287P
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
30287Q
|
30287Q
MB811559 PLUG, T/F CASE16 |
MB811559 |
US $9.30 |
||
|
30288
|
30288
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
30288Q
|
30288Q
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
30288S
|
30288S
MF472406 PIN, CYLINDER BLOCKDowel,12x24 |
MF472406 |
from US $2.37 |
||
|
30291
|
30291
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
30292
|
30292
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
30299P
|
30299P
MF241293 BOLT, T/F CASEWasher assembled,10x65 |
MF241293 |
from US $2.28 |
||
|
30299S
|
30299S
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
30299T
|
30299T
MF241292 BOLT, ENG SUPPORT RODWasher assembled,10x60 |
MF241292 |
US $3.40 |
||
|
30299W
|
30299W
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
30299X
|
30299X
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
30299Y
|
30299Y
MB886892 BOLT, T/F CASEWasher assembled,10x30 |
MB886892 |
US $3.28 |
||
|
30364
|
30364
MD704210 GUARD, T/F FR OUTPUT SHAFT DUST SEAL |
MD704210 |
from US $6.57 |
||
|
30365
|
30365
MR195191 GUARD, T/F RR OUTPUT SHAFT DUST SEAL |
MR195191 |
US $23.26 |
||
|
30382
|
30382
MR145502 OIL SEAL, T/F INPUT GEAR SHAFT |
MR145502 |
from US $11.95 |
||
|
30384
|
30384
MB919210
OIL SEAL, T/F RR OUTPUT SHAFT
|
MB919210 |
— | ||
| replacement | |||||
|
30384
|
30384
3231A047 O/SEAL,T/F RR OUTPUT |
3231A047 |
from US $6.18 |
||
|
30386
|
30386
MD731708 OIL SEAL, T/F RR OUTPUT SHAFT |
MD731708 |
from US $6.92 |
||
|
30392
|
30392
MD704128 PLATE, T/F CASE OIL SEAL BAFFLE |
MD704128 |
from US $2.89 |
||
|
30903
|
30903
MR145493 BRACKET, T/F CASE |
MR145493 |
US $7.55 |
||
|
30903
|
30903
MR305996 BRACKET, T/F HARNESS CONNECTOR |
MR305996 |
US $7.99 |
||
|
30903
|
30903
MR470269 BRACKET, T/F HARNESS CONNECTOR |
MR470269 |
US $3.55 |
||
|
30903T
|
30903T
MR165934 BRACKET, T/F HARNESS CONNECTOR |
MR165934 |
US $3.70 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
