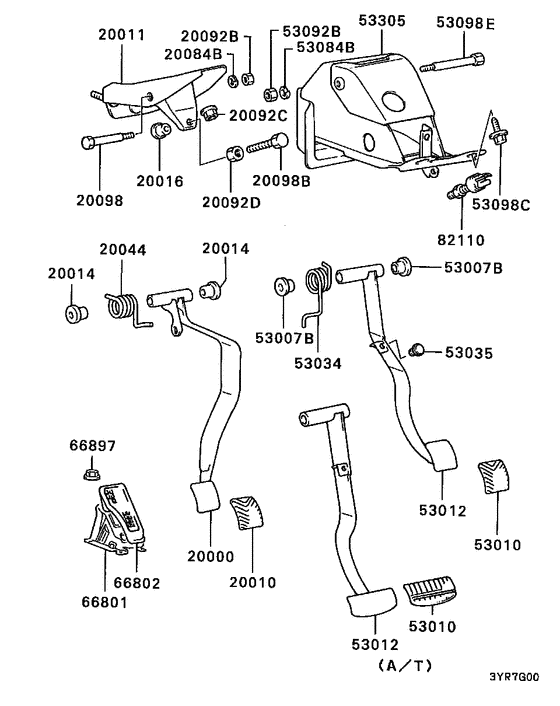

Brake & clutch pedal (RHD) Diagram Mitsubishi LANCER
- Year
- 1984 - 1988
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB316702 PEDAL, CLUTCH |
MB316702 |
US $46.62 |
||
|
20000
|
20000
MB407604 PEDAL, CLUTCH |
MB407604 |
US $47.36 |
||
|
20000
|
20000
MB500494 PEDAL, CLUTCH |
MB500494 |
US $49.58 |
||
|
20010
|
20010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
20011
|
20011
MB316706 SUPPORT, CLUTCH PEDAL |
MB316706 |
US $27.38 |
||
|
20011
|
20011
MB407608 SUPPORT, CLUTCH PEDAL |
MB407608 |
US $34.78 |
||
|
20014
|
20014
MB058634 BUSHING, CLUTCH PEDAL18.3x10 |
MB058634 |
US $3.56 |
||
|
20016
|
20016
MA103567 CAP, ACCEL PEDAL ARM STOPPER BOLT |
MA103567 |
US $4.10 |
||
|
20044
|
20044
MB316710 SPRING, CLUTCH PEDAL RETURN |
MB316710 |
US $6.66 |
||
|
20044
|
20044
MB407586 SPRING, CLUTCH PEDAL RETURN |
MB407586 |
US $6.07 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20092C
|
20092C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20092D
|
20092D
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
20098
|
20098
MB407944
BOLT,CLUTCH PEDAL
|
MB407944 |
— | ||
|
20098B
|
20098B
MA103599 BOLT, CLUTCH PEDAL8x35 |
MA103599 |
US $4 |
||
|
20098B
|
20098B
MS100123 BOLT, ACCEL CONTROL EQUIP8x35 |
MS100123 |
US $2.81 |
||
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53012
|
53012
MB277652 PEDAL, BRAKE |
MB277652 |
US $36.26 |
||
|
53034
|
53034
MB316645 SPRING, BRAKE PEDAL RETURN |
MB316645 |
US $6.07 |
||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092B
|
53092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098C
|
53098C
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53098E
|
53098E
MB277659 BOLT, CLUTCH PEDAL10x101.6 |
MB277659 |
US $4.44 |
||
|
53305
|
53305
MB277876 MEMBER, PEDAL SUPPORT |
MB277876 |
US $112.48 |
||
|
53305
|
53305
MB534438 MEMBER, PEDAL SUPPORT |
MB534438 |
US $111 |
||
|
66801
|
66801
MB312405 BRACKET, FOOTREST |
MB312405 |
US $52.54 |
||
|
66801
|
66801
MB352880 BRACKET, FOOTREST |
MB352880 |
US $20.72 |
||
|
66802
|
66802
MB253951 FOOTREST |
MB253951 |
US $52.54 |
||
|
66802
|
66802
MB474856
FOOTREST
|
MB474856 |
— | ||
|
66897
|
66897
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
