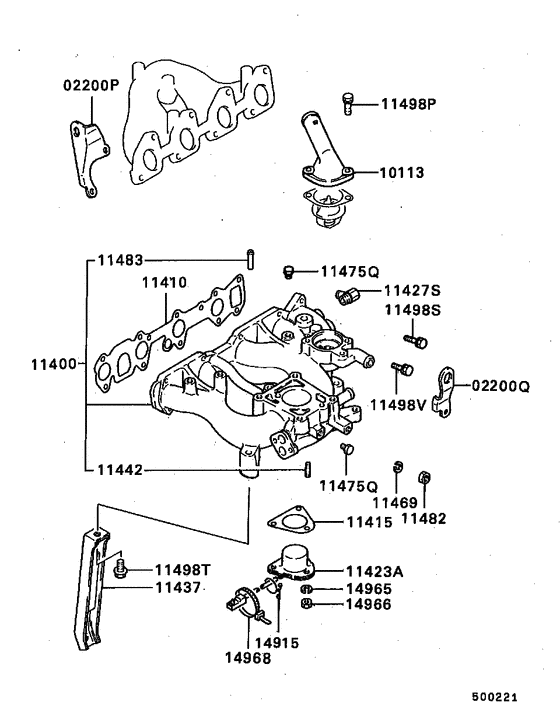

Inlet manifold (8606.1- EXC SWEDEN) Diagram Mitsubishi LANCER
- Year
- 1984 - 1988
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200P
|
02200P
MD075163 ENGINE HANGER |
MD075163 |
US $15.54 |
||
|
02200Q
|
02200Q
MD068992 ENGINE HANGER |
MD068992 |
US $9.62 |
||
|
10113
|
10113
MD074349 FITTING,COOLING WATER OUTLET HOSE |
MD074349 |
US $34.04 |
||
|
10113
|
10113
MD099966
FITTING, COOLING WATER OUTLET HOSE
|
MD099966 |
— | ||
| replacement | |||||
|
10113
|
10113
MD104718
FITTING, COOLING WATER OUTLET HOSE
|
MD104718 |
— | ||
|
11400
|
11400
MD083248 MANIFOLD,INLET |
MD083248 |
US $483.39 |
||
|
11400
|
11400
MD104703 MANIFOLD, INLET |
MD104703 |
US $834.29 |
||
|
11410
|
11410
MD060451 GASKET, INLET MANIFOLD |
MD060451 |
US $14.36 |
||
|
11427S
|
11427S
MD081379 JOINT, INLET MANIFOLD10 |
MD081379 |
US $13.32 |
||
|
11437
|
11437
MD104704 STAY, INLET MANIFOLD |
MD104704 |
US $52.54 |
||
|
11442
|
11442
MS401400 STUD, INLET MANIFOLD6x12 |
MS401400 |
US $2.66 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11475Q
|
11475Q
MD014929 PLUG, CYLINDER HEADTaper,1/8 |
MD014929 |
US $3.28 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483
|
11483
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11498P
|
11498P
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
11498P
|
11498P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
11498S
|
11498S
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
11498T
|
11498T
MF240080 BOLT, ENG RR MOUNTINGWasher assembled,10x20 |
MF240080 |
from US $1.21 |
||
|
11498V
|
11498V
MF241258 BOLT, WATER PUMPWasher assembled,8x32 |
MF241258 |
US $2.87 |
||
|
14965
|
14965
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
14966
|
14966
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
