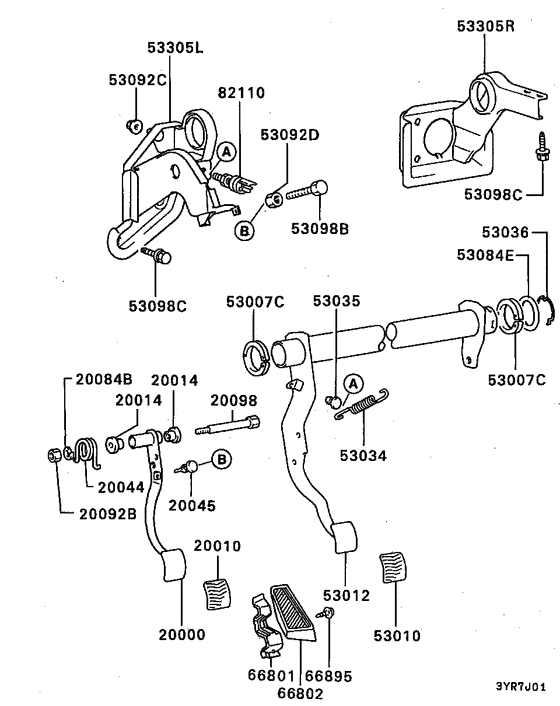

Brake & clutch pedal (LHD..M/T) Diagram Mitsubishi LANCER
- Year
- 1984 - 1988
- Sales region
- EUR
- Note
- GL(4DR HATCHBACK),5FM/T LHD
- transmission
- 5FM/T
- grade
- GL
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB316582
PEDAL,CLUTCH
|
MB316582 |
— | ||
|
20000
|
20000
MB407943
PEDAL,CLUTCH
|
MB407943 |
— | ||
|
20010
|
20010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
20014
|
20014
MB058634 BUSHING, CLUTCH PEDAL18.3x10 |
MB058634 |
US $3.56 |
||
|
20014
|
20014
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
20044
|
20044
MB407946
SPRING,CLUTCH PEDAL RETURN
|
MB407946 |
— | ||
|
20045
|
20045
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
20045
|
20045
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MB407944
BOLT,CLUTCH PEDAL
|
MB407944 |
— | ||
|
53007C
|
53007C
MB193583 BUSHING, BRAKE PEDAL47.5x14 |
MB193583 |
US $3.11 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53012
|
53012
MB316580
PEDAL,BRAKE
|
MB316580 |
— | ||
|
53012
|
53012
MB407942
PEDAL,BRAKE
|
MB407942 |
— | ||
|
53034
|
53034
MB082482 SPRING,BRAKE PEDAL RETURN |
MB082482 |
US $5.92 |
||
|
53034
|
53034
MB407945
SPRING,BRAKE PEDAL RETURN
|
MB407945 |
— | ||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53036
|
53036
MB193837
STOPPER,BRAKE PEDAL SHAFT
|
MB193837 |
— | ||
|
53084E
|
53084E
MB193836 WASHER, BRAKE PEDALPlain,38 |
MB193836 |
US $3.11 |
||
|
53092C
|
53092C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
53092D
|
53092D
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
53098B
|
53098B
MA103599 BOLT, CLUTCH PEDAL8x35 |
MA103599 |
US $4 |
||
|
53098C
|
53098C
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53305L
|
53305L
MB316577
MEMBER,PEDAL SUPPORT,LH
|
MB316577 |
— | ||
|
53305L
|
53305L
MB407941
MEMBER,PEDAL SUPPORT,LH
|
MB407941 |
— | ||
|
53305R
|
53305R
MB316579
MEMBER,PEDAL SUPPORT,RH
|
MB316579 |
— | ||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
