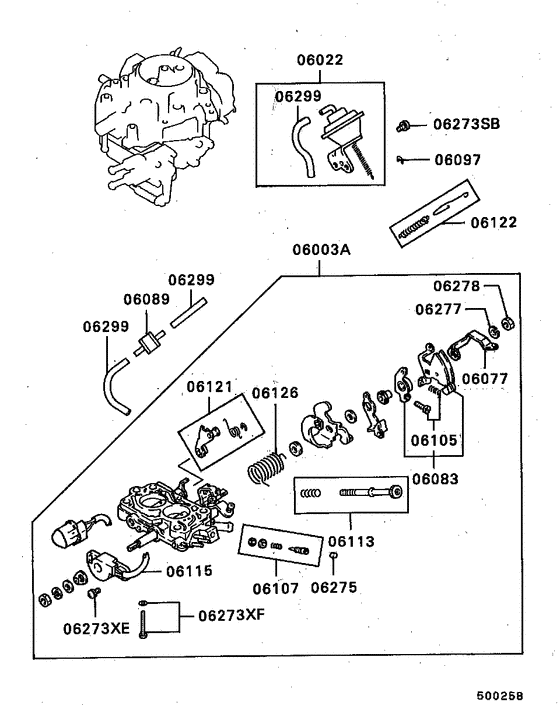

Carburetor (WITH UCC (INNER PARTS LOWER)) Diagram Mitsubishi LANCER
- Year
- 1988 - 1992
- Sales region
- EUR
- Note
- EL(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- EL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06003A
|
06003A
MD617288
THROTTLE BODY ASSY,CARB
|
MD617288 |
— | ||
|
06003A
|
06003A
MD617289
THROTTLE BODY ASSY,CARB
|
MD617289 |
— | ||
|
06003A
|
06003A
MD617556
THROTTLE BODY ASSY,CARB
|
MD617556 |
— | ||
|
06003A
|
06003A
MD617557
THROTTLE BODY ASSY,CARB
|
MD617557 |
— | ||
|
06003A
|
06003A
MD617619
THROTTLE BODY ASSY,CARB
|
MD617619 |
— | ||
|
06003A
|
06003A
MD617620
THROTTLE BODY ASSY,CARB
|
MD617620 |
— | ||
|
06022
|
06022
MD612711
CHAMBER KIT,CARB DEPRESSION
|
MD612711 |
— | ||
|
06022
|
06022
MD617616
CHAMBER KIT,CARB DEPRESSION
|
MD617616 |
— | ||
|
06077
|
06077
MD617290
LEVER KIT,CARB A/C IDLE ADJUSTING
|
MD617290 |
— | ||
|
06083
|
06083
MD612734
LEVER KIT,CARB THROTTLE
|
MD612734 |
— | ||
|
06089
|
06089
MD612741 ORIFICE, CARB CHOKE BREAKER |
MD612741 |
US $64.38 |
||
|
06089
|
06089
MD617626 ORIFICE, CARB DEPRESSION CHAMBER |
MD617626 |
US $45.88 |
||
|
06097
|
06097
MD612426 SNAP RING, CARB DEPRESSION CHAMBER |
MD612426 |
US $4.44 |
||
|
06105
|
06105
MD608479 ADJUSTING SCREW KIT, FAST IDLE |
MD608479 |
US $15.54 |
||
|
06107
|
06107
MD606939 SCREW, CARB INR |
MD606939 |
US $24.62 |
||
|
06113
|
06113
MD617281
SCREW,CARB INR
|
MD617281 |
— | ||
|
06115
|
06115
MD617163 SENSOR, CARB THROTTLE POSITION |
MD617163 |
US $273.80 |
||
|
06115
|
06115
MD617604 SENSOR, CARB THROTTLE POSITION |
MD617604 |
US $273.80 |
||
|
06121
|
06121
MD612422 SPRING KIT, CARB SECONDARY THROTTLE |
MD612422 |
US $18.50 |
||
|
06122
|
06122
MD612737 SPRING KIT, CARB THROTTLE RETURN |
MD612737 |
US $31.82 |
||
|
06126
|
06126
MD608116
SPRING,CARB THROTTLE LINK RETURN
|
MD608116 |
— | ||
|
06126
|
06126
MD612536 SPRING, CARB THROTTLE RETURN |
MD612536 |
US $12.58 |
||
|
06273SB
|
06273SB
MF350047 SCREW, FLYWHEEL HOUSINGWasher assembled,5x10 |
MF350047 |
US $2.05 |
||
|
06273XE
|
06273XE
MD612430 SCREW, CARB INR |
MD612430 |
US $7.55 |
||
|
06273XF
|
06273XF
MD612462 SCREW, CARB INR |
MD612462 |
US $13.76 |
||
|
06275
|
06275
MD608086
PLUG,CARB INR
|
MD608086 |
— | ||
|
06277
|
06277
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278
|
06278
MD600059 NUT, CARB INR |
MD600059 |
US $3.26 |
||
|
06299
|
06299
MD606951
HOSE, CARB DEPRESSION CHAMBER
|
MD606951 |
— | ||
| replacement | |||||
|
06299
|
06299
MD617777 HOSE, CARB INR1000 |
MD617777 |
US $35.57 |
||
