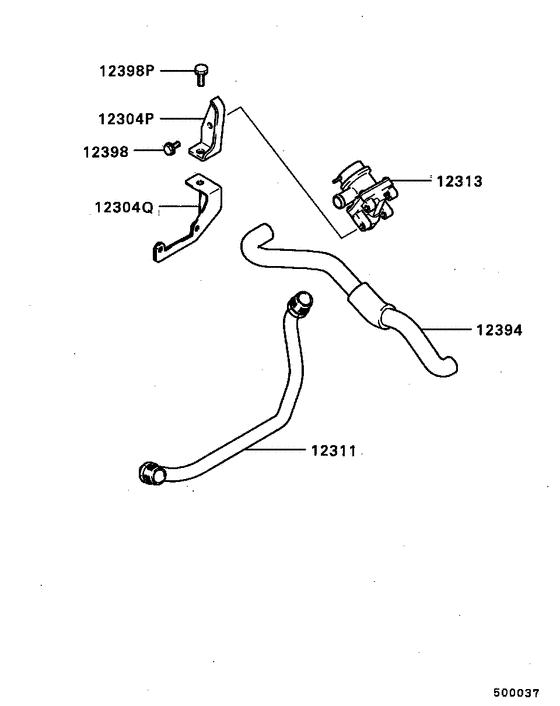

Secondary air supply (9006.1-) Diagram Mitsubishi LANCER
- Year
- 1988 - 1992
- Sales region
- EUR
- Note
- EL(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- EL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12304P
|
12304P
MD147543
BRACKET,SECONDARY AIR REED VALVE
|
MD147543 |
— | ||
|
12304Q
|
12304Q
MD147544
BRACKET,SECONDARY AIR REED VALVE
|
MD147544 |
— | ||
|
12311
|
12311
MD133829
PIPE,SECONDARY AIR
|
MD133829 |
— | ||
|
12311
|
12311
MD147540
PIPE,SECONDARY AIR
|
MD147540 |
— | ||
|
12313
|
12313
MD111527
VALVE,SECONDARY AIR REED
|
MD111527 |
— | ||
|
12313
|
12313
MD147545
VALVE,SECONDARY AIR REED
|
MD147545 |
— | ||
|
12394
|
12394
MD107583 HOSE, SECONDARY AIR SUPPLY |
MD107583 |
US $13.47 |
||
|
12394
|
12394
MD158390
HOSE,SECONDARY AIR SUPPLY
|
MD158390 |
— | ||
|
12398
|
12398
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
12398
|
12398
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
12398
|
12398
MF140024 BOLT, CYLINDER HEADFlange,8x18 |
MF140024 |
from US $0.99 |
||
|
12398P
|
12398P
MF247280 BOLT,FR BUMPER |
MF247280 |
US $2.22 |
