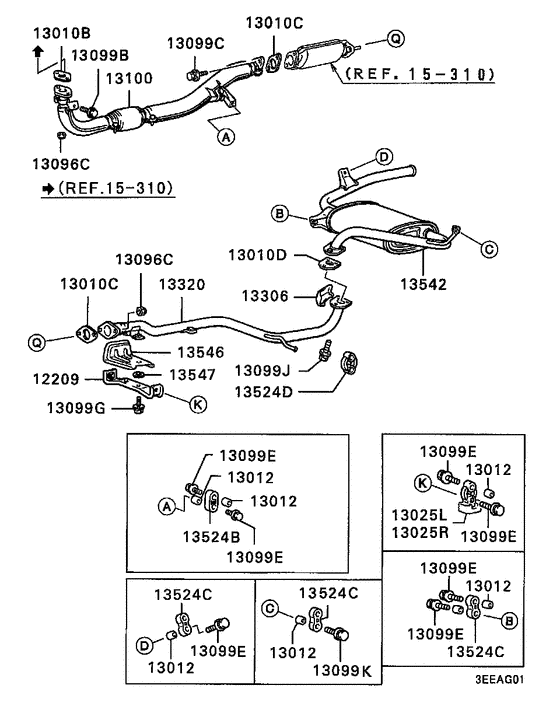

Exhaust pipe & muffler (EXC.HEAT PROTECTOR (ECI)) Diagram Mitsubishi LANCER
- Year
- 1988 - 1990
- Sales region
- EUR
- Note
- EL,4FM/T LHD
- drive
- 2WD
- transmission
- 4FM/T
- grade
- EL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB376933 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB376933 |
US $22.20 |
||
|
12209
|
12209
MB514687
BRACKET,UNDER CATALYTIC CONVERTER HANGER
|
MB514687 |
— | ||
|
13010B
|
13010B
MB431544 GASKET, EXHAUST PIPE |
MB431544 |
US $9.03 |
||
|
13010B
|
13010B
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010C
|
13010C
MB313111 GASKET, EXHAUST PIPE |
MB313111 |
US $6.81 |
||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010D
|
13010D
MB313111 GASKET, EXHAUST PIPE |
MB313111 |
US $6.81 |
||
|
13010D
|
13010D
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $6.20 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13025L
|
13025L
MB612148 HANGER, EXHAUST PIPE, LH |
MB612148 |
US $41.72 |
||
|
13025R
|
13025R
MB612149
HANGER,EXHAUST PIPE,RH
|
MB612149 |
— | ||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099B
|
13099B
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
13099C
|
13099C
MS240118 BOLT, ENG SUPPORT RODWasher assembled,12x30 |
MS240118 |
from US $1.62 |
||
|
13099E
|
13099E
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099E
|
13099E
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099G
|
13099G
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099J
|
13099J
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099K
|
13099K
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13100
|
13100
MB548398
PIPE,EXHAUST,FR
|
MB548398 |
— | ||
|
13100
|
13100
MB924424
PIPE,EXHAUST,FR
|
MB924424 |
— | ||
|
13306
|
13306
MB549110 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549110 |
US $7.84 |
||
|
13306
|
13306
MB549111 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549111 |
US $8.88 |
||
|
13320
|
13320
MB577356
PIPE,EXHAUST,CTR
|
MB577356 |
— | ||
|
13320
|
13320
MB611747
PIPE,EXHAUST,CTR
|
MB611747 |
— | ||
|
13524B
|
13524B
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524B
|
13524B
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524C
|
13524C
MB252856 HANGER, CATALYTIC CONVERTER |
MB252856 |
US $9.92 |
||
|
13524D
|
13524D
MB376954 HANGER, EXHAUST MUFFLER |
MB376954 |
from US $10.43 |
||
|
13542
|
13542
MB514484 MUFFLER, EXHAUST MAIN |
MB514484 |
US $375.65 |
||
|
13542
|
13542
MB687247 MUFFLER, EXHAUST MAIN |
MB687247 |
US $375.65 |
||
|
13542
|
13542
MB687505 MUFFLER, EXHAUST MAIN |
MB687505 |
US $391.66 |
||
|
13546
|
13546
MB577741
PROTECTOR,EXHAUST MUFFLER HANGER
|
MB577741 |
— | ||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
