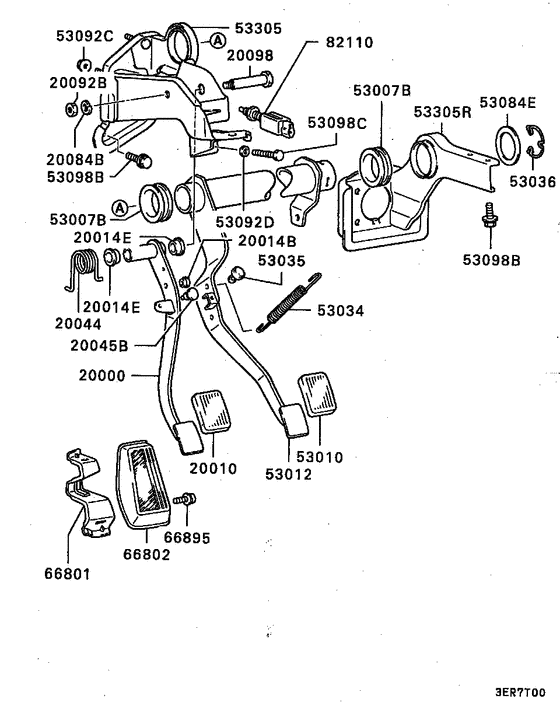

Brake & clutch pedal Diagram Mitsubishi LANCER
- Year
- -
- Sales region
- EUR/MMNA
- Note
- GLXI(MPI/ANTI-POLL),5FM/T(DSM) GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB599951
PEDAL,CLUTCH
|
MB599951 |
— | ||
|
20010
|
20010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
20014B
|
20014B
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20014E
|
20014E
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
20044
|
20044
MB407946
SPRING,CLUTCH PEDAL RETURN
|
MB407946 |
— | ||
|
20045B
|
20045B
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
20045B
|
20045B
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MB407944
BOLT,CLUTCH PEDAL
|
MB407944 |
— | ||
|
53007B
|
53007B
MB193583 BUSHING, BRAKE PEDAL47.5x14 |
MB193583 |
US $3.11 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53012
|
53012
MB599954
PEDAL,BRAKE
|
MB599954 |
— | ||
|
53034
|
53034
MB599946
SPRING,BRAKE PEDAL RETURN
|
MB599946 |
— | ||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53036
|
53036
MB193837
STOPPER,BRAKE PEDAL SHAFT
|
MB193837 |
— | ||
|
53084E
|
53084E
MB193836 WASHER, BRAKE PEDALPlain,38 |
MB193836 |
US $3.11 |
||
|
53092C
|
53092C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
53092D
|
53092D
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53098C
|
53098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
53305
|
53305
MB599943
MEMBER,PEDAL SUPPORT
|
MB599943 |
— | ||
|
53305R
|
53305R
MB316579
MEMBER,PEDAL SUPPORT,RH
|
MB316579 |
— | ||
|
66801
|
66801
MB549997
BRACKET,FOOTREST
|
MB549997 |
— | ||
|
66802
|
66802
MB346737
FOOTREST
|
MB346737 |
— | ||
|
66895
|
66895
MS450177 SCREW, OVERFENDERTapping,5x16 |
MS450177 |
from US $2.75 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
