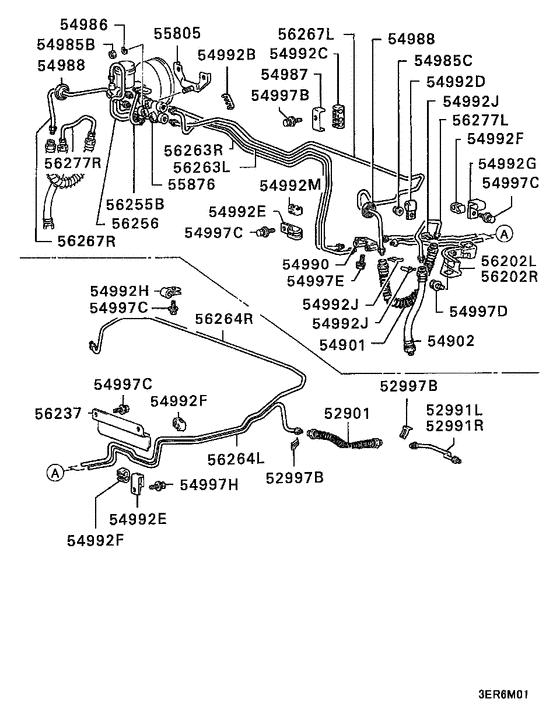

Brake line Diagram Mitsubishi LANCER
- Year
- -
- Sales region
- EUR/MMNA
- Note
- GLXI(MPI/ANTI-POLL),5FM/T(DSM) GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52901
|
52901
MB858848
HOSE,RR BRAKE BODY SIDE
|
MB858848 |
— | ||
|
52991L
|
52991L
MB500546 TUBE, RR AXLE BRAKE, LH |
MB500546 |
US $7.55 |
||
|
52991R
|
52991R
MB500547 TUBE, RR AXLE BRAKE, RH |
MB500547 |
US $7.55 |
||
|
52997B
|
52997B
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54901
|
54901
MB858847 HOSE, FR BRAKE BODY SIDE315 |
MB858847 |
US $29.60 |
||
|
54902
|
54902
MB858844
HOSE,FR BRAKE WHEEL SIDE
|
MB858844 |
— | ||
|
54985B
|
54985B
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54985C
|
54985C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54986
|
54986
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54987
|
54987
MB238423 HOLDER, CLUTCH M/CYL |
MB238423 |
US $3.40 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54990
|
54990
MB277518 JOINT, BRAKE FLUID LINE |
MB277518 |
US $20.72 |
||
|
54992B
|
54992B
MB344693 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MB344693 |
from US $2.63 |
||
|
54992C
|
54992C
MB081826 CLIP, CLUTCH M/CYL4.6-4.6-4.6 |
MB081826 |
US $4.59 |
||
|
54992D
|
54992D
MB004563 CLIP, BRAKE FLUID LINE5.8 |
MB004563 |
US $4.29 |
||
|
54992E
|
54992E
MB151280 CLIP, FUEL RETURN LINE8,10 |
MB151280 |
US $2.74 |
||
|
54992F
|
54992F
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54992G
|
54992G
MB082162 CLIP, FUEL LINE |
MB082162 |
US $4.38 |
||
|
54992H
|
54992H
MB316285 CLIP, RR AXLE BRAKE TUBE4.76 |
MB316285 |
US $6.51 |
||
|
54992J
|
54992J
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992M
|
54992M
MB407207 CLIP, BRAKE FLUID LINE4.6-4.6 |
MB407207 |
US $4.44 |
||
|
54997B
|
54997B
MS240123 BOLT, FUEL LINEWasher assembled,6x25 |
MS240123 |
US $1.37 |
||
|
54997C
|
54997C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
54997D
|
54997D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
54997E
|
54997E
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
54997H
|
54997H
MU241011 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MU241011 |
US $2.37 |
||
|
55805
|
55805
MB277015
BRACKET, BRAKE FLUID LINE VALVE
|
MB277015 |
— | ||
|
55876
|
55876
MB316181 VALVE, BRAKE FLUID PROPORTIONING |
MB316181 |
US $173.16 |
||
|
56202L
|
56202L
MB366277 BRACKET, BRAKE HOSE, LH |
MB366277 |
US $14.36 |
||
|
56202R
|
56202R
MB366278 BRACKET, BRAKE HOSE, RH |
MB366278 |
US $14.36 |
||
|
56237
|
56237
MB534242 PROTECTOR, BRAKE LINE HEAT |
MB534242 |
US $20.72 |
||
|
56255B
|
56255B
MB316894 TUBE, BRAKE M/CYL PRIMARY |
MB316894 |
US $8.62 |
||
|
56256
|
56256
MB534023 TUBE, BRAKE M/CYL SECONDARY |
MB534023 |
US $8.76 |
||
|
56263L
|
56263L
MB534029 TUBE, BRAKE MAIN, FR LH4.76x1307.0 |
MB534029 |
US $19.24 |
||
|
56263R
|
56263R
MB534030 TUBE, BRAKE MAIN, FR RH4.76x1154.0 |
MB534030 |
US $17.76 |
||
|
56264L
|
56264L
MB534025 TUBE, BRAKE MAIN, RR LH4.76x2348.5 |
MB534025 |
US $28.12 |
||
|
56264R
|
56264R
MB534026 TUBE, BRAKE MAIN, RR RH4.76x3387.0 |
MB534026 |
US $39.96 |
||
|
56267L
|
56267L
MB534021 TUBE, FR BRAKE, LH4.76x1409.4 |
MB534021 |
US $18.50 |
||
|
56267R
|
56267R
MB534022 TUBE, FR BRAKE, RH4.76x406 |
MB534022 |
US $9.77 |
||
|
56277L
|
56277L
MB366135 TUBE, FR BRAKE WHEEL SIDE, LH |
MB366135 |
US $9.30 |
||
|
56277R
|
56277R
MB366136 TUBE, FR BRAKE WHEEL SIDE, RH |
MB366136 |
from US $6.83 |
