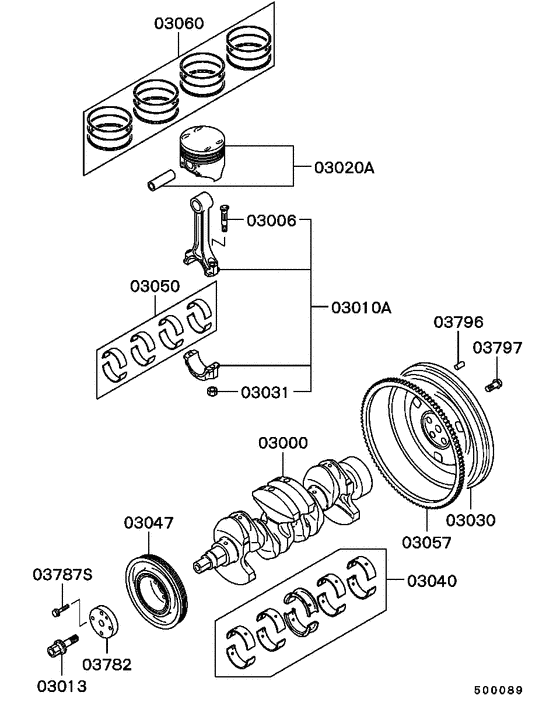

Piston & crankshaft Diagram Mitsubishi LANCER
- Year
- -
- Sales region
- EUR/MMNA
- Note
- GLXI(MPI/ANTI-POLL),5FM/T(DSM) GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD138991 CRANKSHAFT |
MD138991 |
US $1,383.20 |
||
|
03006
|
03006
MD117083 BOLT, CONNROD7x49 |
MD117083 |
from US $2.42 |
||
|
03010A
|
03010A
MD117080 CONNECTING ROD ASSY |
MD117080 |
US $176.12 |
||
| replacement | |||||
|
03010A
|
03010A
MD312667 CONNECTING ROD ASSY |
MD312667 |
from US $119.88 |
||
|
03013
|
03013
MD060126
CENTER BOLT, CRANKSHAFT PULLEY
|
MD060126 |
— | ||
| replacement | |||||
|
03013
|
03013
MD350191 CENTER BOLT, CRANKSHAFT PULLEY12x46 |
MD350191 |
from US $10.43 |
||
|
03020A
|
03020A
MD144900
PISTON & PIN ASSY
|
MD144900 |
— | ||
|
03020A
|
03020A
MD144901 PISTON & PIN ASSY |
MD144901 |
US $88.80 |
||
|
03020A
|
03020A
MD144902
PISTON & PIN ASSY
|
MD144902 |
— | ||
|
03020A
|
03020A
MD148156 PISTON & PIN ASSY |
MD148156 |
US $91.76 |
||
|
03020A
|
03020A
MD148157 PISTON & PIN ASSY |
MD148157 |
US $88.80 |
||
|
03020A
|
03020A
MD148158 PISTON & PIN ASSY |
MD148158 |
US $91.76 |
||
|
03020A
|
03020A
MD148159 PISTON & PIN ASSY |
MD148159 |
US $88.80 |
||
|
03030
|
03030
MD030645 FLYWHEEL |
MD030645 |
US $253.08 |
||
|
03031
|
03031
MD117084 NUT, CONNROD7 |
MD117084 |
from US $3.65 |
||
|
03040
|
03040
MD147999 BEARING SET, CRANKSHAFTPlain,std |
MD147999 |
US $131.33 |
||
|
03047
|
03047
MD145529 PULLEY, CRANKSHAFTRibbed |
MD145529 |
from US $129.54 |
||
|
03050
|
03050
MD143090 BEARING SET, CONNROD |
MD143090 |
US $103.28 |
||
|
03057
|
03057
MD030629 RING GEAR, FLYWHEELN=106 |
MD030629 |
US $207.94 |
||
|
03060
|
03060
MD158549 RING SET,PISTON |
MD158549 |
US $205.72 |
||
|
03060
|
03060
MD158550
RING SET,PISTON
|
MD158550 |
— | ||
|
03060
|
03060
MD158551
RING SET,PISTON
|
MD158551 |
— | ||
|
03060
|
03060
MD158552
RING SET,PISTON
|
MD158552 |
— | ||
|
03060
|
03060
MD158553 RING SET,PISTON |
MD158553 |
US $205.72 |
||
|
03782
|
03782
MD112736 WASHER, CRANKSHAFT PULLEY62 |
MD112736 |
US $3.70 |
||
|
03787S
|
03787S
MF140411 BOLT, CRANKSHAFT PULLEYFlange,6x30 |
MF140411 |
US $2.66 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.81 |
||
|
03797
|
03797
MD008839 BOLT, FLYWHEELFlange,12x26 |
MD008839 |
from US $2.87 |
||
