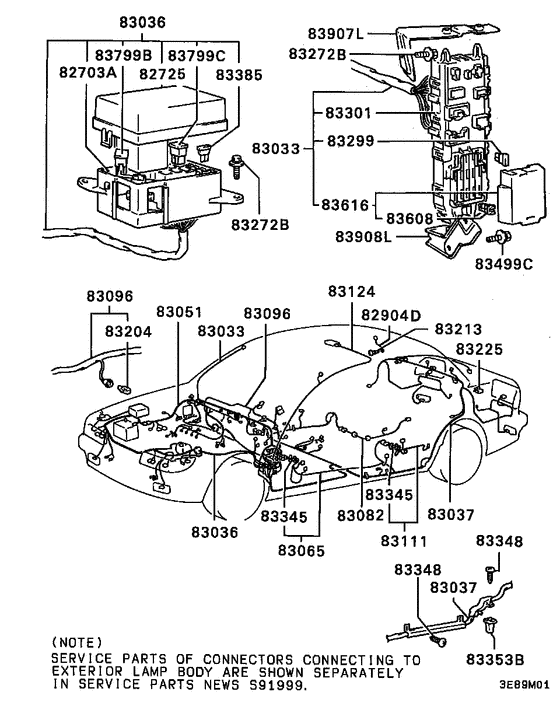

Wiring & attaching parts (WIRING HARNESS) Diagram Mitsubishi LANCER
- Year
- -
- Sales region
- EUR/MMNA
- Note
- GLXI(MPI/ANTI-POLL),5FM/T(DSM) GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703A
|
82703A
MB542090 BOX ASSY, RELAY |
MB542090 |
US $125.06 |
||
|
82725
|
82725
MB852426
COVER,RELAY BOX
|
MB852426 |
— | ||
|
82904D
|
82904D
MB572561 CABLE, DEFOGGER(-) |
MB572561 |
US $4.44 |
||
|
82904D
|
82904D
MB686978
CABLE,DEFOGGER
|
MB686978 |
— | ||
|
83033
|
83033
MB942500
HARNESS,BODY MAIN
|
MB942500 |
— | ||
|
83036
|
83036
MB852528
HARNESS,CHASSIS,FR
|
MB852528 |
— | ||
|
83037
|
83037
MB852752
HARNESS,CHASSIS,RR
|
MB852752 |
— | ||
|
83051
|
83051
MB686670
HARNESS,CONTROL
|
MB686670 |
— | ||
|
83065
|
83065
MB617253
HARNESS,FR DOOR
|
MB617253 |
— | ||
|
83065
|
83065
MB617254
HARNESS,FR DOOR
|
MB617254 |
— | ||
|
83082
|
83082
MB686953
HARNESS,FUEL GAUGE UNIT
|
MB686953 |
— | ||
|
83096
|
83096
MB801394
HARNESS,INSTRUMENT PANEL
|
MB801394 |
— | ||
|
83111
|
83111
MB543463 HARNESS, RR DOORLh/rh |
MB543463 |
US $59.94 |
||
|
83124
|
83124
MB852584
HARNESS,ROOM LAMP
|
MB852584 |
— | ||
|
83204
|
83204
MB562619 BULB, INSTRUMENT PANEL ASHTRAY14v-1.4w |
MB562619 |
US $4.29 |
||
|
83213
|
83213
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83225
|
83225
MU481041 CLIP, TRUNK LID LOCKING9.5 |
MU481041 |
US $2.96 |
||
|
83272B
|
83272B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83299
|
83299
MS810986 FUSE, A/C CONTROL EQUIPBlade type,10a |
MS810986 |
US $3.55 |
||
|
83299
|
83299
MS810987 FUSE, CHASSIS WIRINGBlade type,15a |
MS810987 |
US $3.55 |
||
|
83299
|
83299
MS810988 FUSE, A/C CONTROL EQUIPBlade type,20a |
MS810988 |
US $1.63 |
||
|
83301
|
83301
MB542100 BLOCK, CHASSIS HARNESS JUNCTION |
MB542100 |
US $185 |
||
|
83345
|
83345
MB529424 GROMMET, DOOR WIRINGPlastic,rubber,30x58-26x56 |
MB529424 |
US $28.12 |
||
|
83345
|
83345
MB529428 GROMMET, DOOR WIRINGPlastic,rubber,22x42-26x35 |
MB529428 |
US $10.80 |
||
|
83348
|
83348
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83353B
|
83353B
MU480032 GROMMET, SIDE AIR DAM5 |
MU480032 |
from US $0.96 |
||
|
83385
|
83385
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83385
|
83385
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
83499C
|
83499C
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
83608
|
83608
MB542110 PULLER, FUSE |
MB542110 |
US $3.11 |
||
|
83616
|
83616
MB542106
COVER,FUSE BOX
|
MB542106 |
— | ||
|
83799B
|
83799B
MU840021 FUSIBLE LINK80a,screw up type |
MU840021 |
from US $6.86 |
||
|
83799C
|
83799C
MU840000
FUSIBLE LINK
|
MU840000 |
— | ||
|
83799C
|
83799C
MU840015 FUSIBLE LINK30a,conn type |
MU840015 |
from US $9.03 |
||
|
83799C
|
83799C
MU840016 FUSIBLE LINK40a,conn type |
MU840016 |
from US $7.98 |
||
|
83907L
|
83907L
MB543551
BRACKET,JUNCTION BLOCK,UPR LH
|
MB543551 |
— | ||
|
83908L
|
83908L
MB543553
BRACKET,JUNCTION BLOCK,LWR LH
|
MB543553 |
— |
