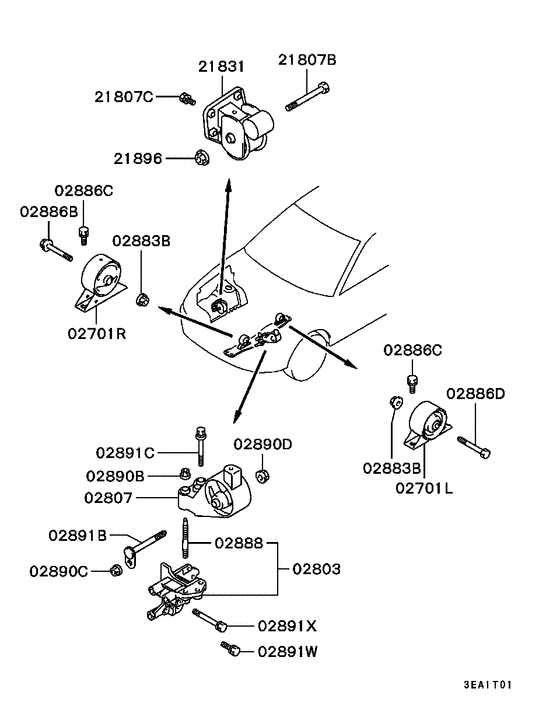

Engine mounting & support (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MB891967
BRACKET,ENG ROLL STOPPER,LH
|
MB891967 |
— | ||
|
02701R
|
02701R
MB891964
BRACKET,ENG ROLL STOPPER,RH
|
MB891964 |
— | ||
|
02803
|
02803
MD177501 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD177501 |
US $125.06 |
||
|
02807
|
02807
MB892123
BRACKET,ENG FR MOUNTING
|
MB892123 |
— | ||
|
02883B
|
02883B
MB176637 NUT, ENG SUPPORT RODWasher assembled,10 |
MB176637 |
US $4.24 |
||
|
02886B
|
02886B
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.40 |
||
|
02886C
|
02886C
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02886D
|
02886D
MB871930 BOLT, ENG SUPPORT RODCone point,10x81 |
MB871930 |
US $6.70 |
||
|
02888
|
02888
MD171367 STUD, ENG MOUNTING10x65 |
MD171367 |
US $6.98 |
||
|
02890B
|
02890B
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02890B
|
02890B
MB288462V
nut
|
MB288462V |
— | ||
|
02890C
|
02890C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02890D
|
02890D
MB176638 NUT, ENG SUPPORT RODWasher assembled,12 |
MB176638 |
US $5.61 |
||
|
02891B
|
02891B
MB309010 BOLT, ENG MOUNTING |
MB309010 |
US $9.62 |
||
|
02891C
|
02891C
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891W
|
02891W
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891X
|
02891X
MF241296 BOLT, ENG MOUNTINGWasher assembled,10x80 |
MF241296 |
US $2.74 |
||
|
21807B
|
21807B
MF104928 BOLT, T/M MOUNTING12x110 |
MF104928 |
from US $3.96 |
||
|
21807C
|
21807C
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
21831
|
21831
MB891483
BRACKET,T/M MOUNTING BODY SIDE
|
MB891483 |
— | ||
|
21896
|
21896
MB176638 NUT, ENG SUPPORT RODWasher assembled,12 |
MB176638 |
US $5.61 |
||
