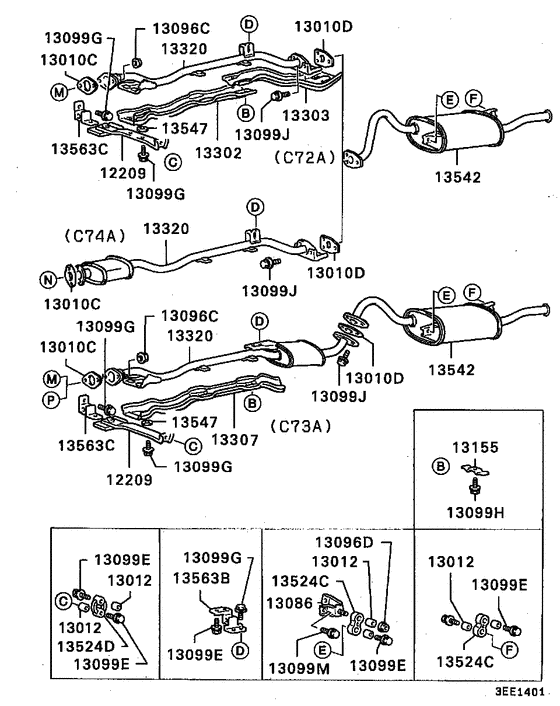

Exhaust pipe & muffler (CENTER & REAR) Diagram Mitsubishi LANCER
- Year
- 1989 - 1991
- Sales region
- Japan
- Note
- SX-SALOON,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- SX-SALOON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB611622 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB611622 |
US $83.62 |
||
|
13010C
|
13010C
MB156180
GASKET, EXHAUST PIPE
|
MB156180 |
— | ||
| replacement | |||||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010D
|
13010D
MB313110 GASKET, EXHAUST PIPE |
MB313110 |
US $5.92 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13086
|
13086
MB514935 BRACKET, EXHAUST PIPE |
MB514935 |
US $18.50 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096D
|
13096D
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
13099E
|
13099E
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099E
|
13099E
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099G
|
13099G
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099H
|
13099H
MF140002 BOLT, ROCKER COVERFlange,6x10 |
MF140002 |
US $0.96 |
||
| replacement | |||||
|
13099H
|
13099H
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
13099J
|
13099J
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099M
|
13099M
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
13155
|
13155
MB059541 SPRING, EXHAUST MANIFOLD HEAT PROTECTOR |
MB059541 |
US $2.52 |
||
|
13302
|
13302
MB577745 PROTECTOR, EXHAUST CTR PIPE, FR LWR |
MB577745 |
US $39.22 |
||
|
13303
|
13303
MB376925 GUARD, EXHAUST PIPE UNDER |
MB376925 |
US $27.38 |
||
|
13320
|
13320
MB514930 PIPE, EXHAUST, CTR |
MB514930 |
US $278.24 |
||
|
13524C
|
13524C
MB252856 HANGER, CATALYTIC CONVERTER |
MB252856 |
US $9.92 |
||
|
13524D
|
13524D
MB376954 HANGER, EXHAUST MUFFLER |
MB376954 |
from US $10.43 |
||
|
13542
|
13542
MB514925 MUFFLER, EXHAUST MAIN |
MB514925 |
US $375.65 |
||
|
13542
|
13542
MB687050 MUFFLER, EXHAUST MAIN |
MB687050 |
US $413.50 |
||
|
13547
|
13547
MB111793 SEAT, EXHAUST MUFFLER HANGER |
MB111793 |
US $3.55 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13563B
|
13563B
MB514924 SUSPENDER, EXHAUST MUFFLER |
MB514924 |
US $39.96 |
||
|
13563C
|
13563C
MB611575 SUSPENDER, EXHAUST MUFFLER |
MB611575 |
US $30.34 |
||
