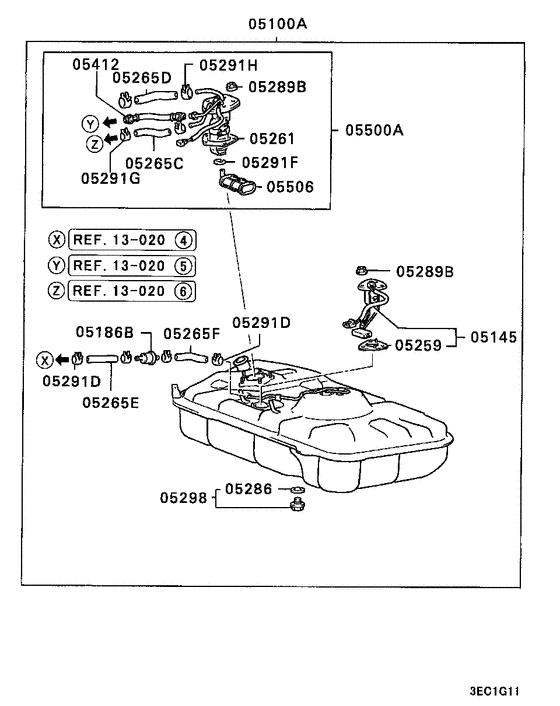

Fuel tank (MPI..TANK DISASSEMBLED PARTS -9009.3) Diagram Mitsubishi LANCER
- Year
- 1989 - 1991
- Sales region
- Japan
- Note
- SR-4,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- SR-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100A
|
05100A
MB554212 FUEL TANK ASSY |
MB554212 |
US $1,377.38 |
||
|
05100A
|
05100A
MB554214 FUEL TANK ASSY |
MB554214 |
US $1,377.38 |
||
|
05100A
|
05100A
MB554216 FUEL TANK ASSY |
MB554216 |
US $1,310.40 |
||
|
05145
|
05145
MB541876 GAUGE UNIT, FUEL TANK |
MB541876 |
US $106.56 |
||
|
05186B
|
05186B
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05259
|
05259
MB382513 GASKET, FUEL TANK GAUGE |
MB382513 |
from US $5.21 |
||
|
05261
|
05261
MB400686 GASKET, FUEL TANK PUMP |
MB400686 |
from US $5.09 |
||
|
05265C
|
05265C
MS605896
HOSE, FUEL TANK
|
MS605896 |
— | ||
| replacement | |||||
|
05265C
|
05265C
MU601799 HOSE, FUEL TANK8x2000 |
MU601799 |
US $87.55 |
||
|
05265D
|
05265D
MB554262 HOSE, FUEL TANK15x165 |
MB554262 |
US $11.40 |
||
|
05265E
|
05265E
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265F
|
05265F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05291D
|
05291D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291F
|
05291F
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05291G
|
05291G
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05291H
|
05291H
MS660174 CLIP, ENG OIL LINED=19.8 |
MS660174 |
US $2.81 |
||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
05412
|
05412
MB433986
HOSE, FUEL HIGH PRESSURE
|
MB433986 |
— | ||
|
05500A
|
05500A
MB400672 FUEL PUMP ASSY |
MB400672 |
US $1,059.97 |
||
|
05500A
|
05500A
MB658463 FUEL PUMP ASSY |
MB658463 |
US $1,054.14 |
||
|
05506
|
05506
MB400814 FILTER, FUEL PUMP |
MB400814 |
US $75.48 |
||
|
05506
|
05506
MB621891 FILTER, FUEL PUMP |
MB621891 |
US $37.74 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
