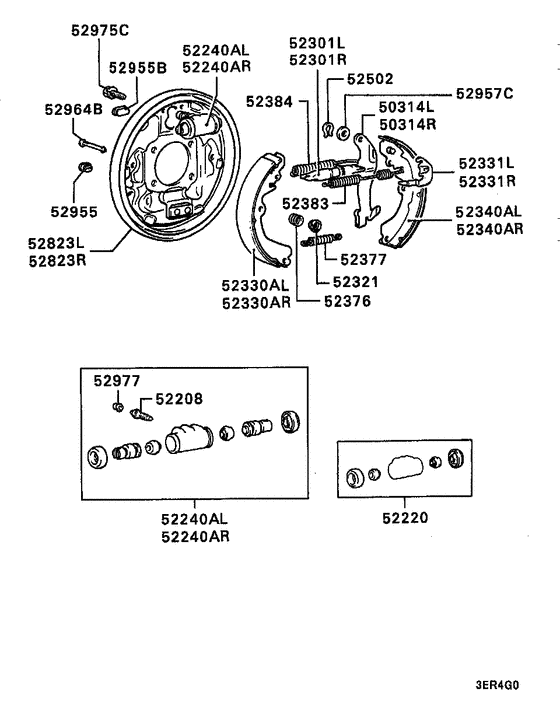

Rear wheel brake (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T RHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50314L
|
50314L
MB668735 LEVER, PARKING BRAKE OPERATING, LH |
MB668735 |
US $15.84 |
||
|
50314R
|
50314R
MB668736 LEVER, PARKING BRAKE OPERATING, RH |
MB668736 |
US $15.84 |
||
|
52208
|
52208
MB618298 BLEEDER, RR BRAKE CALIPER |
MB618298 |
US $8.35 |
||
|
52220
|
52220
MB134975
CUP & BOOT KIT, RR BRAKE CYLINDER
|
MB134975 |
— | ||
| replacement | |||||
|
52220
|
52220
4610A078 CUP BOOT KITRR BRAKE CYL |
4610A078 |
from US $8.97 |
||
|
52240AL
|
52240AL
MB618981 CYLINDER ASSY, RR BRAKE3/4; |
MB618981 |
US $126.72 |
||
|
52240AR
|
52240AR
MB618981 CYLINDER ASSY, RR BRAKE3/4; |
MB618981 |
US $126.72 |
||
|
52301L
|
52301L
MB618195
ADJUSTER, RR BRAKE SHOE SLACK, LH
|
MB618195 |
— | ||
| replacement | |||||
|
52301L
|
52301L
MR475628 ADJUSTER, RR BRAKE SHOE SLACK, RH |
MR475628 |
US $50.16 |
||
|
52301R
|
52301R
MB618196 ADJUSTER, RR BRAKE SHOE SLACK, RH |
MB618196 |
US $57.42 |
||
|
52321
|
52321
MT100169 CUP, PARKING BRAKE SHOE HOLD-DOWN SPRING |
MT100169 |
from US $2.38 |
||
|
52330AL
|
52330AL
MB699334 SHOE ASSY, RR BRAKE PRIMARY, LH |
MB699334 |
US $31.68 |
||
|
52330AR
|
52330AR
MB699334 SHOE ASSY, RR BRAKE PRIMARY, LH |
MB699334 |
US $31.68 |
||
|
52331L
|
52331L
MB668733 LEVER, RR BRAKE SHOE SLACK ADJUSTER, LH |
MB668733 |
US $7.20 |
||
|
52331R
|
52331R
MB668734 LEVER, RR BRAKE SHOE SLACK ADJUSTER, RH |
MB668734 |
US $7.20 |
||
|
52340AL
|
52340AL
MB699335 SHOE ASSY, RR BRAKE SECONDARY, LH |
MB699335 |
US $31.68 |
||
|
52340AR
|
52340AR
MB699336 SHOE ASSY, RR BRAKE SECONDARY, RH |
MB699336 |
US $31.68 |
||
|
52376
|
52376
MB618204 SPRING, RR BRAKE SHOE HOLD-DOWN |
MB618204 |
from US $4.58 |
||
|
52377
|
52377
MB618201 SPRING, RR BRAKE SHOE RETAINER |
MB618201 |
from US $3.90 |
||
|
52383
|
52383
MB618199 SPRING, RR BRAKE SHOE TO LEVER |
MB618199 |
US $10.51 |
||
|
52384
|
52384
MB618200 SPRING, RR BRAKE SHOE TO SHOE |
MB618200 |
from US $5.72 |
||
|
52502
|
52502
MA151648 RETAINER, RR BRAKE CHAMBER |
MA151648 |
from US $1.31 |
||
|
52823L
|
52823L
MB668730 PLATE, RR BRAKE BACKING, LH |
MB668730 |
US $77.04 |
||
|
52823R
|
52823R
MB668731 PLATE, RR BRAKE BACKING, RH |
MB668731 |
US $77.04 |
||
|
52955
|
52955
MA151645 PLUG, RR BRAKERubber,16-12 |
MA151645 |
from US $2.19 |
||
|
52955B
|
52955B
MB618205 PLUG, RR BRAKERubber |
MB618205 |
from US $6.18 |
||
|
52957C
|
52957C
MA151647 WASHER, RR BRAKEWave,8.4 |
MA151647 |
US $3.43 |
||
|
52964B
|
52964B
MB520471 PIN, RR BRAKEHold,3x33.5 |
MB520471 |
from US $6.75 |
||
|
52975C
|
52975C
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
|
52977
|
52977
MV026287 CAP, GEARSHIFT LINK |
MV026287 |
from US $2.74 |
||
