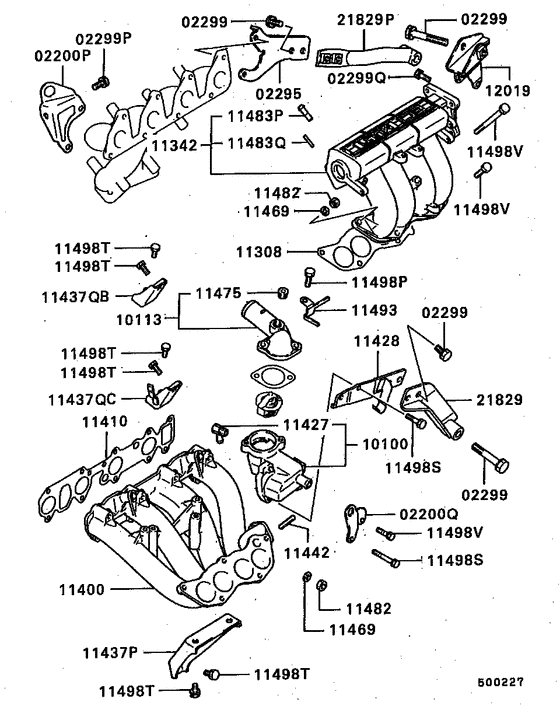

Inlet manifold (ALL) Diagram Mitsubishi LANCER
- Year
- 1989 - 1992
- Sales region
- EUR
- Note
- GLX-I(4WD/MPI/ANTI-POLL),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLX-I
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200P
|
02200P
MD103721 ENGINE HANGER |
MD103721 |
US $7.84 |
||
|
02200P
|
02200P
MD169229
ENGINE HANGER
|
MD169229 |
— | ||
|
02200Q
|
02200Q
MD124683
ENGINE HANGER
|
MD124683 |
— | ||
|
02295
|
02295
MD169120
STAY,ENG HANGER
|
MD169120 |
— | ||
|
02295
|
02295
MD172780
STAY,ENG HANGER
|
MD172780 |
— | ||
|
02299
|
02299
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02299
|
02299
MF241319 BOLT, ENG HANGERWasher assembled,12x70 |
MF241319 |
US $4.51 |
||
|
02299P
|
02299P
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02299Q
|
02299Q
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
10100
|
10100
MD124286
CASE,THERMOSTAT
|
MD124286 |
— | ||
|
10113
|
10113
MD107966 FITTING, COOLING WATER OUTLET HOSE |
MD107966 |
US $30.34 |
||
|
11308
|
11308
MD127981 GASKET, ENG AIR INTAKE SURGE TANK |
MD127981 |
US $17.02 |
||
|
11308
|
11308
MD164697
GASKET,ENG AIR INTAKE SURGE TANK
|
MD164697 |
— | ||
|
11308
|
11308
MD184004 GASKET, ENG AIR INTAKE SURGE TANK |
MD184004 |
US $13.91 |
||
|
11342
|
11342
MD146813
TANK,ENG AIR INTAKE SURGE
|
MD146813 |
— | ||
|
11400
|
11400
MD144046
MANIFOLD,INLET
|
MD144046 |
— | ||
|
11410
|
11410
MD112095 GASKET, INLET MANIFOLD |
MD112095 |
US $12.58 |
||
|
11410
|
11410
MD149535
GASKET,INLET MANIFOLD
|
MD149535 |
— | ||
|
11410
|
11410
MD183417 GASKET, INLET MANIFOLD |
MD183417 |
US $12.73 |
||
|
11427
|
11427
MD081379 JOINT, INLET MANIFOLD10 |
MD081379 |
US $13.32 |
||
|
11428
|
11428
MD154652
BRACKET,INLET MANIFOLD TENSION ROD
|
MD154652 |
— | ||
|
11437P
|
11437P
MD139172
STAY,INLET MANIFOLD
|
MD139172 |
— | ||
|
11437QB
|
11437QB
MD118389 STAY, INLET MANIFOLD |
MD118389 |
US $22.94 |
||
|
11437QC
|
11437QC
MD124419
STAY,INLET MANIFOLD
|
MD124419 |
— | ||
|
11442
|
11442
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
from US $1.07 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11475
|
11475
MS661142 PLUG, CYLINDER HEADTaper,3/8 |
MS661142 |
US $3.56 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483P
|
11483P
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11493
|
11493
MD138356
CLIP,INLET MANIFOLD
|
MD138356 |
— | ||
|
11498P
|
11498P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
11498S
|
11498S
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
11498S
|
11498S
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
11498S
|
11498S
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
11498T
|
11498T
MF240080 BOLT, ENG RR MOUNTINGWasher assembled,10x20 |
MF240080 |
from US $1.21 |
||
|
11498T
|
11498T
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498V
|
11498V
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
11498V
|
11498V
MF241272 BOLT, CARBWasher assembled,8x100 |
MF241272 |
US $4.38 |
||
|
12019
|
12019
MD169118
BRACKET,EXHAUST MANIFOLD TENSION ROD
|
MD169118 |
— | ||
|
12019
|
12019
MD172778
BRACKET,EXHAUST MANIFOLD TENSION ROD
|
MD172778 |
— | ||
|
21829
|
21829
MD154653
ROD,T/M CASE TENSION
|
MD154653 |
— | ||
|
21829P
|
21829P
MD169119
ROD,T/M CASE TENSION
|
MD169119 |
— | ||
|
21829P
|
21829P
MD172779
ROD,T/M CASE TENSION
|
MD172779 |
— |
