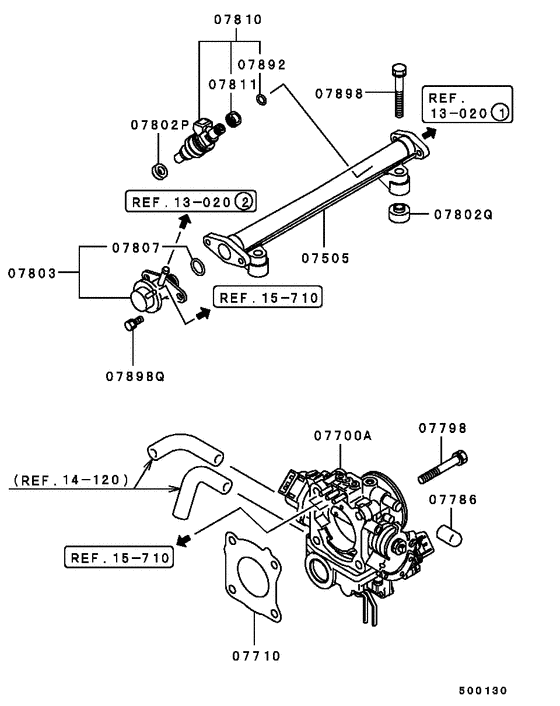

Injector & throttle body (ALL (ASSEMBLY)) Diagram Mitsubishi LANCER
- Year
- 1993 - 1995
- Sales region
- Japan
- Note
- MVV SUPER(MPI),5FM/T
- transmission
- 5FM/T
- grade
- MVV SUPER
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD178913 PIPE, FUEL DELIVERY |
MD178913 |
US $158.36 |
||
|
07700A
|
07700A
MD180769 Throttle Body Assy |
MD180769 |
US $968.24 |
||
|
07710
|
07710
MD181703 GASKET, THROTTLE BODY |
MD181703 |
US $6.81 |
||
|
07710
|
07710
MD184048 GASKET, THROTTLE BODY |
MD184048 |
from US $4.66 |
||
|
07786
|
07786
MD182482 CAP, INLET MANIFOLD5 |
MD182482 |
US $8.88 |
||
|
07798
|
07798
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07803
|
07803
MD178001 REGULATOR, MPI DELIVERY PIPE PRESSURE |
MD178001 |
US $104.34 |
||
|
07807
|
07807
MD604696 O-RING, FUEL REGULATOR7.8 |
MD604696 |
US $6.43 |
||
|
07810
|
07810
MD181700 INJECTOR KIT, FUEL |
MD181700 |
US $251.60 |
||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07898
|
07898
MF240064 BOLT, OIL FILTERWasher assembled,8x55 |
MF240064 |
US $4.51 |
||
|
07898Q
|
07898Q
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
|
