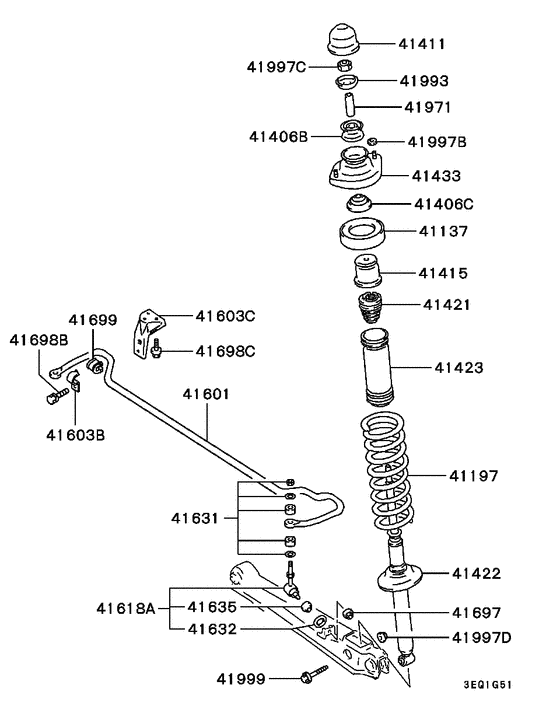

Rear susp (STRUT,STABILIZER,ETC.(9202.3-)) Diagram Mitsubishi LANCER
- Year
- 1991 - 1996
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41137
|
41137
MB809280 PAD, RR SUSP SPRING, UPR |
MB809280 |
from US $8.21 |
||
|
41197
|
41197
MB809273 SPRING, RR SUSP COIL |
MB809273 |
US $76.96 |
||
|
41197
|
41197
MB809274 SPRING, RR SUSP COIL |
MB809274 |
US $74 |
||
|
41406B
|
41406B
MB515579
BUSHING, RR SUSP COIL SPRING
|
MB515579 |
— | ||
| replacement | |||||
|
41406B
|
41406B
MR130231 BUSHING, RR SUSP COIL SPRING |
MR130231 |
from US $4.27 |
||
|
41406C
|
41406C
MB515578
BUSHING, RR SUSP COIL SPRING
|
MB515578 |
— | ||
| replacement | |||||
|
41406C
|
41406C
MR130230 BUSHING, RR SUSP COIL SPRING |
MR130230 |
from US $5.06 |
||
|
41411
|
41411
MB844817 CAP, RR SUSP STRUT |
MB844817 |
US $13.27 |
||
|
41415
|
41415
MB809281 CUP, RR SHOCK ABSORBER |
MB809281 |
from US $8.81 |
||
|
41421
|
41421
MB809285 DAMPER, RR SHOCK ABSORBER |
MB809285 |
US $34.88 |
||
|
41422
|
41422
MB809270 SHOCK ABSORBER, RR SUSP |
MB809270 |
US $187.96 |
||
|
41422
|
41422
MB809271 SHOCK ABSORBER, RR SUSP |
MB809271 |
US $186.48 |
||
|
41423
|
41423
MB809284 COVER, RR SHOCK ABSORBER |
MB809284 |
from US $10.84 |
||
|
41433
|
41433
MB910847 INSULATOR, RR SHOCK ABSORBER |
MB910847 |
US $43.09 |
||
|
41433
|
41433
MR171927 INSULATOR, RR SUSP STRUT |
MR171927 |
US $54.02 |
||
|
41601
|
41601
MB809348
BAR,RR SUSP STABILIZER
|
MB809348 |
— | ||
|
41601
|
41601
MB809349
BAR, RR SUSP STABILIZER
|
MB809349 |
— | ||
|
41603B
|
41603B
MB910162 BRACKET, RR SUSP STABILIZER BAR |
MB910162 |
US $43.09 |
||
|
41603C
|
41603C
MB809358 BRACKET, RR SUSP STABILIZER BAR |
MB809358 |
US $27.36 |
||
|
41603C
|
41603C
MB809359 BRACKET, RR SUSP STABILIZER BAR |
MB809359 |
US $27.36 |
||
|
41618A
|
41618A
MB809354 LINK ASSY, RR SUSP STABILIZER BAR |
MB809354 |
US $81.40 |
||
| replacement | |||||
|
41618A
|
41618A
4056A021 LINK ASSY, RR SUSP STABILIZER BAR |
4056A021 |
US $85.84 |
||
|
41618A
|
41618A
MB809355
LINK ASSY,RR SUSP STABILIZER BAR
|
MB809355 |
— | ||
| replacement | |||||
|
41618A
|
41618A
4056A044 New Genuine Part |
4056A044 |
US $51.06 |
||
|
41631
|
41631
MB597604 LINK KIT, FR SUSP STABILIZER |
MB597604 |
US $20.72 |
||
|
41632
|
41632
MB633060
RING, FR SUSP STABILIZER LINK DUST COVER
|
MB633060 |
— | ||
| replacement | |||||
|
41632
|
41632
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $8.34 |
||
|
41635
|
41635
MB518785 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST |
MB518785 |
from US $7.80 |
||
|
41697
|
41697
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
41698B
|
41698B
MB142761 BOLT, FR SUSP STABILIZERWasher assembled,8x25 |
MB142761 |
from US $1.44 |
||
|
41698C
|
41698C
MF240080 BOLT, ENG RR MOUNTINGWasher assembled,10x20 |
MF240080 |
from US $1.21 |
||
|
41699
|
41699
MB809356
BUSHING,RR SUSP STABILIZER
|
MB809356 |
— | ||
|
41699
|
41699
MB809357
BUSHING, RR SUSP STABILIZER
|
MB809357 |
— | ||
|
41971
|
41971
MB871748 COLLAR, RR SUSP COIL SPRING |
MB871748 |
from US $2.16 |
||
|
41993
|
41993
MB242360 WASHER, RR SUSP COIL SPRING10.2 |
MB242360 |
from US $2.40 |
||
|
41997B
|
41997B
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
41997B
|
41997B
MB288462V
nut
|
MB288462V |
— | ||
|
41997B
|
41997B
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
41997C
|
41997C
MS440002 NUT, ENG RR MOUNTINGSelf locking,10 |
MS440002 |
from US $2.26 |
||
|
41997D
|
41997D
MB288463 NUT, FR WHEEL HUBFlange self locking,12 |
MB288463 |
US $3.42 |
||
|
41999
|
41999
MB809342 BOLT, RR SUSP LWR ARMFlange,12x77 |
MB809342 |
from US $7.52 |
||
