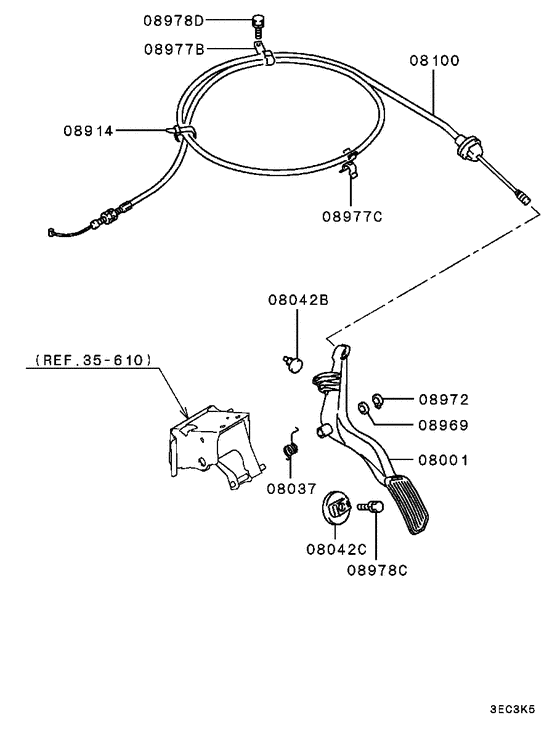

Engine control (RHD) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- EL(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- EL
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MB539798
ARM,ACCEL PEDAL
|
MB539798 |
— | ||
|
08037
|
08037
MB539803
SPRING,ACCEL PEDAL ARM RETURN
|
MB539803 |
— | ||
|
08042C
|
08042C
MB844837
STOPPER,ACCEL PEDAL ARM
|
MB844837 |
— | ||
|
08100
|
08100
MB539808
CABLE,ACCEL
|
MB539808 |
— | ||
|
08914
|
08914
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
08969
|
08969
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
08972
|
08972
MF522405 SNAP RING, ROCKER COVER7 |
MF522405 |
US $1.48 |
||
|
08978C
|
08978C
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
08978C
|
08978C
MS240402 BOLT, RADIATOR GRILLEWasher assembled,6x20 |
MS240402 |
US $3.01 |
||
|
08978D
|
08978D
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
35 610
|
Brake & clutch pedal
35 610
|
||||
|
35 610
|
Brake & clutch pedal
35 610
|
||||
