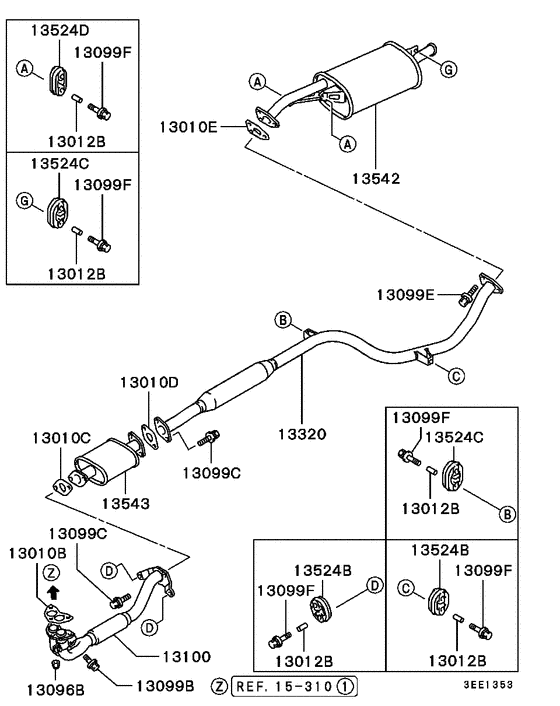

Exhaust pipe & muffler (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- EL(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- EL
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010E
|
13010E
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $6.20 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13099B
|
13099B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099C
|
13099C
MS240116 BOLT, EXHAUST PIPEWasher assembled,12x40 |
MS240116 |
from US $1.81 |
||
|
13099E
|
13099E
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13100
|
13100
MB906134 PIPE, EXHAUST, FR |
MB906134 |
US $786.24 |
||
|
13320
|
13320
MB925124 PIPE, EXHAUST, CTR |
MB925124 |
US $548.91 |
||
|
13524B
|
13524B
MB906128 HANGER, EXHAUST MUFFLER |
MB906128 |
from US $6.20 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB906121 HANGER, EXHAUST MUFFLER |
MB906121 |
US $7.39 |
||
|
13542
|
13542
MB810584 MUFFLER, EXHAUST MAIN |
MB810584 |
US $284.16 |
||
|
13542
|
13542
MR126592 MUFFLER, EXHAUST MAIN |
MR126592 |
US $308.67 |
||
|
13542
|
13542
MR212721 MUFFLER, EXHAUST MAIN |
MR212721 |
US $284.16 |
||
|
13543
|
13543
MB906136 PRE-MUFFLER, EXHAUST |
MB906136 |
US $384.38 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
