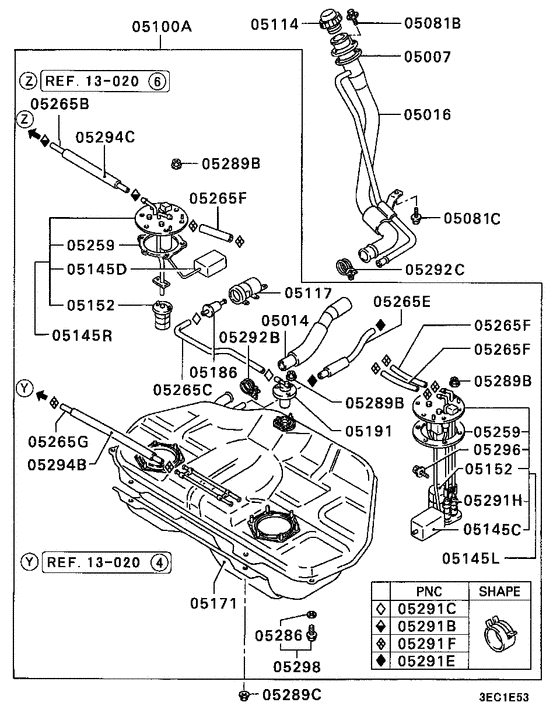

Fuel tank (ALL) Diagram Mitsubishi LANCER
- Year
- 1991 - 1992
- Sales region
- Japan
- Note
- MX SALOON(4WD/DIESEL-TURBO),4FA/T
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- MX SALOON
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MB825265
HOSE, FUEL FILLER
|
MB825265 |
— | ||
|
05016
|
05016
MB678945
NECK, FUEL FILLER
|
MB678945 |
— | ||
|
05081B
|
05081B
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05081B
|
05081B
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05081B
|
05081B
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05081C
|
05081C
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05081C
|
05081C
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05081C
|
05081C
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05081C
|
05081C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
05100A
|
05100A
MB678856 FUEL TANK ASSY |
MB678856 |
US $924.56 |
||
|
05114
|
05114
MB595538
CAP, FUEL TANK
|
MB595538 |
— | ||
| replacement | |||||
|
05114
|
05114
MN120695 CAP, FUEL TANK |
MN120695 |
from US $19.56 |
||
|
05117
|
05117
MB348567 CASE, FUEL TANK BREATHER |
MB348567 |
US $3.70 |
||
|
05145C
|
05145C
MB818740 GAUGE UNIT, FUEL TANK |
MB818740 |
US $202.76 |
||
|
05145D
|
05145D
MB818638 GAUGE UNIT, FUEL TANK |
MB818638 |
US $112.48 |
||
|
05145L
|
05145L
MB912301 PUMP & GAUGE ASSY, FUEL TANK, LH |
MB912301 |
US $227.92 |
||
|
05145R
|
05145R
MB912300 PUMP & GAUGE ASSY, FUEL TANK, RH |
MB912300 |
US $128.76 |
||
|
05152
|
05152
MB129894 FILTER, FUEL IN TANK |
MB129894 |
from US $6.10 |
||
|
05152
|
05152
MB825000 FILTER, FUEL IN TANK |
MB825000 |
US $41.44 |
||
|
05171
|
05171
MB825157 PROTECTOR, FUEL TANK, LWR |
MB825157 |
US $171.68 |
||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05191
|
05191
MB595490
VALVE, FUEL TANK SAFETY
|
MB595490 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05191
|
05191
MB678440
VALVE, FUEL TANK SAFETY
|
MB678440 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05259
|
05259
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05265B
|
05265B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05265C
|
05265C
MB889113 HOSE, FUEL TANK |
MB889113 |
US $6.22 |
||
|
05265E
|
05265E
MB866519
HOSE, FUEL TANK
|
MB866519 |
— | ||
|
05265F
|
05265F
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05265G
|
05265G
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $0.96 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05291F
|
05291F
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05291H
|
05291H
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05292B
|
05292B
MF661022 CLAMP, FUEL TANKD=46 |
MF661022 |
US $2.60 |
||
|
05292C
|
05292C
MS660372
CLAMP, RADIATOR PIPING
|
MS660372 |
— | ||
| replacement | |||||
|
05292C
|
05292C
MH020380
CLIP, COOLING WATER LINE
|
MH020380 |
— | ||
|
05294B
|
05294B
MB032789
TUBE, FUEL RETURN LINE
|
MB032789 |
— | ||
|
05294C
|
05294C
MB329259 TUBE, FUEL RETURN LINESoft vinyl,14.5x165 |
MB329259 |
US $5.47 |
||
| replacement | |||||
|
05294C
|
05294C
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05296
|
05296
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
05298
|
05298
1715A135 PLUG, FUEL TANK8 |
1715A135 |
from US $2.63 |
||
|
