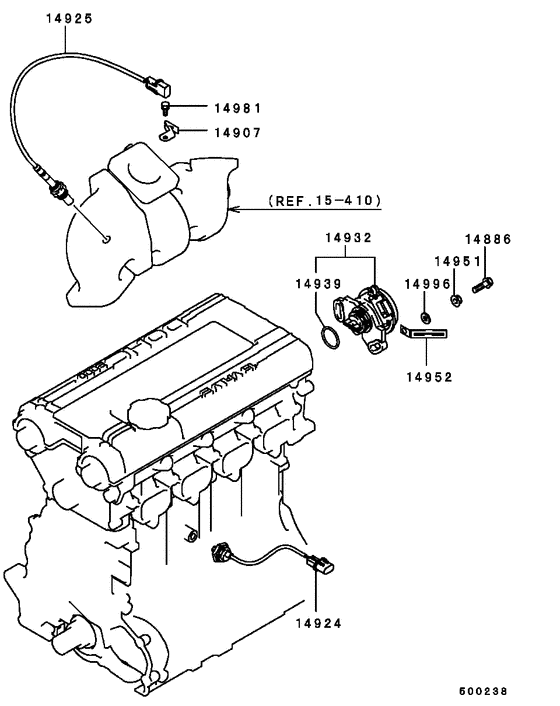

Electrical control (ALL (KNOCK SENSOR,ANGLE SENSOR ETC.)) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- RS EVOLUTION(MPI/4WD),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14886
|
14886
MF140757
BOLT, ALTERNATOR
|
MF140757 |
— | ||
|
14907
|
14907
MD191315 BRACKET, OXYGEN SENSOR CONNECTOR |
MD191315 |
US $10.66 |
||
|
14924
|
14924
MD198158 SENSOR, ENG CONTROL KNOCK |
MD198158 |
US $96.94 |
||
|
14925
|
14925
MD176245 SENSOR, ENG CONTROL OXYGEN |
MD176245 |
US $543.09 |
||
|
14932
|
14932
MD184529 SENSOR, ENG CRANK ANGLE |
MD184529 |
US $827.01 |
||
|
14939
|
14939
MD611831
O-RING, CRANK ANGLE SENSOR
|
MD611831 |
— | ||
| replacement | |||||
|
14939
|
14939
MD619648 O-RING, CRANK ANGLE SENSOR |
MD619648 |
US $4.24 |
||
|
14951
|
14951
MF434114 NUT, DISTRIBUTORFlange,8 |
MF434114 |
US $2.07 |
||
|
14952
|
14952
MS470058 CLIP, ROCKER COVERL=60 |
MS470058 |
from US $1.74 |
||
|
14981
|
14981
MF244224 BOLT, A/C PIPINGWasher assembled,6x16 |
MF244224 |
US $3.28 |
||
|
14996
|
14996
MF450204 WASHER, AIR CLEANERPlain,8 |
MF450204 |
US $2.87 |
||
|
