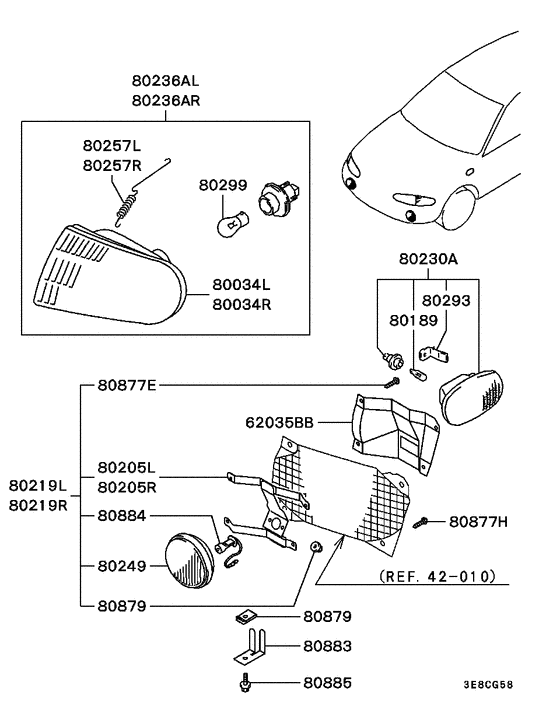

Front exterior lamp (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- RS EVOLUTION(MPI/4WD),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62035BB
|
62035BB
MR108271 NET, FR BUMPER |
MR108271 |
US $130.24 |
||
|
62035BB
|
62035BB
MR108272 NET, FR BUMPER |
MR108272 |
US $130.24 |
||
|
80034L
|
80034L
MB929455 LAMP UNIT, TURN SIGNAL, FR LH |
MB929455 |
US $124.49 |
||
|
80034R
|
80034R
MB929456 LAMP UNIT, TURN SIGNAL, FR RH |
MB929456 |
US $100.64 |
||
|
80189
|
80189
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80205L
|
80205L
MR245369
BRACKET, FR FOG LAMP, LH
|
MR245369 |
— | ||
|
80205R
|
80205R
MR245370
BRACKET, FR FOG LAMP, RH
|
MR245370 |
— | ||
|
80219L
|
80219L
MB959735 LAMP KIT, FOG, FR LH12v-55w |
MB959735 |
US $537.26 |
||
|
80219R
|
80219R
MB959736 LAMP KIT, FOG, FR RH12v-55w |
MB959736 |
US $537.26 |
||
|
80230A
|
80230A
MB821171 LAMP ASSY, SIDE TURN SIGNAL, FR12v-5w |
MB821171 |
US $34.88 |
||
|
80236AL
|
80236AL
MB821041 LAMP ASSY, TURN SIGNAL, FR LH12v-21w |
MB821041 |
US $125.80 |
||
|
80236AR
|
80236AR
MB821042 LAMP ASSY, TURN SIGNAL, FR RH12v-21w |
MB821042 |
US $125.80 |
||
|
80249
|
80249
MR221969 LAMP UNIT, FOG, FR |
MR221969 |
US $460.10 |
||
|
80257L
|
80257L
MB929459 SPRING, FR COMBINATION LAMP, LH |
MB929459 |
US $6.96 |
||
|
80257R
|
80257R
MB929460 SPRING, FR COMBINATION LAMP, RH |
MB929460 |
US $6.96 |
||
|
80293
|
80293
MB859363 HOOK, CORNERING LAMP |
MB859363 |
US $4.44 |
||
|
80299
|
80299
MS820044
BULB, RR END PANEL GARNISH
|
MS820044 |
— | ||
| replacement | |||||
|
80299
|
80299
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80877E
|
80877E
MS452028 SCREW, FR BUMPERWasher assembled,5x16 |
MS452028 |
US $4.24 |
||
|
80877H
|
80877H
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
80879
|
80879
MR221970 NUT, FOG LAMP |
MR221970 |
US $3.40 |
||
|
80879
|
80879
MU440009 NUT, RR BUMPERSpring,6 |
MU440009 |
from US $1.68 |
||
|
80883
|
80883
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
80884
|
80884
MS820971
BULB, FR FOG LAMP
|
MS820971 |
— | ||
|
80885
|
80885
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
42 010
|
Front bumper & support
42 010
|
||||
