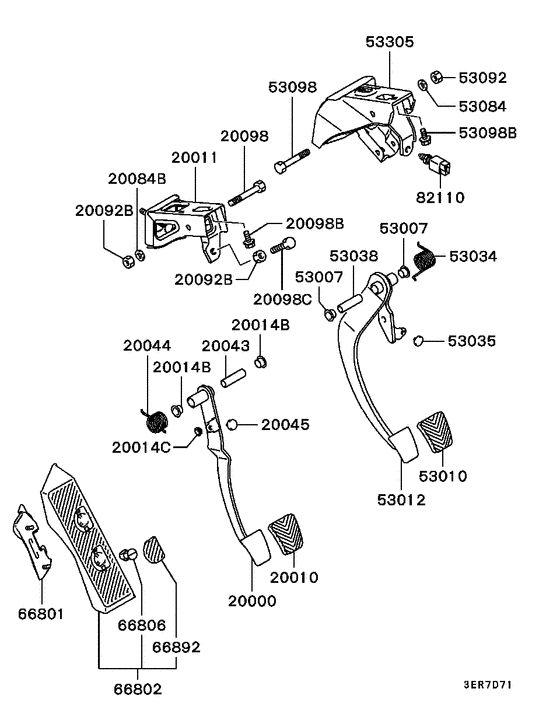

Brake & clutch pedal (LHD..M/T) Diagram Mitsubishi LANCER
- Year
- 1997 - 2000
- Sales region
- EUR
- Note
- GLX(D3),5FM/T GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR198843
PEDAL,CLUTCH
|
MR198843 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20011
|
20011
MR235331 BRACKET, CLUTCH PEDAL |
MR235331 |
US $39.96 |
||
|
20014B
|
20014B
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20043
|
20043
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
20044
|
20044
MR235337 SPRING, CLUTCH PEDAL RETURN |
MR235337 |
US $5.33 |
||
|
20045
|
20045
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
20098B
|
20098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20098C
|
20098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
53007
|
53007
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MR198842
PEDAL,BRAKE
|
MR198842 |
— | ||
|
53034
|
53034
MR103616 SPRING, BRAKE PEDAL RETURN |
MR103616 |
US $6.29 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53038
|
53038
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
53084
|
53084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098
|
53098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53305
|
53305
MR235065
MEMBER,PEDAL SUPPORT
|
MR235065 |
— | ||
|
66801
|
66801
MR241289
BRACKET,FOOTREST
|
MR241289 |
— | ||
|
66802
|
66802
MR201426
FOOTREST
|
MR201426 |
— | ||
|
66806
|
66806
MR190315 CLIP, FOOTREST |
MR190315 |
US $3.15 |
||
|
66892
|
66892
MR206570 PLUG, FOOTREST |
MR206570 |
from US $4.21 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
|
82110
|
82110
MR329967 SWITCH, STOP LAMP |
MR329967 |
from US $10.26 |
