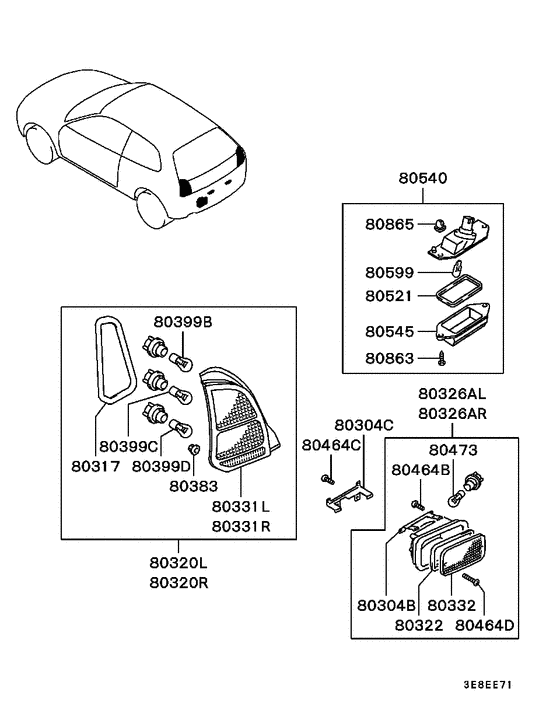

Rear exterior lamp (COMBINATION,LICENSE PLATE LAMP ETC.) Diagram Mitsubishi LANCER
- Year
- 1997 - 2000
- Sales region
- EUR
- Note
- GLX(D3),5FM/T GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80304B
|
80304B
MR300067
BRACKET,RR FOG LAMP
|
MR300067 |
— | ||
|
80304C
|
80304C
MR192123
BRACKET,RR FOG LAMP
|
MR192123 |
— | ||
|
80317
|
80317
MR221881 GASKET, RR COMBINATION LAMP |
MR221881 |
US $13.47 |
||
|
80320L
|
80320L
MR273423
LAMP KIT,COMBINATION,RR LH
|
MR273423 |
— | ||
|
80320L
|
80320L
MR414135
LAMP KIT,COMBINATION,RR LH
|
MR414135 |
— | ||
|
80320R
|
80320R
MR273424
LAMP KIT,COMBINATION,RR RH
|
MR273424 |
— | ||
|
80320R
|
80320R
MR414136
LAMP KIT,COMBINATION,RR RH
|
MR414136 |
— | ||
|
80322
|
80322
MR300064
GASKET,RR FOG LAMP LENS
|
MR300064 |
— | ||
|
80326AL
|
80326AL
MR192121
LAMP ASSY,FOG,RR LH
|
MR192121 |
— | ||
|
80331L
|
80331L
MR221879
LAMP UNIT,COMBINATION,RR LH
|
MR221879 |
— | ||
|
80331L
|
80331L
MR388345
LAMP UNIT,COMBINATION,RR LH
|
MR388345 |
— | ||
|
80331R
|
80331R
MR221880
LAMP UNIT,COMBINATION,RR RH
|
MR221880 |
— | ||
|
80331R
|
80331R
MR388346
LAMP UNIT,COMBINATION,RR RH
|
MR388346 |
— | ||
|
80332
|
80332
MR191025
LENS,RR FOG LAMP
|
MR191025 |
— | ||
|
80383
|
80383
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80399B
|
80399B
MS820040 BULB, RR END PANEL GARNISH12v-21/5w |
MS820040 |
US $4.37 |
||
| replacement | |||||
|
80399B
|
80399B
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80399C
|
80399C
MS820029 BULB, STOP LAMP12v-21w |
MS820029 |
from US $4.79 |
||
|
80399C
|
80399C
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80399D
|
80399D
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80464B
|
80464B
MS450959 SCREW, FLOOR CONSOLE TRIM PLATETapping,5x12 |
MS450959 |
from US $1.48 |
||
|
80464C
|
80464C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
80464D
|
80464D
MB098140 SCREW, FR LAMPTapping,4x16 |
MB098140 |
US $2.81 |
||
|
80473
|
80473
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80521
|
80521
MB596502 GASKET, LICENSE PLATE LAMP LENS |
MB596502 |
from US $1.46 |
||
|
80540
|
80540
MB907254 LAMP KIT, LICENSE PLATE12v-5w |
MB907254 |
US $73.87 |
||
|
80545
|
80545
MB596500 LENS, LICENSE PLATE LAMP |
MB596500 |
from US $2.57 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80863
|
80863
MR221703 SCREW, LICENSE PLATE LAMPTapping,4x14 |
MR221703 |
US $2.60 |
||
|
80865
|
80865
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
||
