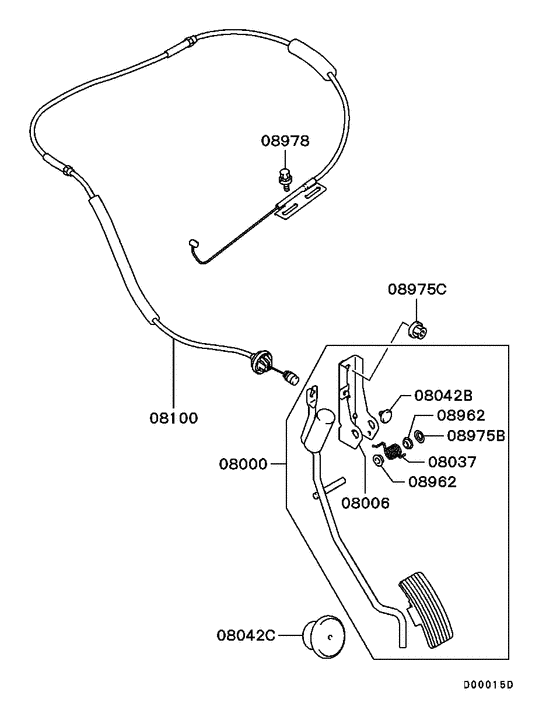

Engine control (LHD) Diagram Mitsubishi LANCER
- Year
- 2003 - 2009
- Sales region
- EUR
- Note
- COMFORT/INVITE(MPI),4FA/T LHD
- transmission
- 4FA/T
- grade
- COMFORT/INVITE
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MR493833
PEDAL,ACCEL
|
MR493833 |
— | ||
|
08006
|
08006
MR527487
BRACKET,ACCEL PEDAL ARM
|
MR527487 |
— | ||
|
08037
|
08037
MR527869 SPRING,ACCEL PEDAL ARM RETURN |
MR527869 |
US $15.19 |
||
|
08042B
|
08042B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
08042C
|
08042C
MR527100 STOPPER, ACCEL PEDAL ARM |
MR527100 |
from US $4.93 |
||
|
08100
|
08100
MR519577
CABLE,ACCEL
|
MR519577 |
— | ||
|
08962
|
08962
MR307081 BUSHING, ACCEL CONTROL EQUIP |
MR307081 |
US $2.87 |
||
|
08975B
|
08975B
MR307082 SNAP RING, ACCEL CONTROL EQUIP |
MR307082 |
US $2.05 |
||
|
08975C
|
08975C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
08978
|
08978
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
