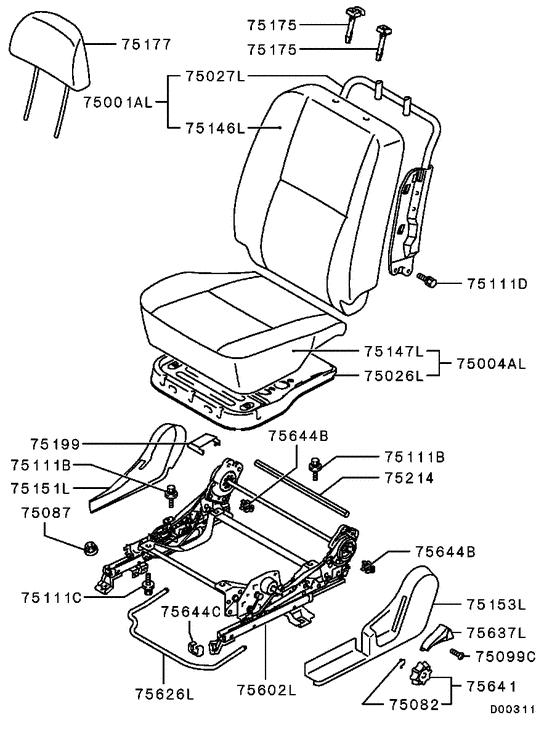

Front seat (LH..COVER&PAD ADHESIVE TYPE) Diagram Mitsubishi LANCER
- Year
- 2001 - 2005
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL(MPI),5FM/T
- transmission
- 5FM/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MN162390HA BACK ASSY, FR SEAT, LH |
MN162390HA |
US $617.34 |
||
|
75001AL
|
75001AL
MN162390HB BACK ASSY, FR SEAT, LH |
MN162390HB |
US $617.34 |
||
|
75001AL
|
75001AL
MR637401 BACK ASSY, FR SEAT, LH |
MR637401 |
US $679.95 |
||
|
75001AL
|
75001AL
MR639996 BACK ASSY, FR SEAT, LH |
MR639996 |
US $679.95 |
||
|
75004AL
|
75004AL
MN162385HA CUSHION ASSY, FR SEAT, LH |
MN162385HA |
US $748.38 |
||
|
75004AL
|
75004AL
MN162385HB CUSHION ASSY, FR SEAT, LH |
MN162385HB |
US $748.38 |
||
|
75004AL
|
75004AL
MR639994 CUSHION ASSY, FR SEAT, LH |
MR639994 |
US $679.95 |
||
|
75004AL
|
75004AL
MR639995 CUSHION ASSY, FR SEAT, LH |
MR639995 |
US $679.95 |
||
|
75026L
|
75026L
MR524258 FRAME, FR SEAT CUSHION, LH |
MR524258 |
US $176.12 |
||
|
75027L
|
75027L
MR966691 FRAME, FR SEAT BACK, LH |
MR966691 |
US $176.12 |
||
|
75082
|
75082
MB916447 SNAP RING, FR SEAT |
MB916447 |
from US $1.15 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75099C
|
75099C
MR562118 SCREW, FR SEAT |
MR562118 |
US $2.37 |
||
|
75111B
|
75111B
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111C
|
75111C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
75111D
|
75111D
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
75146L
|
75146L
MN162421HA COVER, FR SEAT BACK, LHW/pad |
MN162421HA |
US $578.03 |
||
|
75146L
|
75146L
MN162421HB COVER, FR SEAT BACK, LHW/pad |
MN162421HB |
US $578.03 |
||
|
75146L
|
75146L
MR637417 COVER, FR SEAT BACK, LH |
MR637417 |
US $350.90 |
||
|
75146L
|
75146L
MR639999 COVER, FR SEAT BACK, LH |
MR639999 |
US $350.90 |
||
|
75147L
|
75147L
MN162415HA COVER, FR SEAT CUSHION, LHW/pad |
MN162415HA |
US $578.03 |
||
|
75147L
|
75147L
MN162415HB COVER, FR SEAT CUSHION, LHW/pad |
MN162415HB |
US $578.03 |
||
|
75147L
|
75147L
MR639997 COVER, FR SEAT CUSHION, LH |
MR639997 |
US $350.90 |
||
|
75147L
|
75147L
MR639998 COVER, FR SEAT CUSHION, LH |
MR639998 |
US $350.90 |
||
|
75151L
|
75151L
MR619911 COVER, FR SEAT HINGE, LH |
MR619911 |
US $30.34 |
||
|
75151L
|
75151L
MR648778 COVER, FR SEAT HINGE, LH |
MR648778 |
US $30.34 |
||
|
75153L
|
75153L
MR619905 COVER, FR SEAT SIDE SHIELD, LH |
MR619905 |
US $49.58 |
||
|
75153L
|
75153L
MR648776 COVER, FR SEAT SIDE SHIELD, LH |
MR648776 |
US $49.58 |
||
|
75175
|
75175
MR619887 GUIDE, FR SEAT HEADRESTW/lock |
MR619887 |
US $9.62 |
||
|
75175
|
75175
MR619889 GUIDE, FR SEAT HEADREST |
MR619889 |
US $9.62 |
||
|
75175
|
75175
MR647730 GUIDE, 2ND SEAT HEADRESTW/lock |
MR647730 |
US $9.62 |
||
|
75175
|
75175
MR647731 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR647731 |
US $9.62 |
||
|
75177
|
75177
MR626250 HEADREST, FR SEAT |
MR626250 |
US $189.44 |
||
|
75177
|
75177
MR637385 HEADREST, FR SEAT |
MR637385 |
US $189.44 |
||
|
75177
|
75177
MR648772 HEADREST, FR SEAT |
MR648772 |
US $189.44 |
||
|
75177
|
75177
MR648799 HEADREST, FR SEAT |
MR648799 |
US $189.44 |
||
|
75199
|
75199
MR619892 COVER, FR SEAT ANCHOR, RR |
MR619892 |
US $2.52 |
||
|
75199
|
75199
MR644734 COVER, FR SEAT ANCHOR |
MR644734 |
US $2.52 |
||
|
75214
|
75214
MR378798 PROTECTOR, FR SEAT FRAME |
MR378798 |
US $3.11 |
||
|
75602L
|
75602L
MN177957 ADJUSTER, FR SEAT HEIGHT, LH |
MN177957 |
US $388.75 |
||
|
75602L
|
75602L
MR524828 ADJUSTER, FR SEAT HEIGHT, LH |
MR524828 |
US $471.74 |
||
|
75626L
|
75626L
MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MR501771 |
US $27.38 |
||
|
75637L
|
75637L
MR632412 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR632412 |
US $5.92 |
||
|
75637L
|
75637L
MR648780 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR648780 |
US $5.92 |
||
|
75641
|
75641
MR619898 KNOB, FR SEAT HEIGHT ADJUSTER |
MR619898 |
US $5.77 |
||
|
75641
|
75641
MR648771 KNOB, FR SEAT HEIGHT ADJUSTER |
MR648771 |
US $5.77 |
||
|
75644B
|
75644B
MR562566 CAP, FR SEAT SLIDE ADJUSTER |
MR562566 |
US $6.16 |
||
|
75644C
|
75644C
6921A092 CAP, FR SEAT SLIDE ADJUSTER |
6921A092 |
US $2.96 |
