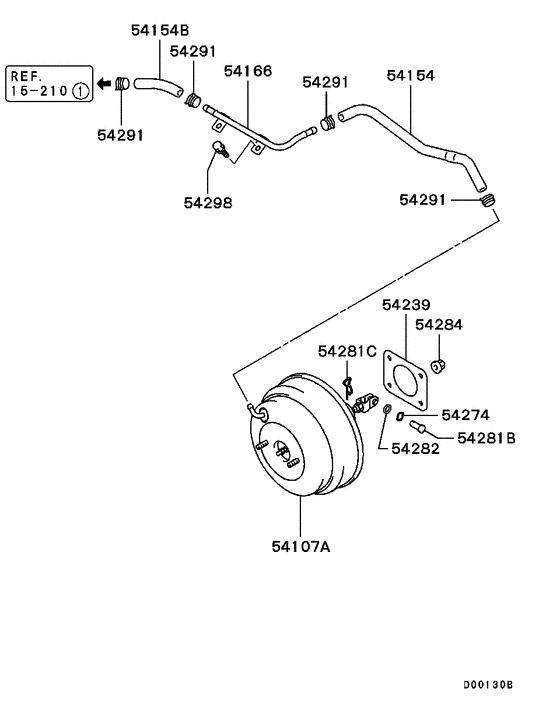

Power brake booster (ALL) Diagram Mitsubishi LANCER
- Year
- 2003 - 2004
- Sales region
- MMNA
- Note
- RA/E,4FA/T FED
- transmission
- 4FA/T
- grade
- RA/E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54107A
|
54107A
MR527618
BOOSTER ASSY,BRAKE
|
MR527618 |
— | ||
|
54154
|
54154
MN102845
HOSE,BRAKE BOOSTER VACUUM
|
MN102845 |
— | ||
|
54154B
|
54154B
4635A012 HOSE, BRAKE BOOSTER VACUUMRubber,130 |
4635A012 |
US $7.25 |
||
|
54154B
|
54154B
MB699248
HOSE,BRAKE BOOSTER VACUUM
|
MB699248 |
— | ||
| replacement | |||||
|
54154B
|
54154B
4635A012 HOSE, BRAKE BOOSTER VACUUMRubber,130 |
4635A012 |
US $7.25 |
||
|
54166
|
54166
MN102899
PIPE,BRAKE BOOSTER VACUUM
|
MN102899 |
— | ||
|
54239
|
54239
MB928711 SEAL, BRAKE BOOSTER BODY |
MB928711 |
from US $3.26 |
||
|
54274
|
54274
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
54281B
|
54281B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
54281C
|
54281C
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
54282
|
54282
MF520005 O-RING, ENG OIL FILLERD=10 |
MF520005 |
from US $1.50 |
||
|
54284
|
54284
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54291
|
54291
MB058828 CLIP, BRAKE BOOSTER16 |
MB058828 |
from US $1.35 |
||
|
54298
|
54298
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
