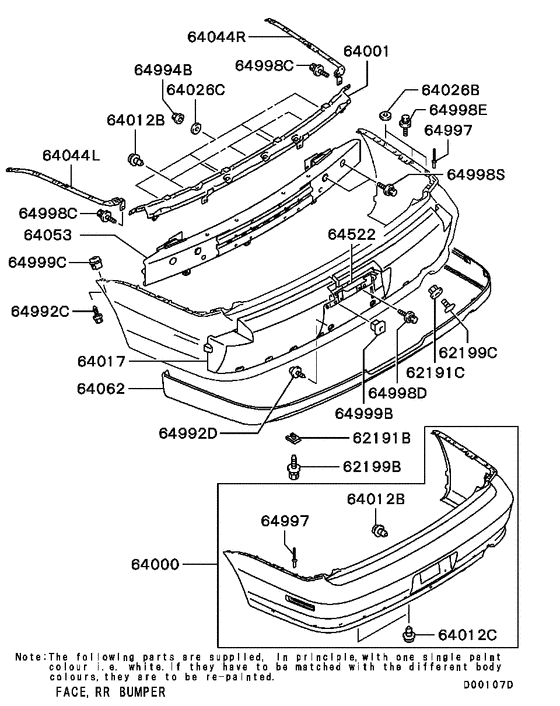

Rear bumper & support (ALL) Diagram Mitsubishi LANCER
- Year
- 2003 - 2004
- Sales region
- MMNA
- Note
- RA/E,4FA/T FED
- transmission
- 4FA/T
- grade
- RA/E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62191B
|
62191B
MU440009 NUT, RR BUMPERSpring,6 |
MU440009 |
from US $1.68 |
||
|
62191C
|
62191C
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
62199B
|
62199B
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
|
62199C
|
62199C
MB908442 BOLT, FR BUMPER6x13 |
MB908442 |
from US $1.07 |
||
|
64000
|
64000
MN186356BA
FACE KIT,RR BUMPER
|
MN186356BA |
— | ||
|
64000
|
64000
MN186356HA
FACE KIT,RR BUMPER
|
MN186356HA |
— | ||
|
64000
|
64000
MN186356RA
FACE KIT,RR BUMPER
|
MN186356RA |
— | ||
|
64000
|
64000
MN186356WA
FACE KIT,RR BUMPER
|
MN186356WA |
— | ||
|
64000
|
64000
MN186356WB
FACE KIT,RR BUMPER
|
MN186356WB |
— | ||
|
64000
|
64000
MN186356XA
FACE KIT,RR BUMPER
|
MN186356XA |
— | ||
|
64000
|
64000
MN186356YA
FACE KIT,RR BUMPER
|
MN186356YA |
— | ||
|
64001
|
64001
MN126691 REINFORCEMENT, RR BUMPER |
MN126691 |
US $146.52 |
||
|
64012B
|
64012B
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
64012C
|
64012C
MU488006 CLIP, ENG ROOM COVER8 |
MU488006 |
from US $0.68 |
||
|
64017
|
64017
MN126689 CORE,RR BUMPER |
MN126689 |
US $216.08 |
||
|
64026B
|
64026B
MB480177 66977 |
MB480177 |
US $3.83 |
||
|
64026B
|
64026B
MR396855 GASKET, RR BUMPER |
MR396855 |
US $2.05 |
||
|
64026C
|
64026C
MA156028 GASKET, FR BUMPER25 |
MA156028 |
US $4.38 |
||
|
64044L
|
64044L
MR557305 PLATE, RR BUMPER, UPR LH |
MR557305 |
US $25.90 |
||
|
64044R
|
64044R
MR557306 PLATE, RR BUMPER, UPR RH |
MR557306 |
US $25.90 |
||
|
64053
|
64053
MN175829 REINFORCEMENT, RR BUMPER FACE SUPPORT, CTR |
MN175829 |
US $492.13 |
||
|
64062
|
64062
MN154913BA AIR DAM, RR BUMPER |
MN154913BA |
US $548.91 |
||
|
64062
|
64062
MN154913HA AIR DAM, RR BUMPER |
MN154913HA |
US $548.91 |
||
|
64062
|
64062
MN154913RA AIR DAM, RR BUMPER |
MN154913RA |
US $548.91 |
||
|
64062
|
64062
MN154913WA AIR DAM, RR BUMPER |
MN154913WA |
US $548.91 |
||
|
64062
|
64062
MN154913WB AIR DAM, RR BUMPER |
MN154913WB |
US $548.91 |
||
|
64062
|
64062
MN154913XA AIR DAM, RR BUMPER |
MN154913XA |
US $548.91 |
||
|
64062
|
64062
MN154913YA AIR DAM, RR BUMPER |
MN154913YA |
US $548.91 |
||
|
64522
|
64522
MN126781
BRACKET,RR LICENSE PLATE
|
MN126781 |
— | ||
|
64992C
|
64992C
MS452393 SCREW, OVERFENDERWasher assembled,6x20 |
MS452393 |
from US $2.73 |
||
|
64992D
|
64992D
MS452028 SCREW, FR BUMPERWasher assembled,5x16 |
MS452028 |
US $4.24 |
||
|
64994B
|
64994B
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
64997
|
64997
MR473000 RIVET, FR BUMPER4.2 |
MR473000 |
from US $1.64 |
||
|
64998C
|
64998C
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
64998C
|
64998C
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
64998D
|
64998D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
64998E
|
64998E
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.74 |
||
|
64998S
|
64998S
MS240140 BOLT, ENG MOUNTINGWasher assembled,8x25 |
MS240140 |
from US $1.54 |
||
|
64998S
|
64998S
MS240616 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MS240616 |
US $1.78 |
||
|
64999B
|
64999B
MU480007 GROMMET, RR BODY GATE6 |
MU480007 |
US $4.51 |
||
|
64999C
|
64999C
MR393386 GROMMET, FR BUMPER6 |
MR393386 |
from US $1.68 |
