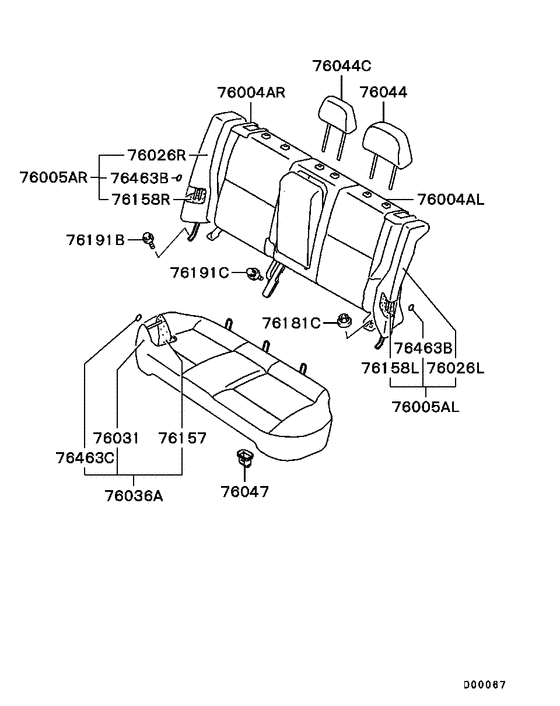

Rear seat (BACK,CUSHION) Diagram Mitsubishi LANCER
- Year
- 2003 - 2004
- Sales region
- MMNA
- Note
- RA/E,4FA/T FED
- transmission
- 4FA/T
- grade
- RA/E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76004AL
|
76004AL
MR979915XA
BACK ASSY,RR SEAT,LH
|
MR979915XA |
— | ||
|
76004AR
|
76004AR
MR979916XA
BACK ASSY,RR SEAT,RH
|
MR979916XA |
— | ||
|
76005AL
|
76005AL
MR979913XA BACK ASSY, RR SEAT SIDE, LH |
MR979913XA |
US $269.36 |
||
|
76005AL
|
76005AL
MR979913XC BACK ASSY, RR SEAT SIDE, LH |
MR979913XC |
US $269.36 |
||
|
76005AR
|
76005AR
MR979914XA BACK ASSY, RR SEAT SIDE, RH |
MR979914XA |
US $269.36 |
||
|
76005AR
|
76005AR
MR979914XC BACK ASSY, RR SEAT SIDE, RH |
MR979914XC |
US $269.36 |
||
|
76026L
|
76026L
MN151353XA COVER, RR SEAT SIDE BACK, LH |
MN151353XA |
US $134.68 |
||
|
76026L
|
76026L
MN151353XC COVER, RR SEAT SIDE BACK, LH |
MN151353XC |
US $134.68 |
||
|
76026R
|
76026R
MN151354XA COVER, RR SEAT SIDE BACK, RH |
MN151354XA |
US $134.68 |
||
|
76026R
|
76026R
MN151354XC COVER, RR SEAT SIDE BACK, RH |
MN151354XC |
US $134.68 |
||
|
76031
|
76031
MN151356XB
COVER,RR SEAT CUSHION
|
MN151356XB |
— | ||
|
76036A
|
76036A
MN124689XB
CUSHION ASSY,RR SEAT
|
MN124689XB |
— | ||
|
76044
|
76044
MR641642 HEADREST, RR SEATSee through type |
MR641642 |
US $189.44 |
||
|
76044C
|
76044C
MN124449XB
HEADREST,RR SEAT
|
MN124449XB |
— | ||
|
76044C
|
76044C
MN124449XC
HEADREST,RR SEAT
|
MN124449XC |
— | ||
|
76047
|
76047
MN162537 HOOK, RR SEAT |
MN162537 |
from US $6.77 |
||
|
76157
|
76157
MN151355
PAD,RR SEAT CUSHION
|
MN151355 |
— | ||
|
76158L
|
76158L
MN151347 PAD, RR SEAT SIDE BACK, LH |
MN151347 |
US $158.36 |
||
|
76158R
|
76158R
MN151348 PAD, RR SEAT SIDE BACK, RH |
MN151348 |
US $158.36 |
||
|
76181C
|
76181C
MR217043 NUT, RR SEAT BELTWasher assembled,7/16 |
MR217043 |
US $1.78 |
||
|
76181C
|
76181C
MU431006 NUT, ENG MOUNTING |
MU431006 |
from US $1.44 |
||
|
76191B
|
76191B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
76191B
|
76191B
MU240146 BOLT, RR SEATWasher assembled,8x25 |
MU240146 |
US $2.07 |
||
|
76191C
|
76191C
MU001251 BOLT, RR SEATM10x37 |
MU001251 |
US $2.37 |
||
|
76191C
|
76191C
MU241027 BOLT, FR SEATWasher assembled,10x37 |
MU241027 |
US $4.38 |
||
|
76463B
|
76463B
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
||
|
76463C
|
76463C
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
