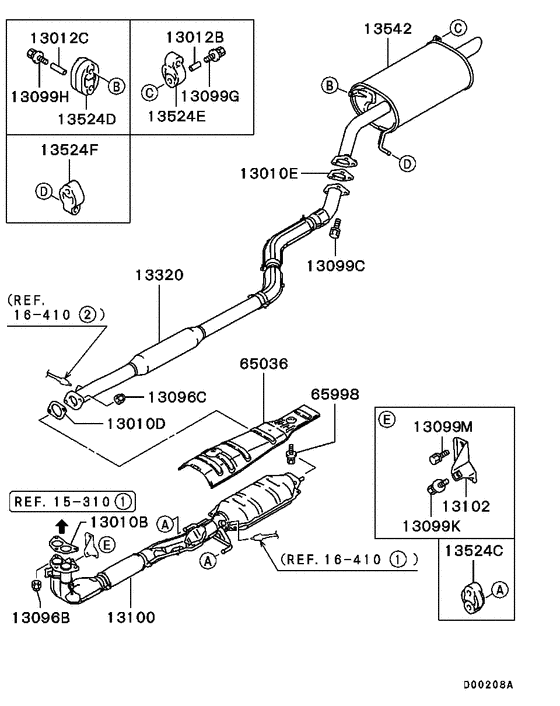

Exhaust pipe & muffler (INTEGRAL TYPE UCC) Diagram Mitsubishi LANCER
- Year
- 2003 - 2006
- Sales region
- MMNA
- Note
- RA/E,4FA/T CANADA
- transmission
- 4FA/T
- grade
- RA/E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.64 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.79 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099C
|
13099C
MU000444 BOLT, EXHAUST PIPEWasher assembled,10x38 |
MU000444 |
from US $1.76 |
||
|
13099G
|
13099G
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099G
|
13099G
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099H
|
13099H
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099K
|
13099K
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099M
|
13099M
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
13099M
|
13099M
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
13100
|
13100
1570A063
PIPE,EXHAUST,FR
|
1570A063 |
— | ||
|
13100
|
13100
MN156569
PIPE,EXHAUST,FR
|
MN156569 |
— | ||
|
13102
|
13102
MR323424
BRACKET,CATALYTIC CONVERTER
|
MR323424 |
— | ||
|
13320
|
13320
MN156747
PIPE,EXHAUST,CTR
|
MN156747 |
— | ||
|
13524C
|
13524C
MR514734 HANGER, EXHAUST MUFFLER |
MR514734 |
from US $10.20 |
||
|
13524D
|
13524D
MR993637 HANGER, EXHAUST MUFFLER |
MR993637 |
from US $13.24 |
||
|
13524E
|
13524E
MR529673 HANGER, EXHAUST MUFFLER |
MR529673 |
from US $9.01 |
||
|
13524F
|
13524F
MR529551 HANGER, EXHAUST MUFFLER |
MR529551 |
US $13.02 |
||
|
13542
|
13542
MN153301
MUFFLER,EXHAUST MAIN
|
MN153301 |
— | ||
|
65036
|
65036
MR435187 PROTECTOR, UNDER FR FLOOR HEAT |
MR435187 |
US $44.40 |
||
|
65036
|
65036
MR516129
PROTECTOR,UNDER FR FLOOR HEAT
|
MR516129 |
— | ||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
