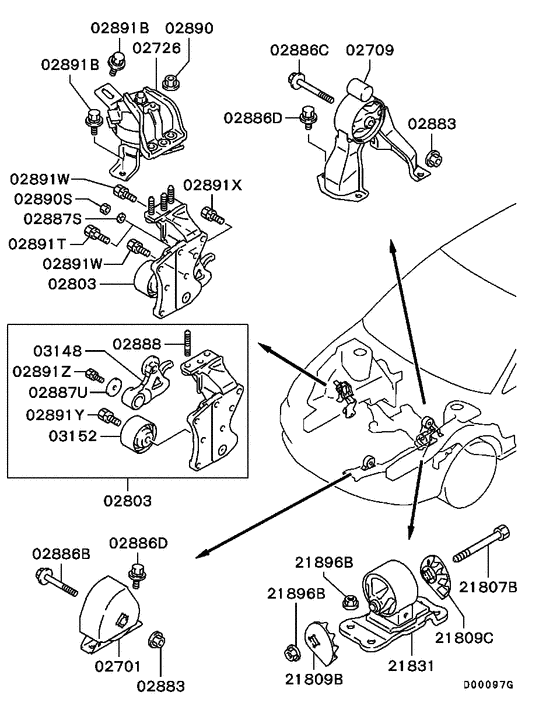

Engine mounting & support (ALL) Diagram Mitsubishi LANCER
- Year
- 2003 - 2008
- Sales region
- EUR
- Note
- SPORT(MPI),5FM/T RHD
- transmission
- 5FM/T
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701
|
02701
MN184251 BRACKET,ENG ROLL STOPPER |
MN184251 |
US $71.06 |
||
|
02709
|
02709
MR961214 BRACKET,ENG RR ROLL STOPPER |
MR961214 |
US $78.21 |
||
|
02726
|
02726
MR455747 INSULATOR, ENG MOUNTING |
MR455747 |
US $180.58 |
||
|
02803
|
02803
1091A061 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
1091A061 |
US $186.48 |
||
|
02803
|
02803
MR984436 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MR984436 |
US $248.64 |
||
| replacement | |||||
|
02803
|
02803
1091A061 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
1091A061 |
US $186.48 |
||
|
02883
|
02883
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02886B
|
02886B
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.40 |
||
|
02886C
|
02886C
MR235604 BOLT, ENG SUPPORT RODFlange,10x94 |
MR235604 |
from US $4.23 |
||
|
02886D
|
02886D
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02886D
|
02886D
MU000343 BOLT, FR SUSP STABILIZERFlange,10x25 |
MU000343 |
from US $1.48 |
||
|
02887S
|
02887S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02887U
|
02887U
MD129421 WASHER, ENG MOUNTINGPlain,8 |
MD129421 |
US $8.21 |
||
|
02888
|
02888
MR984438 STUD, ENG MOUNTING10x35 |
MR984438 |
US $6.51 |
||
|
02890
|
02890
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02890
|
02890
MB288462V
nut
|
MB288462V |
— | ||
|
02890S
|
02890S
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02891B
|
02891B
MS240295 BOLT, RR SUSP STABILIZERWasher assembled,10x25 |
MS240295 |
from US $1.37 |
||
|
02891T
|
02891T
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02891W
|
02891W
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891X
|
02891X
MD194109 BOLT, ENG MOUNTINGW/sealant,10x22 |
MD194109 |
US $3.15 |
||
|
02891Y
|
02891Y
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891Z
|
02891Z
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
03148
|
03148
MD170402 ARM, TIMING BELT TENSIONER |
MD170402 |
US $59.20 |
||
|
03148
|
03148
MN119896 ARM, TIMING BELT TENSIONER |
MN119896 |
from US $44.46 |
||
|
03152
|
03152
MD156604 PULLEY, TIMING BELT IDLER |
MD156604 |
from US $38.63 |
||
|
21807B
|
21807B
MF104928 BOLT, T/M MOUNTING12x110 |
MF104928 |
from US $3.96 |
||
|
21809B
|
21809B
MR197613 STOPPER, T/M MOUNTING |
MR197613 |
from US $6.94 |
||
|
21809C
|
21809C
MR197612 STOPPER, T/M MOUNTING |
MR197612 |
from US $6.94 |
||
|
21831
|
21831
MR491557 BRACKET, T/M MOUNTING BODY SIDE |
MR491557 |
from US $139.11 |
||
|
21831
|
21831
MR961062 BRACKET, T/M MOUNTING BODY SIDE |
MR961062 |
US $96.94 |
||
|
21896B
|
21896B
MF434106 NUT, ENG RR MOUNTINGFlange,12 |
MF434106 |
from US $1.17 |
||
